Fully Automatic USB Soldering Machine Fully Automatic USB Soldering Machine

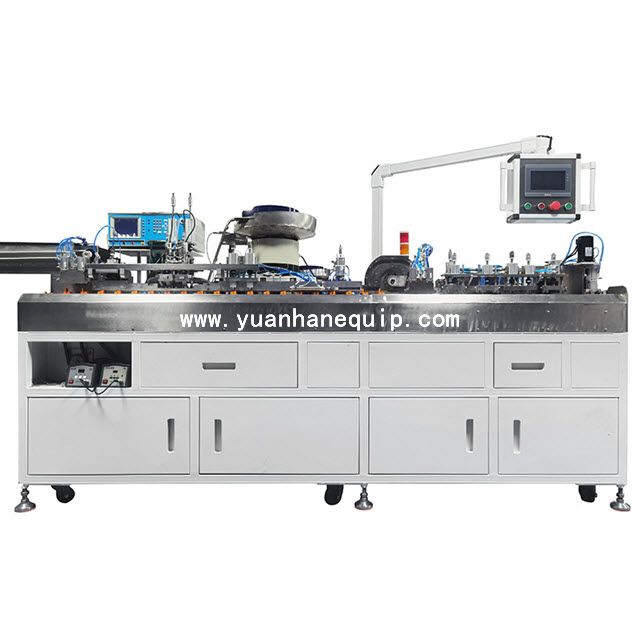

This is a machine for fully automatic production of USB charging cables. It cuts, strips and solders the USB connectors on both ends of the cable. The machine can be started with one key, and the hot and cold peeling can be switched with one key. The production capacity can reach 1200pcs/hour (depending on the cutting length). One worker can operate 5 to 10 machines, which will save you 5-50 workers.

Model:
  • YH-USB22
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Function: cutting, cold and hot stripping, two-ends USB connector soldering

○ Patented technology: automatic color separation, automatic wire separation, integrated hot and cold stripping, automatic testing

○ Capacity: 1200pcs/hour (depending on the cutting length)

Model YH-USB22
Applicable cable 2/3/4-core round cable
Wire diameter 2.8-5.0mm (others need to be customized)
Working speed 1200pcs/hour, and one person can operate 5 to 10 units
Voltage and power 220V AC, 1.2 KW/h
Standard air pressure 0.5-0.8mpa
Noise decibel about 30-45DB
Patented technology automatic color separation, automatic wire separation, integrated hot and cold stripping, automatic testing
Weight about 900kg
Dimensions 3.85m x 0.76m x 1.7m (Length x Width x Height)





×
