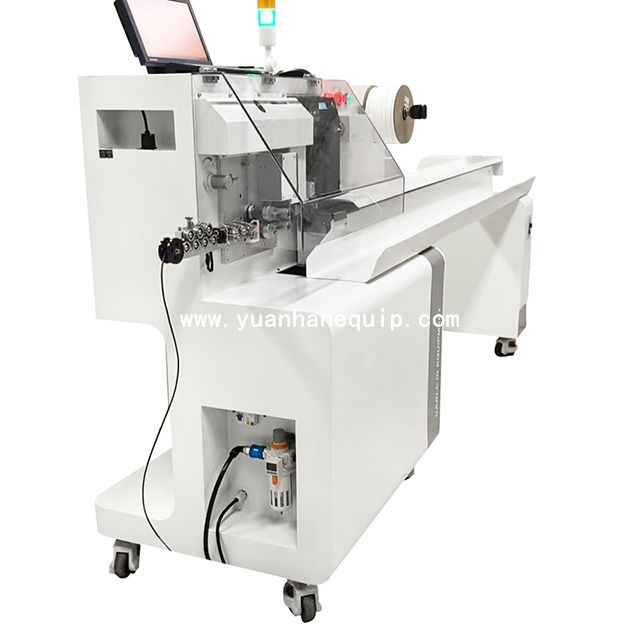

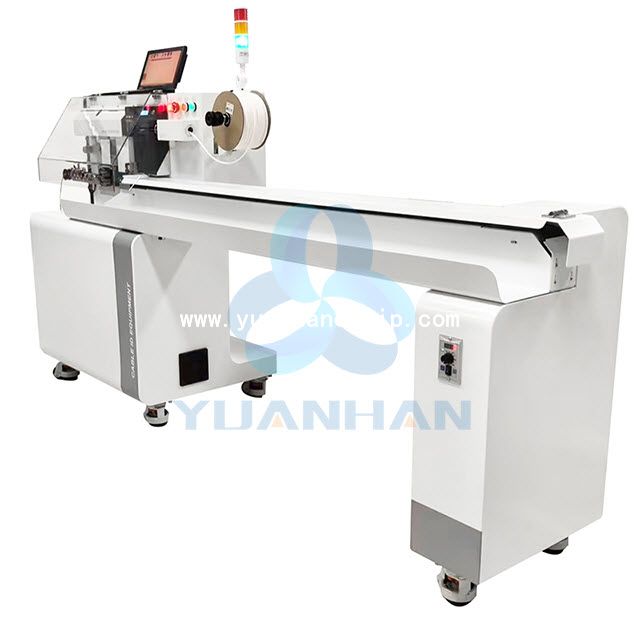

This fully automatic number tube threading machine can realize the following functions : automatic printing , number tube threading, wire cutting and wire stripping. It is suitable for all kinds of complete sets of power distribution cabinets, control cabinets , automobiles, electronics, industrial equipment, rail transportation and other wire harness processing industries.
|
Model:
|
|
|
Brand:
|
|
○ It adopts a self-developed control system, which has stable operation, high efficiency and strong expansion function .
○ It has the functions of automatic numbering, unloading and pipe threading , which can automate the most complicated steps of secondary line processing.
○ Support automatic grouping processing, group accumulation and total accumulation technology .
○ Automatic start and stop function, batch pause and delay time can be set .
○ Machine fault prompt alarm function: the alarm light flashes and the buzzer sounds to indicate the cause of the alarm .
○ Industrial computer operation, simple and efficient ( optional ) .
○ The machine detection function can detect: insufficient air pressure, missing wires, blocked wires, exhausted consumables, and abnormal consumables.
○ Modular structure, easy maintenance .
○ After the characters are edited and the requirements are input through the keyboard (or the data is imported from the computer or USB flash drive), the equipment can be started to start processing.

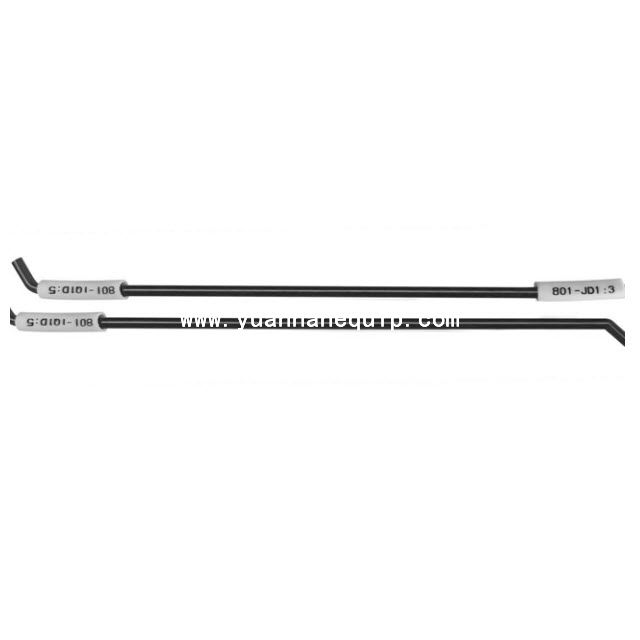

○ Single/double-end number tubes can be installed; number tube length: 15-30mm at both ends.
- 19 characters can be printed within the length of 30mm on the number tube, and double-line printing can be achieved when necessary;
- The difference between the inner diameter of the tube and the outer diameter of the wire: ≤0.4mm.
○ Number tube marking: characters and Chinese characters, the length of the number tube and the positive and negative characters are adjustable .
○ Printing by thermal transfer, the handwriting is clear and not easy to fall off, the ribbon is easy to replace, non-inkjet printing, add preheating function to prevent it from being unable to be used at low temperatures.
|
Model |
YH-CHM4200 |
|
Functions |
automatic printing , number tube threading, wire cutting and wire stripping |
|
Applicable wire diameter |
0.5 mm² -6.0 mm² (Multiple wire diameters without changing mold) |
|
Processing speed |
550 -650 pieces/hour ( depending on the operation mode and wire length ) |
|
Line length range |
70 - 10000 mm |
|
Cutting accuracy |
±1mm (+ set cutting length * 0.002 ) |
|
Control method |
ARM |
|
Detection Capabilities |
Wire missing detection, wire knot detection, number tube inserting detection, air pressure detection |
|
electricity source |
220V 50/60Hz |
|
Compressed air |
0.4Mpa-0.5Mpa (air volume about 130NI/min-180NI/min ) |
|
Reeling machine |
Automatic wire reel |
|
Printing unit |
Equipped with a single printing unit, the first and last number tubes can be printed at one time |
|
Length of tube |
15-30mm (free setting) |
|
Direction of the signal pipe |
The positive and negative directions of the number tube can be freely set, in line with wiring standards |
|
Set number position |
The position of the number tube can be adjusted freely ( one on each side of the line if the line length exceeds 500mm ) |
|
Wire processing |
stripping wire at both ends |
|
Stripping length |
5-15mm |
|
Operating temperature |
-10℃ ~ 45℃ ( Recommended working environment temperature 15℃ ~ 30℃) |
|
Industrial Computer |
Integrated industrial computer |
|
achievement Consumption |
1.5Kw |
|
Dimensions |
Length 2500mm x Width 650mm x Height 1480mm |
