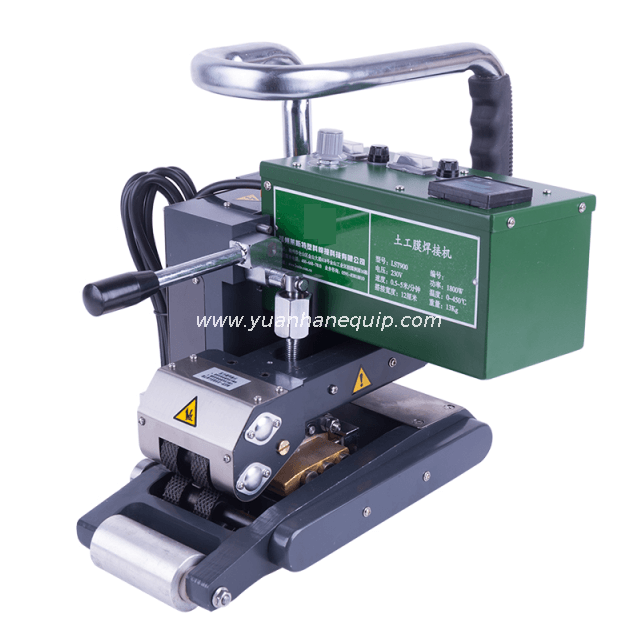

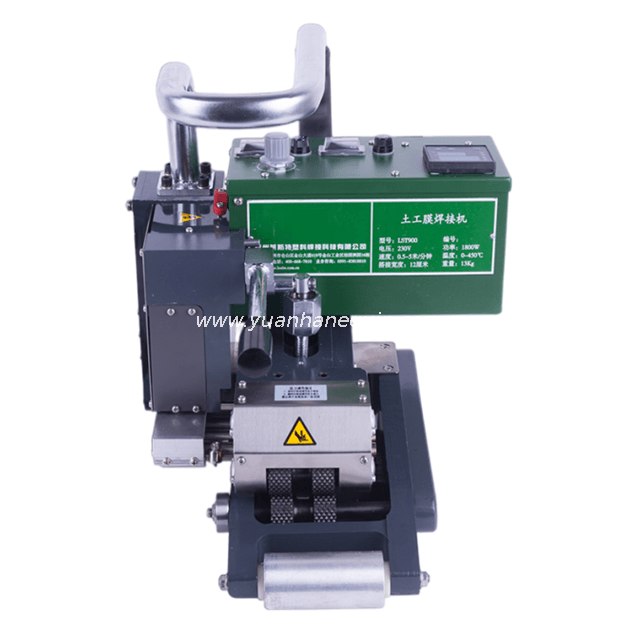

Geomembrane Hot Wedge WelderGeomembrane Hot Wedge Welder

This geomembrane hot wedge welder features high power, high pressure, and fast welding speed. It is suitable for welding 1.0-3.0 mm thick film materials.

Model:
  • YH-CRW900
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • High power, high pressure, and fast welding speed.

  • Suitable for HDPE, LDPE, PVC, EVA, ECB, PP and other hot melt materials.

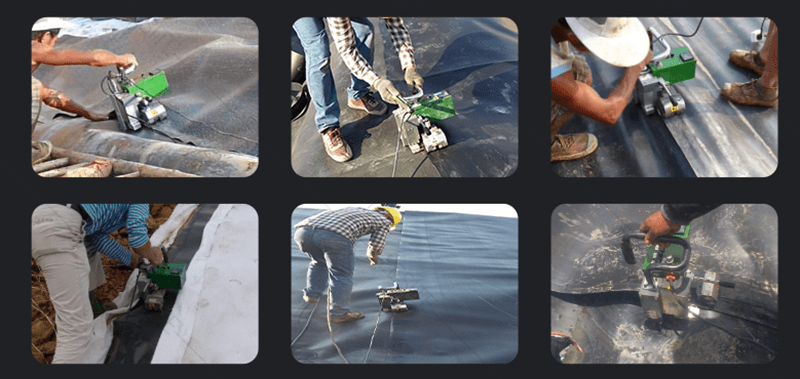

  • Widely used in water conservancy, aquaculture, landfill, chemical mining, sewage treatment, roof construction and other fields of waterproof and seepage engineering.

  • Steel pressure roller available
    Copper hot wedge and steel hot wedge are optional

  • Double hot wedge default and single hot wedge optional

Geomembrane Hot Wedge Welder YH-CRW900

ModelCRW-900
Welding materialPE/PP/PVC/EVA/ECB
Welding material thickness1.0mm-3.0mm(single layer)
Overlap width12cm
Welding speed0.5-10m/min(adjustable)
Welding temperature0-450℃(adjustable
Voltage220V/110V
Power1,800W
Frequency50/60Hz
×
