Geomembrane Welding Machine

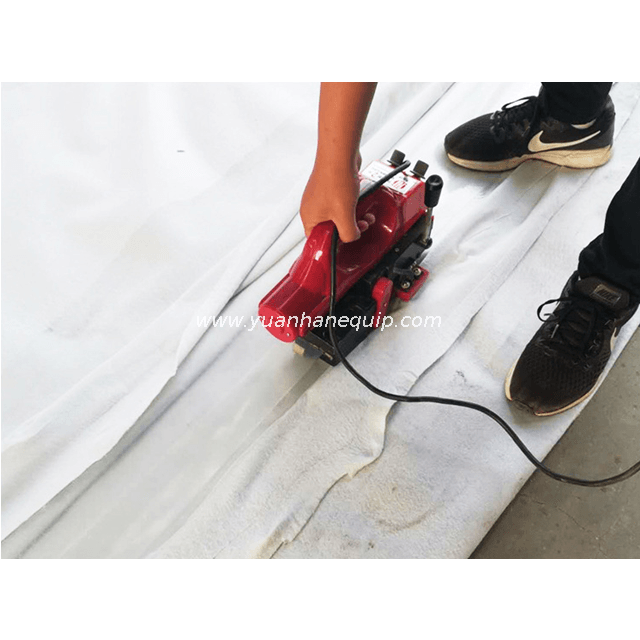

YH-CRW800 is hot wedge welder for welding HDPE, LDPE, EVA, PVC, ECB, PP thermo plastic materials, which is used in waterproofing projects like tunnels, subway, water conservancy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing and so on. For welding membrane with thickness below 1.0 mm, the silica pressure roller is the suitable choice.

Model:
  • YH-CRW800
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • This geomembrane welder is suitable for welding HDPE, LDPE, EVA, PVC, ECB, PP thermo plastic materials.

  • For welding membrane with thickness below 1.0 mm, the silica pressure roller is the suitable choice.

  • For welding membrane with thickness above 1.0mm, the steel pressure roller is the best choice.

  • If the material is PVC, this model can weld from 0.2-2.0mm, and you can choose to assemble it with steel hot wedge.

  • Any customized demands, you can ask us directly. We have professional technicians team.

ModelYH-CRW800
Usagegeomembrane welding
Power800W
Frequency50/60Hz
Voltage110/220V
Temperature0-450 adjustable
Thickness of material0.2mm-1.5mm ( PVC: up to 2.0mm)
Overlap10cm ( can be customized)
Welding width12.5mmx2
Testing channel12mm
Speed0.5-5m/min
Dimensions320(L)*165(W)*205(H)mm
Weight5KG
×
