Kunshan Yuanhan Electronic Equipment Co., Ltd.
Kunshan Yuanhan Electronic Equipment Co., Ltd.

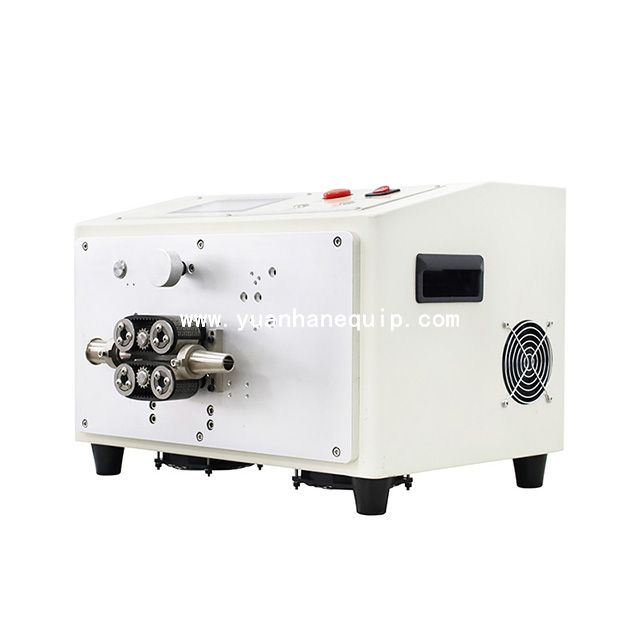

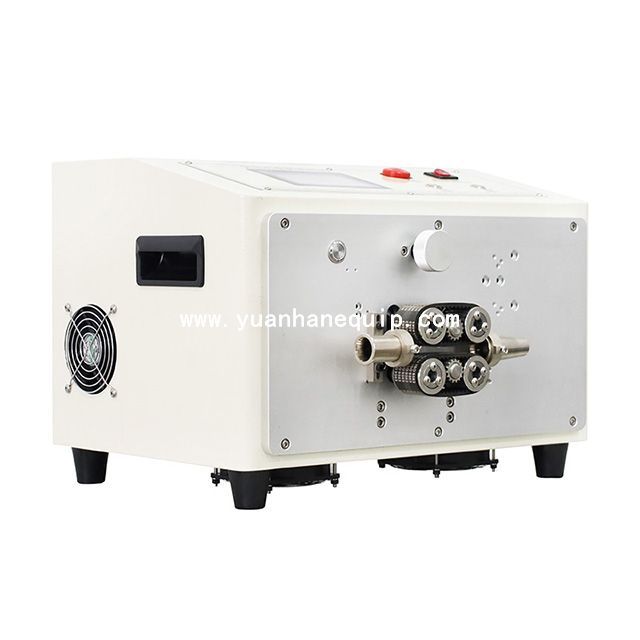

Our wire insertion machines are used to efficiently insert wires into conduits. The machines are designed to streamline the production process by automating the insertion of wires into conduits, saving time and labor costs.
|
Model:
|
|
|
Brand:
|
|
○ Precision engineering design ensures accurate wire insertion;
○ Adjustable settings for a variety of wire and conduit sizes;
○ User-friendly interface for easy operation;
○ Increase productivity and reduce errors during harness assembly.
| Model | YH-CGJ01 |
| Inner diameter of wire conduit | 3-15MM |

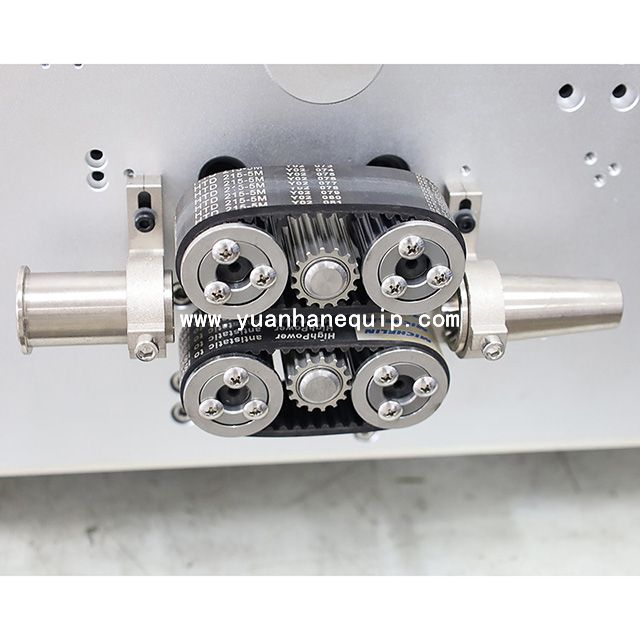

| Drive mode | Track wheel drive |
| Feeding length | 1~99999.9MM |
| Wire pressure adjustment | Pneumatic adjustment |
| Feeding tolerance | 0.002*L MM |
| Pulse equivalent | No error within 5MM |
| Drive motor | Stepper motor |
| Trigger mode | Button or foot switch |
| Function | Automatic advance and retract, one-button threading, foot threading, output setting, timed start, length calibration, etc. |
| Dimensions | 440*420*330 |
| Net weight | 25KG |
