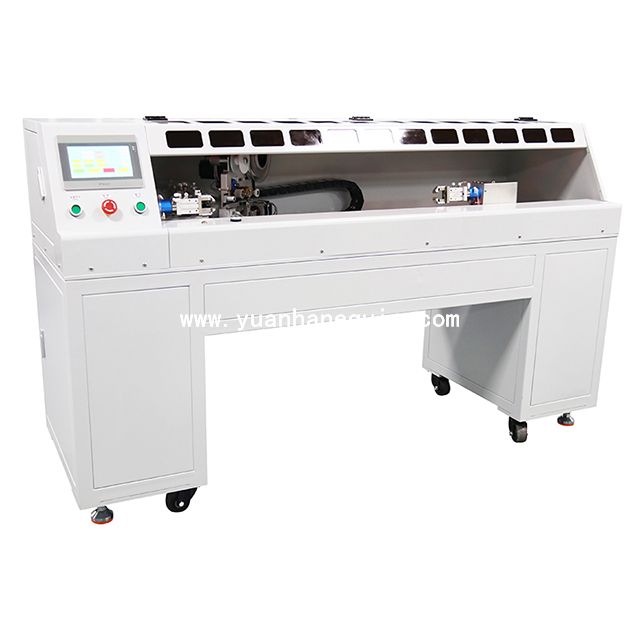

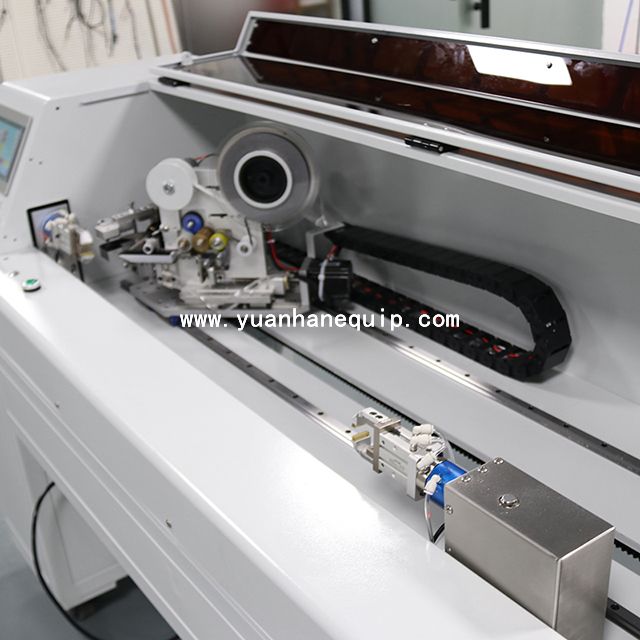

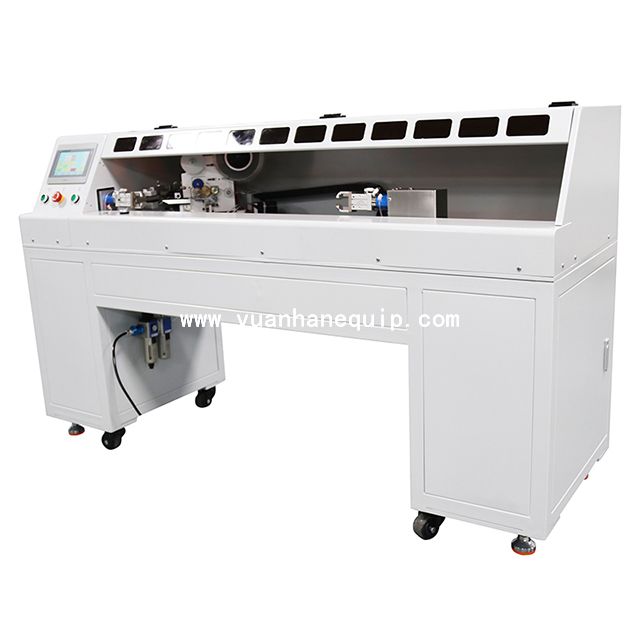

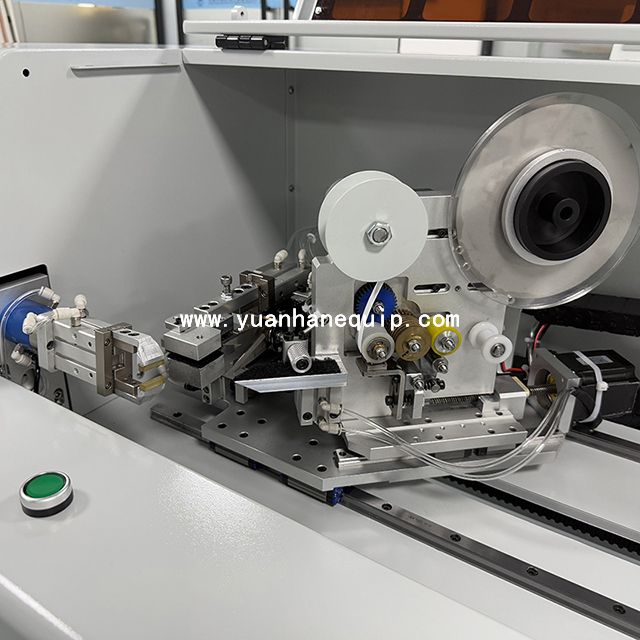

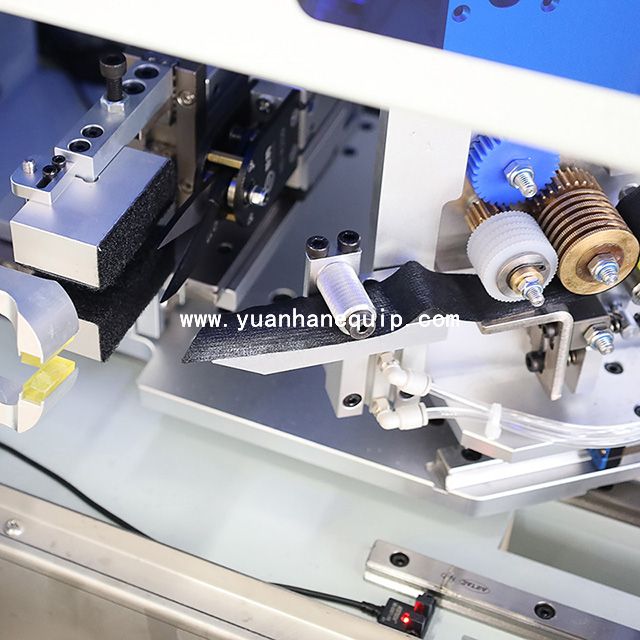

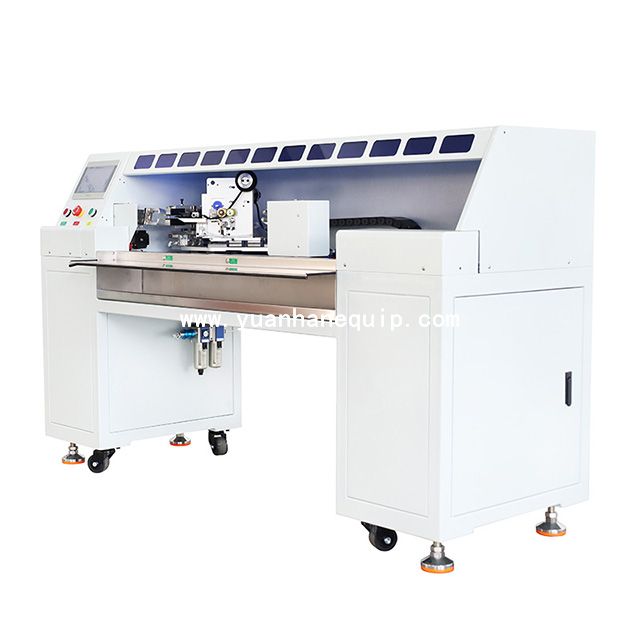

Our fully automatic wire harness tape winding machine is designed to streamline and enhance the wire harness assembly process. This cutting-edge machine is equipped with a range of features to ensure efficiency and precision in tape winding applications.
|
Model:
|
|
|
Brand:
|
|
○ The fully automatic wire harness tape winding machine boasts advanced technology that allows for seamless operation without the need for manual intervention. This not only saves time but also reduces the risk of errors, resulting in a more consistent and reliable end product.
○ With adjustable settings and customizable options, this machine can accommodate a variety of wire harness sizes and configurations. The user-friendly interface makes it easy to program and control the winding process, allowing for quick setup and minimal downtime.
○ In addition, the fully automatic wire harness tape winding machine is built to last, with durable construction and high-quality components that ensure long-lasting performance. Its compact design also makes it easy to integrate into existing production lines, maximizing space efficiency.
|
Model |
YH-850C |
|
Function |
spot winding and continuous winding |
|
Operation mode |
touch screen |
|
Effective winding stroke |
＜1m |
|
Applicable wire diameter |
3-10mm |
|
Tape inner hole size |
Ф38 (other sizes Ф32, Ф76... need to be notified in advance) |
|
Host speed (rpm) |
4500 rpm adjustable |
|
Applicable tape |
PVC, cloth velvet, cloth-based tape, high-temperature tape, more suitable for mica tape, ceramic tape, acetate tape and other tapes with backing paper. |
|
Voltage |
AC220V/DC24V 50/60HZ 110V |
|
Tape outer diameter |
≤110 |
|
Machine mid-range speed |
15 seconds/1 meter wire （fully wrapped） |
|
Machine speed |
0-30 adjustable speed |
|
Machine size |
1800*600*1100mm |
|
Machine gross weight |
260KG |
|
Optional |
add paper collector, add safety grating |
