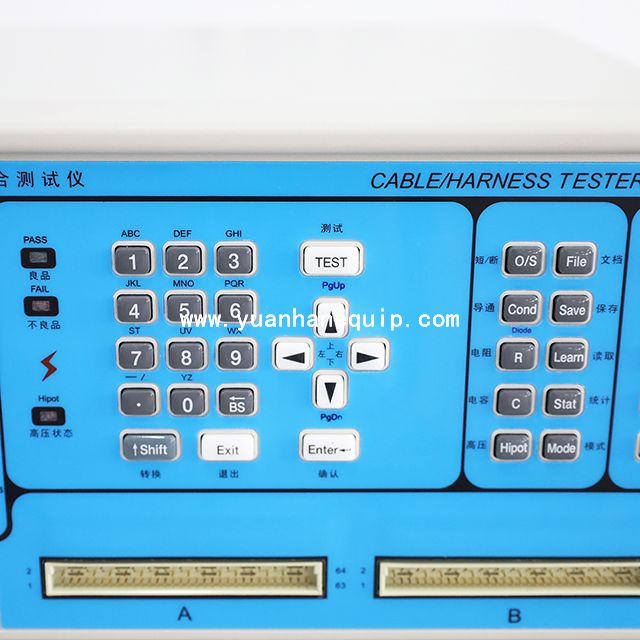

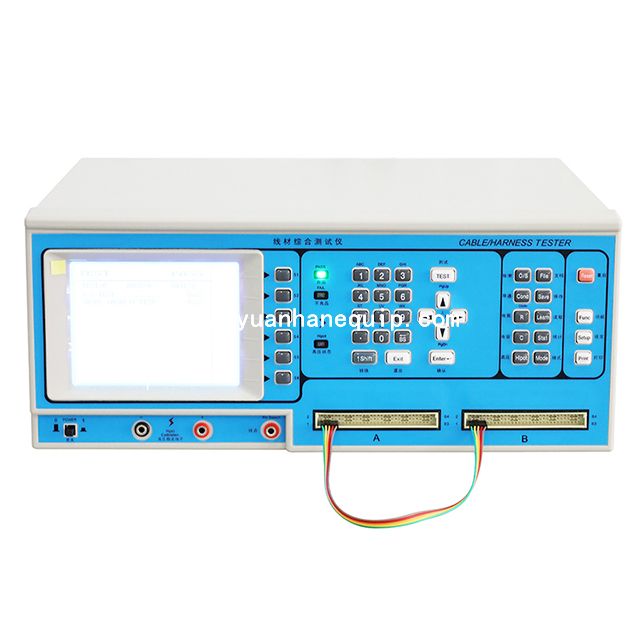

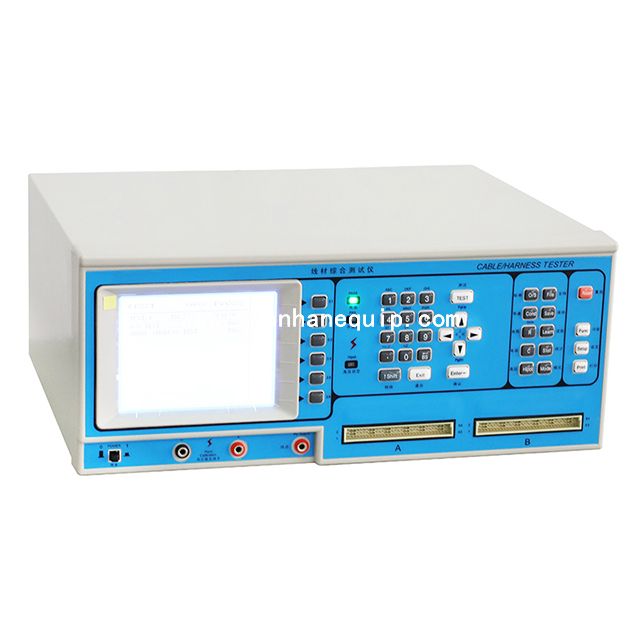

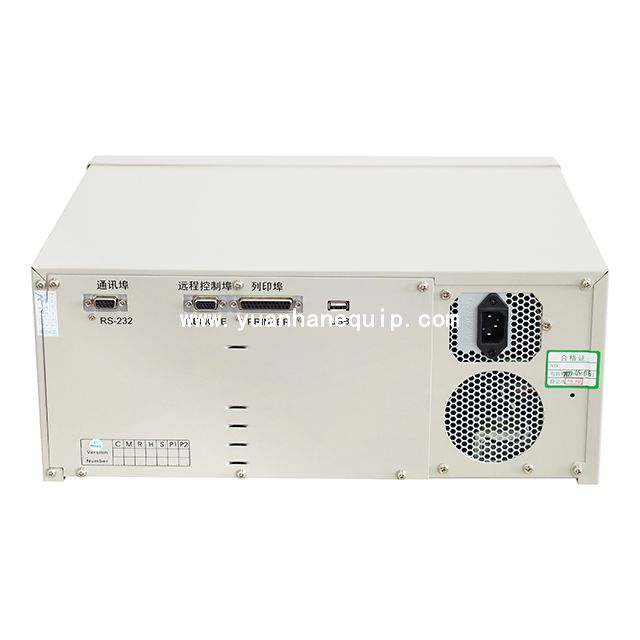

Harness Conduction TesterHarness Conduction Tester

This harness conduction tester provides advanced short circuit, open circuit, dislocation, insulation impedance, conduction impedance and instantaneous short circuit and open circuit tests.

Model:
  • YH-CT8683
Brand:
  • Yuanhan
Share to:
Features
Specifications

○Provides advanced short circuit, open circuit, dislocation, insulation impedance, conduction impedance and instantaneous short circuit and open circuit tests.

○Provides standard, multi-stage, unilateral automatic test and probe point finding functions.

○The system has the functions of automatic scanning and self-test.

○Good and bad products have liquid crystal display and acousto-optic prompts.

Model YH-CT8683
Test points 1-128 points (PIN)
On resistance test 0.1 Ω - 50 Ω
Insulation impedance setting 1m Ω - 1g Ω
Test high voltage dc200 - 700V; AC100 - 500V
Resistance test 0.1 Ω - 1m Ω
Capacitance test 10PF - 500 μ F
Diode test 0.1V - 7.0V



×
