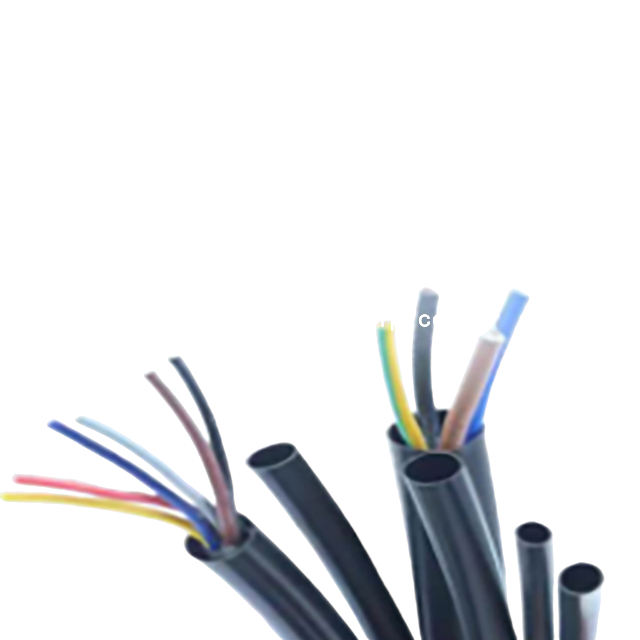

The semi-automatic wire harness threading machine is designed to simplify the process of threading PVC, corrugated and braided tubing for single or multiple wire harnesses. This high-quality machine is ideal for manufacturers looking to increase efficiency and precision on their production lines.
|
Model:
|
|
|
Brand:
|
|
○ Our wire threading machines feature advanced technology and are easy to operate, ensuring consistent and precise threading every time. The semi-automatic feature increases production efficiency while maintaining a high level of control over the threading process.
○ Capable of threading a wide range of tubing types, including PVC, corrugated and braided, this machine offers the versatility and flexibility to meet the needs of different wire harness applications. Whether you are working with a single wire harness or multiple wire harnesses, our machines can handle it with ease.
○ Threading speed: 1 meter/2-3 seconds (excluding loading and unloading)
Reference: Threading 1 meter of pipe can be completed in 2-3 seconds, and loading and unloading depends on the employee's training. 1.2 meters long threading, customer test 460 pieces/hour.
| Model | YH-PVC02 |
| Function | single or multiple wire harnesses threading PVC tubes, corrugated tubes, braided tubes |
| Dimensions |
L1270*W210*H280 (mm) |
| Air source | 0.5mpa |
| Rated power | 400w |
| Power supply | 220V 50HZ |
| Weight | 40kg |
| Automation level | semi-automatic, manual wire laying required |
| Operation mode | CNC human-machine interactive color screen interface (easy to learn, understand and operate) |
