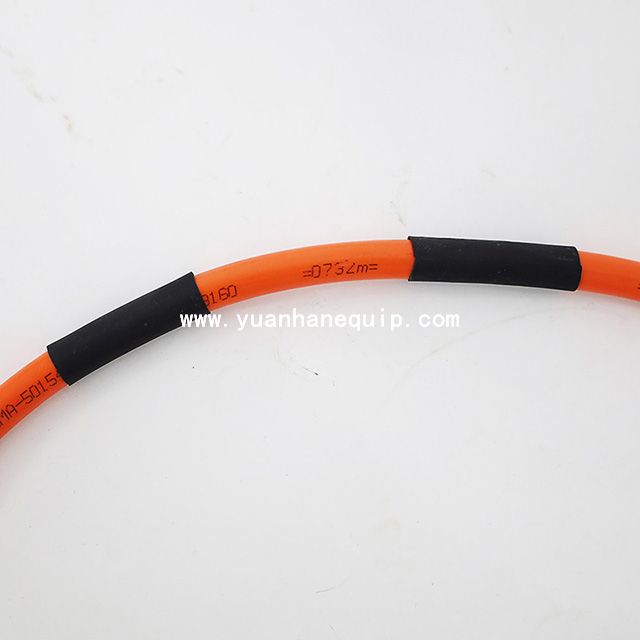

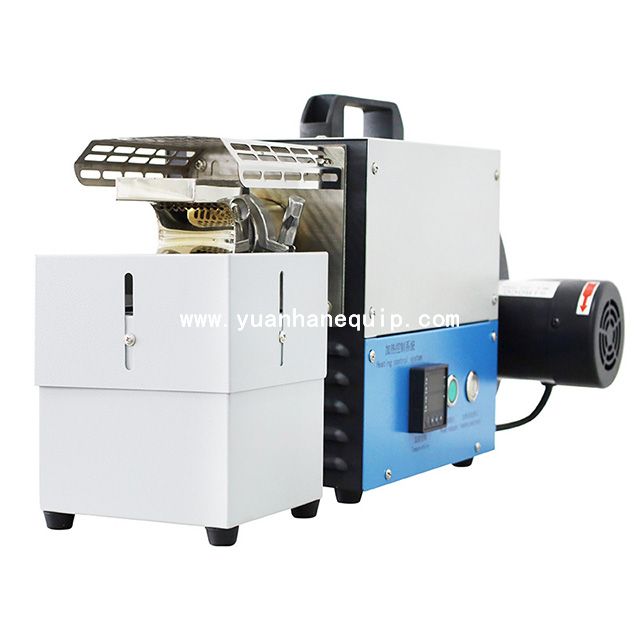

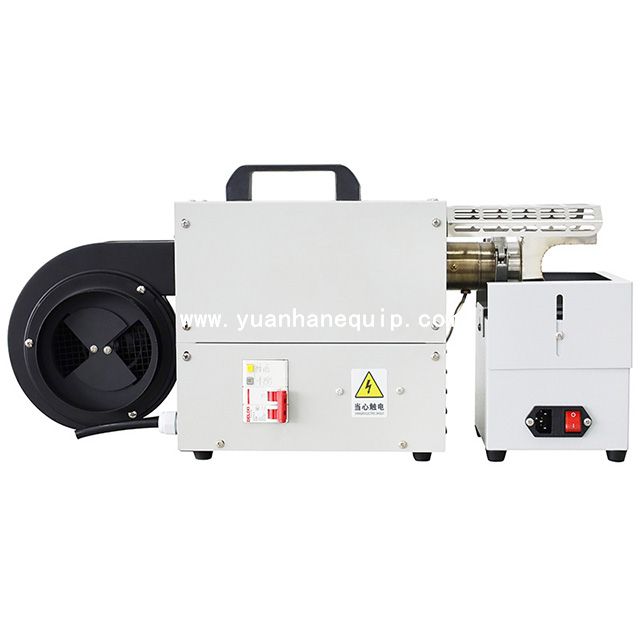

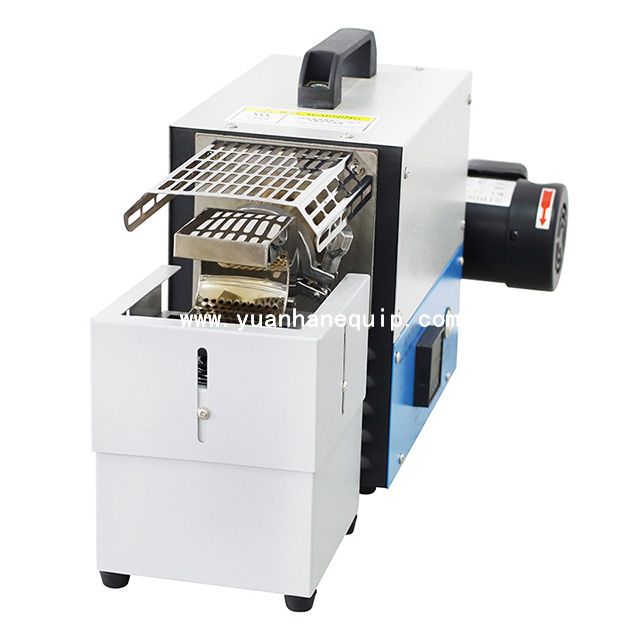

YH-200B-Z heat-shrinkable tube heating machine is suitable for heat-shrinkable PE heat-shrinkable tubes, PVC heat-shrinkable tubes, double-wall adhesive heat-shrinkable tubes, etc., and can be installed on the assembly line.
The air outlet is equipped with a temperature sensor, which can adjust the temperature according to the needs. Temperature control accuracy ±1°C; operating temperature <395°C. Digital display temperature.
Air outlet direction can be adjusted
The air outlet of this machine can blow hot air upwards and downwards, which is convenient to use.
The multi-fiber insulation cotton is insulated from heat, and the sturdy casing is safe and reliable to use, which can effectively maintain high temperature work.
High heat exchange efficiency

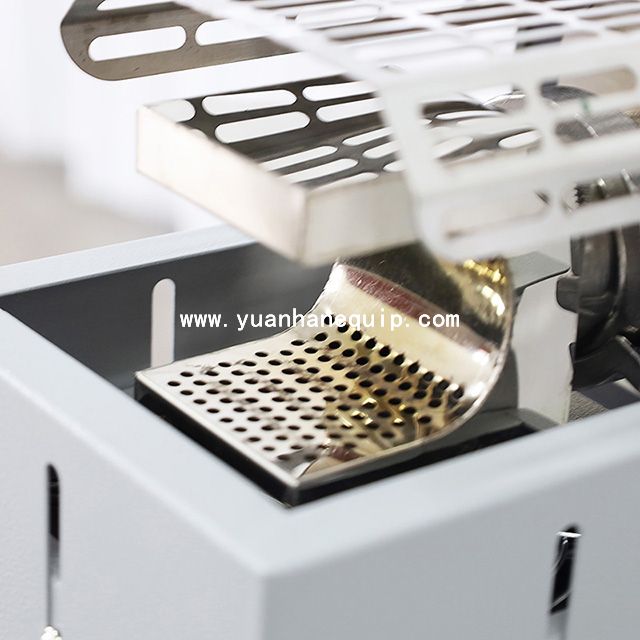

Ingenious wind tunnel design, the air passes through the inside/outside of the spiral heating wire evenly, the heat exchange is nearly 100%, the wind pressure loss is small, and the flow rate is small.
|Package size||(LXWXH) mm:600*290*380|
|Net weight||8.5 KG|
|Gross weight||14.5 KG|
|Curved round mouth diameter||26mm (standard)|
|Extended plum-shaped round mouth diameter||26mm (optional)|
|Straight round mouth diameter||26mm (optional)|
|U-shaped air outlet||optional|
|Single air outlet||standard|
|Insulation design||multi-fiber insulation cotton insulation layer|
|Heating method||resistance wire heating|
|Life||(<350℃) > 10000h|
|Temperature control range|
|Safe use temperature||<395℃|
|Temperature control accuracy||±3℃|
|Power supply||220V, 50Hz|
