Heat Shrink Tube Processing Machine

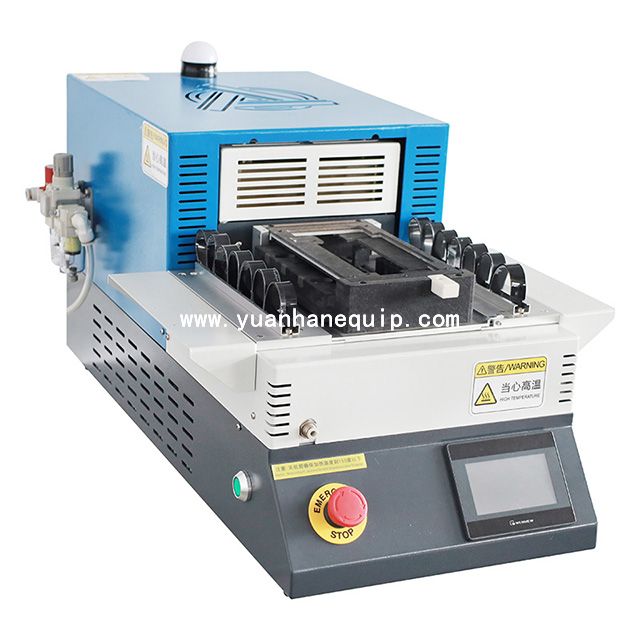

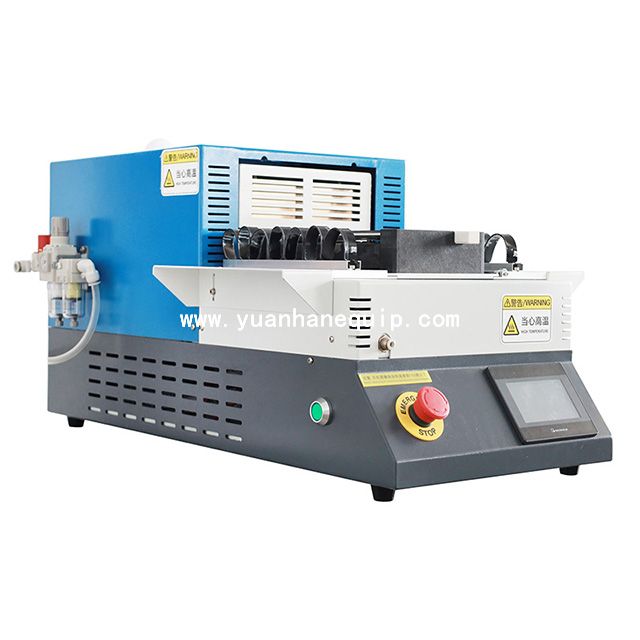

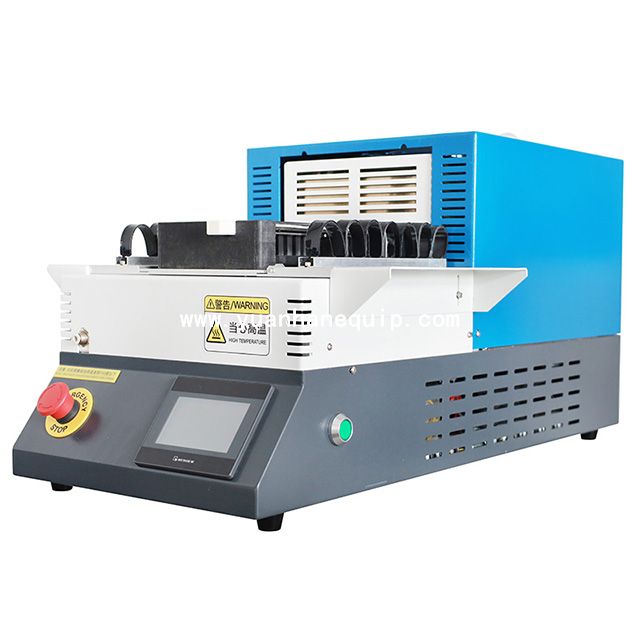

Heat Shrink Tube Processing Machine

Heat Shrink Tube Processing MachineHeat Shrink Tube Processing Machine

The standout feature of our heat shrink tube processing machine is its innovative infrared ring heating system. This cutting-edge technology ensures even and efficient heat shrinkage, providing you with impeccable results every time.

Model:
  • YH-RS01
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ The equipment adopts infrared ring heating, which can heat shrink evenly and reach the set temperature quickly;

○ The equipment has a built-in cooling system, which can quickly cool the heating components after heat shrinkage;

○ Adjustable parameters: process temperature, heat shrink time, cooling time, etc.;

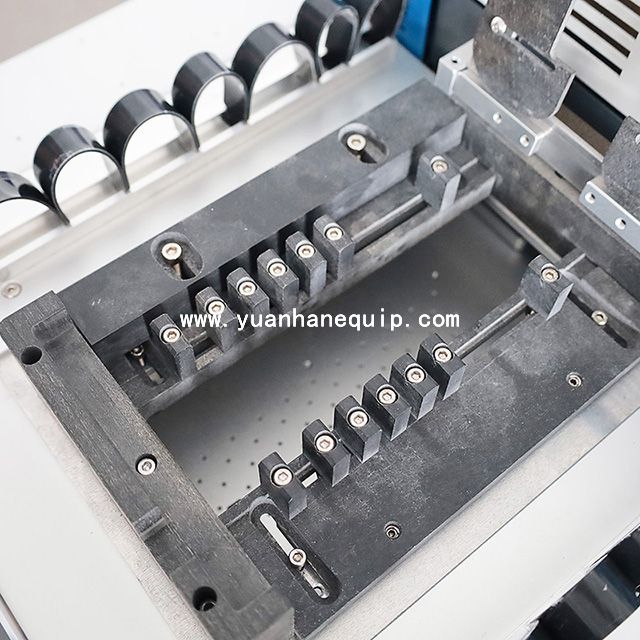

○ According to different product requirements, the heat shrink chamber can be easily and quickly replaced, and is suitable for different heat shrink tube sizes and product shapes;

○ The equipment can record and save dozens of product heat shrink parameters, which can be called directly when needed;

○ Automatic cold circulation inside the equipment can extend the service life of components and ensure low-temperature operation of the equipment shell;

○ The touch screen displays the current temperature, heat shrink cooling time, temperature curve, production data, etc. in real time;

Model YH-RS01
Working temperature 250℃~550℃
Power supply 220V@50HZ
Power Max. 2000W
Air pressure source 0.6Mpa
Thermocouple K type thermocouple
Heat shrink chamber Max. 120*120*74mm
Pipe diameter Max. 50mm
Weight 35KG
Dimensions (length*width*height) 530mm*500mm*400mm
