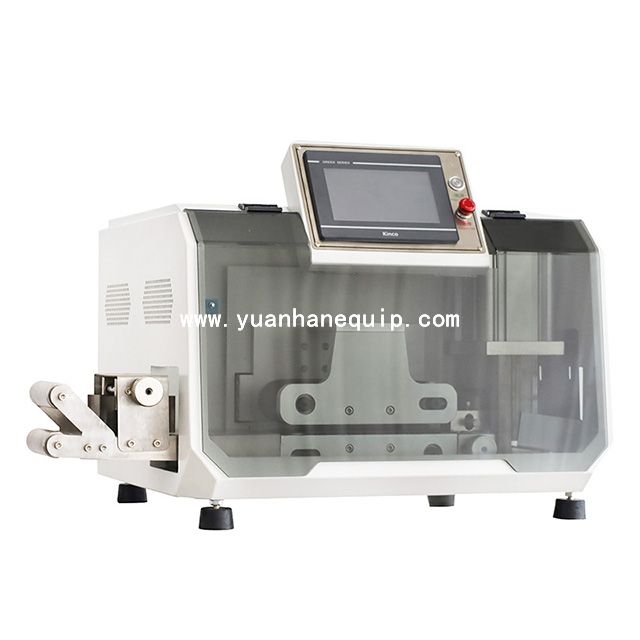

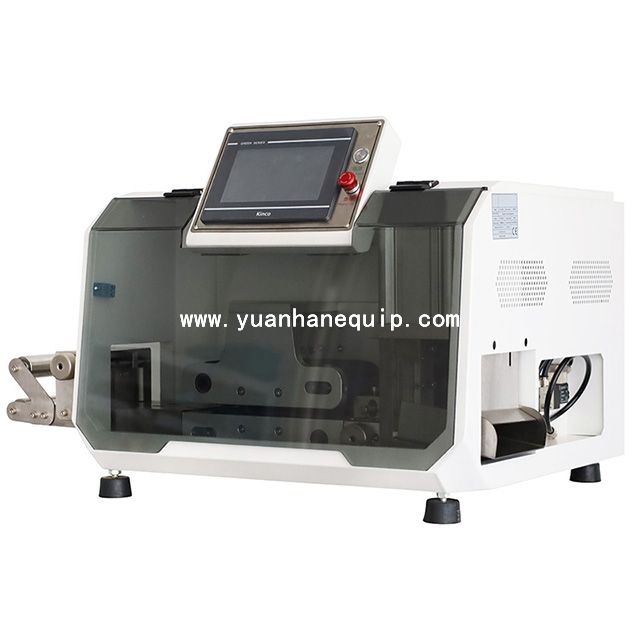

Automatic Heat Shrink Tubing Cutting MachineAutomatic Heat Shrink Tubing Cutting Machine

The heat shrink tube cutting machine is a device used for precisely cutting heat shrink tubes. Heat shrink tubes are commonly used in various industries for insulation, protection, and bundling purposes. This machine is specifically designed to provide accurate and efficient cutting of these tubes, ensuring high-quality results.

Model:
  • YH-QD30
Brand:
  • Yuanhan
Share to:
Features
Specifications

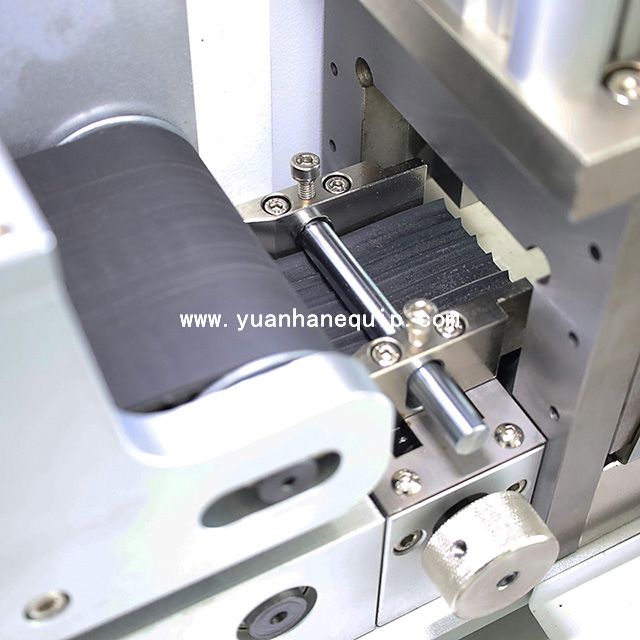

○ With its advanced technology and precision cutting mechanism, the heat shrink tube cutting machine offers a reliable solution for businesses that require precise and consistent cutting of heat shrink tubes. The machine is equipped with a sharp cutting blade that effortlessly slices through the tubes, ensuring clean and smooth cuts every time.

○ Its user-friendly interface allows operators to easily control and adjust the cutting parameters. The machine offers flexibility in terms of tube diameter and length, accommodating a wide range of tube sizes. This versatility makes it suitable for various applications and industries.

○ The heat shrink tube cutting machine is built with durability and longevity in mind. It is constructed using high-quality materials that can withstand the demands of continuous operation. This ensures that the machine can deliver consistent performance over an extended period, minimizing downtime and maximizing productivity.

○ In addition to its cutting capabilities, the machine also incorporates safety features to protect operators during operation. It is equipped with safety guards and sensors that prevent accidents and injuries, ensuring a safe working environment.

○ The heat shrink tube cutting machine is an essential tool for businesses that rely on heat shrink tubes for their operations. Its precision cutting, user-friendly interface, and durability make it a valuable asset in various industries. By investing in this machine, businesses can enhance their productivity, efficiency, and overall quality of work.

Model

YH-QD30

Display method

7-inch human-machine interface

Cut off method

cylinder

Cutter stroke

60mm

Cut off diameter

ø1-ø30mm, cutting width 90mm

Speed

1000 pcs/hour (depending on length)

Feeding method

Belt feeding, no embossing or scratching on the materials.

Lifting operation mode

Digitally adjustable pressure wheel height

Power supply

220V 50/60Hz;  110V 50/60Hz optional

Air pressure

0.5-0.7MP

Power

300W

Dimensions

570x490x460(length*width*height) mm

Net weight

70kg



×
