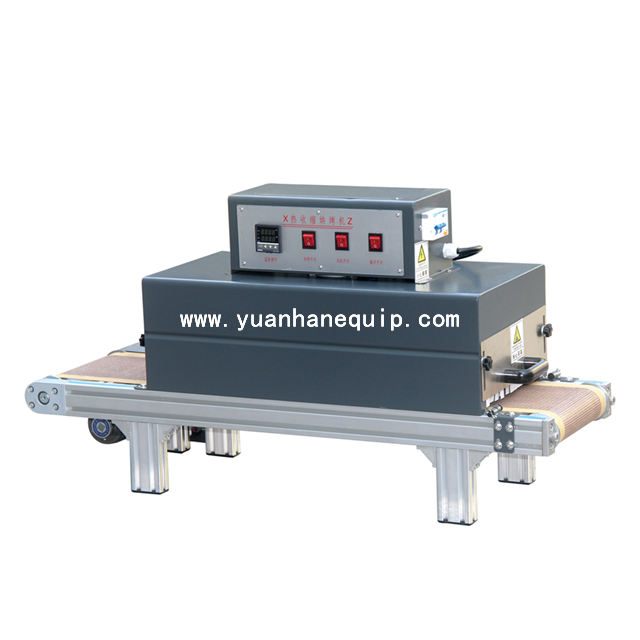

The closed desktop heat shrink baking machine is suitable for heat shrinking of relatively small products such as wire harness heat shrink tubing, heat shrink film packaging, circuit boards, inductor coils, etc.
|
Model:
|
|
|
Brand:
|
|
○ The machine uses far-infrared heating tubes for heating, and heats on one side. The inner box is equipped with a high-speed centrifugal fan, which can stir the heat evenly during heating to keep the entire box at a constant temperature. The original characteristics of the product are maintained, so that the product shrinks and does not deform or change color after baking, and the quality is stable.
○ Use high-temperature Teflon mesh belt (temperature resistance 0~350°), assembly line mode feeding, fast baking speed and high efficiency;
○ The desktop structure mode has a compact structure and exquisite design, which saves space to a limited extent and is more suitable for small batch and small size products;
○ Intelligent control system, heating temperature and speed can be adjusted at will, which can meet the temperature and heat shrink time requirements of different products;
○ Independent control electric box, away from high temperature; the heating box has a double-layer design with high-temperature insulation cotton (temperature resistant 1200°) in the middle, so that the surface temperature of the box will not overheat, which not only makes the working environment comfortable, but also reduces energy waste.
|
Model |
YH-RS6030B |
|
Dimensions |
L1000*W300*H560 |
|
Box size |
L630*W300*H200 |
|
Heating space |
L630*W240*H80 |
|
Weight |
30kg |
|
Conveying speed |
0~6m/min |
|
Power |
2.4KW |
|
Transport load |
10kg |
|
Conveyor belt material |
High temperature resistant Teflon mesh belt |
|
Heating temperature |
0~260° |
|
Heating method |
Single-sided heating |
|
Heating tube |
Far infrared heating tube |
|
Hot air blower |
have |
|
Conveyor belt guidance |
have |
|
Power supply |
220V 50HZ |
