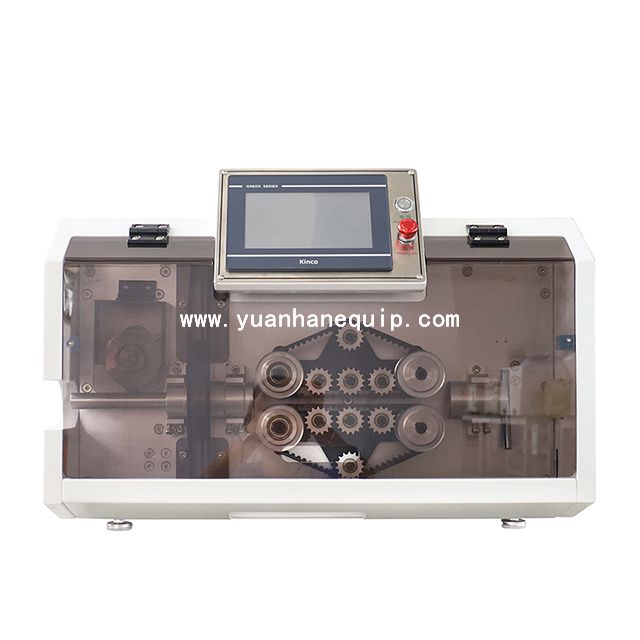

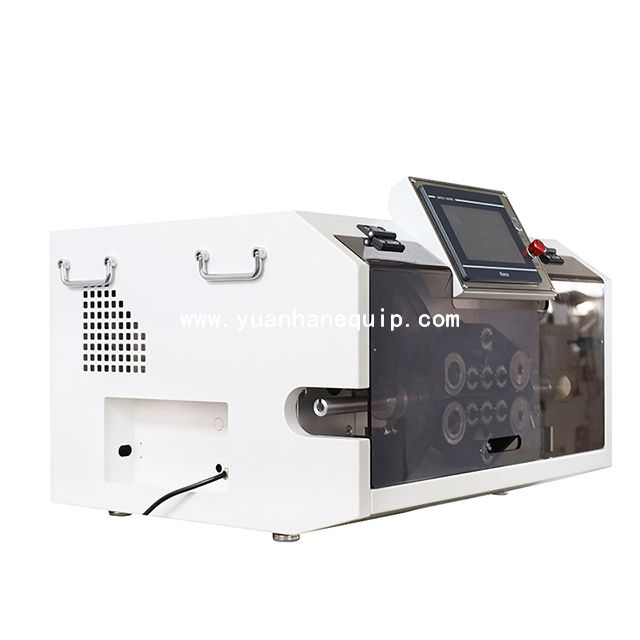

High Speed Corrugated Pipe Cutting Slitting MachineHigh Speed Corrugated Pipe Cutting Slitting Machine

This is a high-speed automatic pipe cutting machine, which is mainly used for fixed-length cutting and slitting of corrugated pipes, PVC pipes, heat shrinkable pipes and other thin-walled pipes. The cutting speed can reach 100,000 pieces/hour.

  • YH-GS535FP
  • Yuanhan
Share to:

○ 7-inch color touch screen operation, simple and intuitive

○ Featuring splitting ability

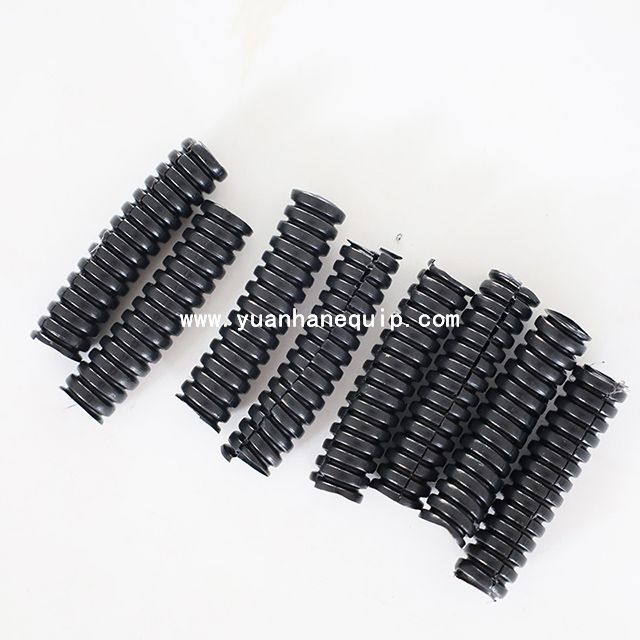

○ Cutting materials: corrugated pipes, PVC pipes, heat shrinkable pipes and other thin-walled pipes

○ Optional: MES system, Internet of Things system, fixed-point coding function, external auxiliary equipment alarm

○ Modular interface, easy to link accessories and peripheral equipment

○ Modular design, can be upgraded in the future

Model YH-GS535FP
Display mode 7-inch man-machine interface

1. Cut-to-length and slitting of corrugated pipes, PVC pipes, heat shrinkable tubes and other thin-walled pipes

2.Slitting function: it can be slit at any position, slit at any length, and slit continuously

Processing range φ4-32mm
Cutting length 1mm-999999.99mm
Cutting tolerance within 0.003*L (L=cutting length)
Max. pass through diameter Φ35
Productivity 100,000 pieces/hour (depending on the length and size of the tube)

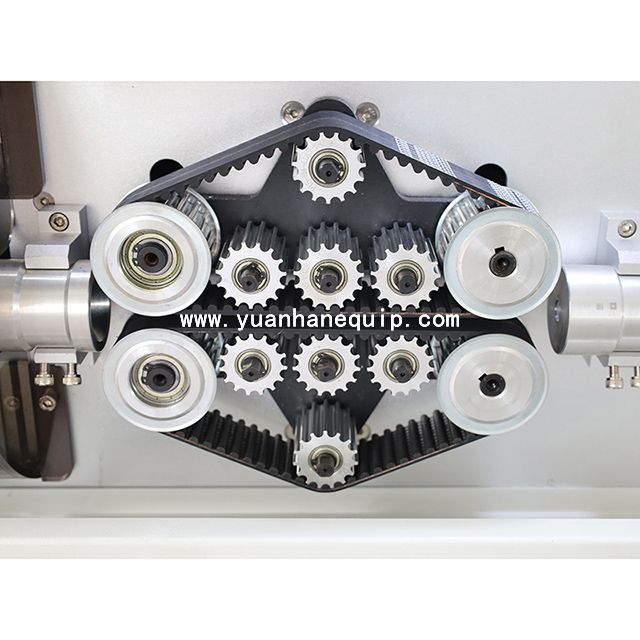

Drive mode 10-wheel drive; optional servo motor
Feeding method belt feeding, no embossing and no scratches on the pipe
Lifting operation mode digital adjustment of the height of the pinch roller

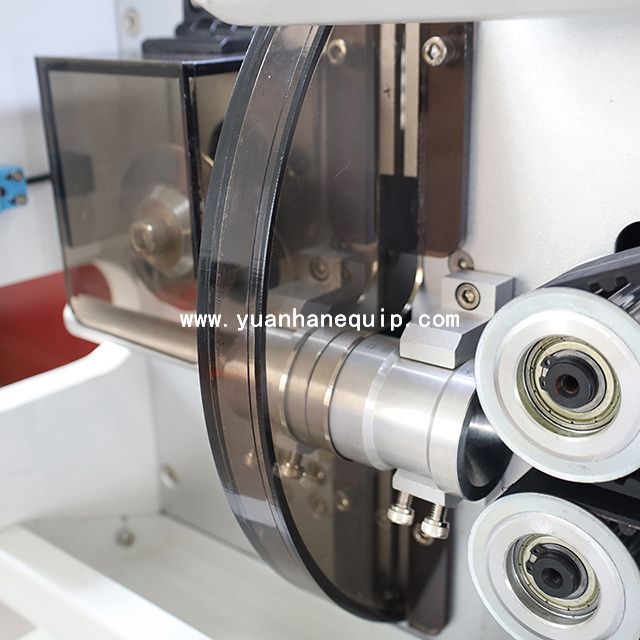

Slitting power servo motor
Slitting speed adjustment touch screen stepless speed adjustment
Slitting adjustment method touch screen digital adjustment
Slitting position 1. Any position. 2. Any length. 3. Continuously slit.
Power supply AC220V 50/60Hz; optional 110V 50/60Hz
Air supply No air supply required
Dimensions (L*W*H) 680*570*430mm
Net weight 85kg
