Kunshan Yuanhan Electronic Equipment Co., Ltd.

High Speed KN95 Earloop Welding Machine

The machine can automatically weld KN95 mask ear straps, and can quickly replace the positioning jig to adapt to the production of various types of butterfly shape masks.

Model:
  • YH-KN95HED
Brand:
  • Yuanhan
Share to:
Features
Specifications
  • The equipment adopts dual-station ultrasonic welding technology with high efficiency and high stability.

  • Only one worker is needed to operate one machine, reducing labor cost.

  • Manual material feeding, automatic cutting, automatic welding, safe and convenient operation.

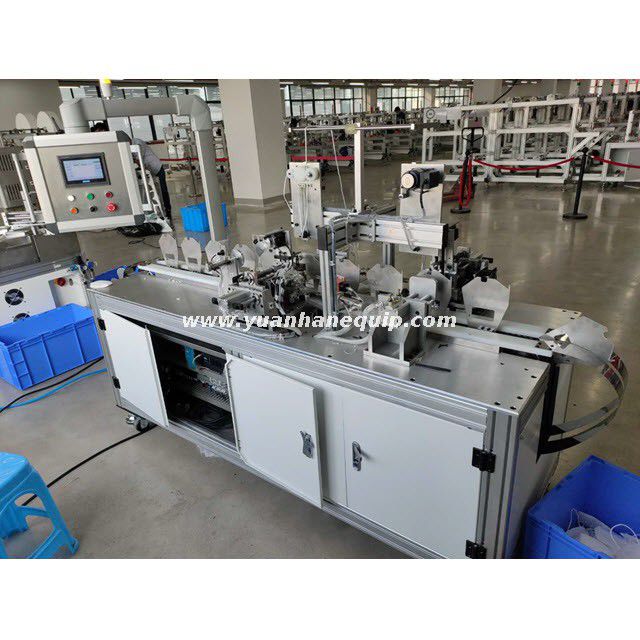

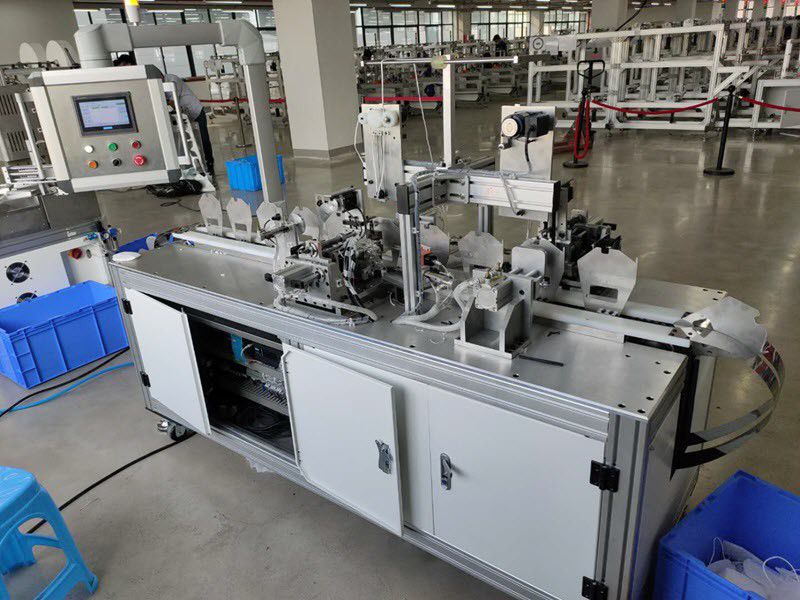

kn95 mask earloop welding machine

ModelYH-KN95HED
Power supply220VAC ± 5%, 50HZ
Rated powerabout 3KW
Compressed air pressure0.6Mpa, flow rate: 200L / min
Working environmenttemperature 10-35 ℃, temperature 5-35% HR, no dust (cleanness not less than 100,000 grade)
Production efficiency25-35PCS / min
Weightabout 500KG
Dimensions2,400mm (L) X 800mm (W) X 1,700mm (H)





×
