The new energy high voltage wire processing machine can complete circular cutting and stripping of outer skin and aluminum foil, cutting of shielding net, circular cutting and stripping of inner skin, breaking up of shielding net and turning over of shielding net at one time.
|
Model:
|
|
|
Brand:
|
|

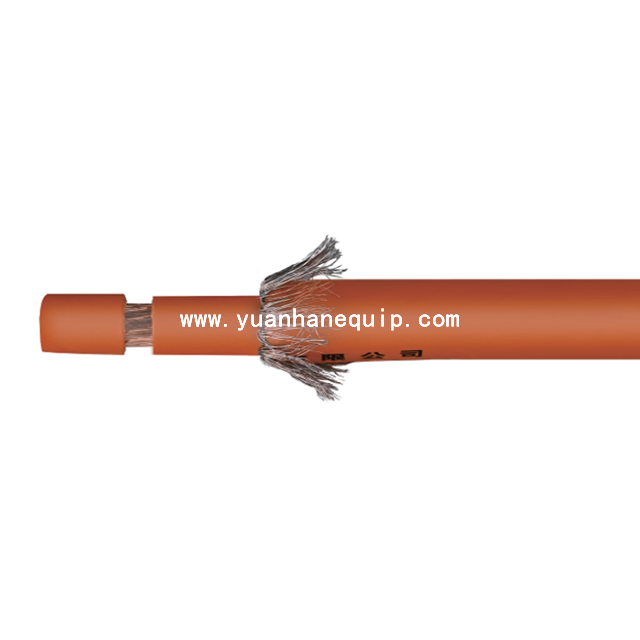

○ Circular cutting and stripping of outer skin and aluminum foil -> cutting of shielding net -> circular cutting and stripping of inner skin -> breaking up shielding net -> flipping shielding net -> finished wire
○ The brush structure can easily break up the shielding net and flip it over. The outer diameter of the flipped shielding net is smaller than that of the unbroken one, which effectively saves the size of the subsequent magnetic ring.
○ This machine is controlled by a servo motor. The ring cutting process does not damage the internal conductor while being more efficient, more accurate and faster. The digital intelligent control device and touch screen operation can adjust the stripping length and cutting depth values at will.
| Model | YH-5001 |
| Functions | Circular cutting and stripping of outer skin and aluminum foil -> cutting of shielding net -> circular cutting and stripping of inner skin -> breaking up shielding net -> flipping shielding net -> finished wire |
| Applicable materials | coaxial cable, shielding net expansion diameter greater than 1.6mm |
| Wire diameter range | Φ6-Φ22 (2.5-120mm2) |
| Stripping length | 15-120mm |
| Shielding net remaining length | ≥4mm |
| Power | 2.6KW |
| Power supply | 220V 50/60HZ |
| Air source | 0.5MPA |
| Weight | 220KG |
| Machine size | L*W*H=1200*1050*1500 |
| Control mode | motion control card |
| Consumable accessories | rotary cutter, steel wool |
