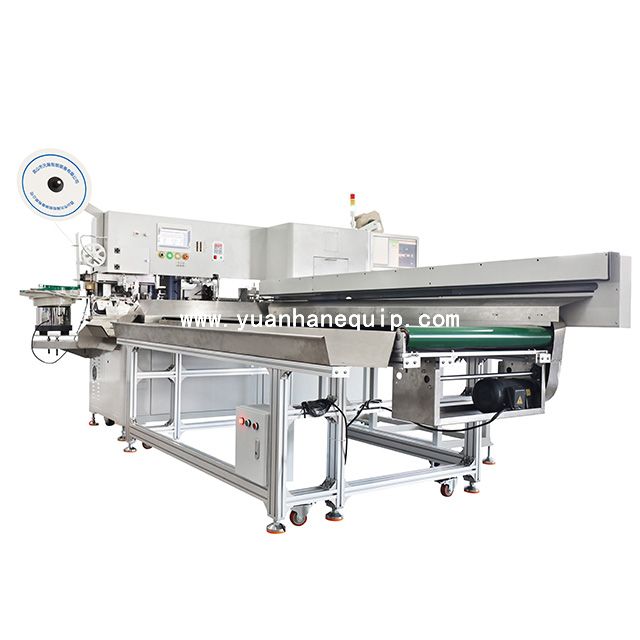

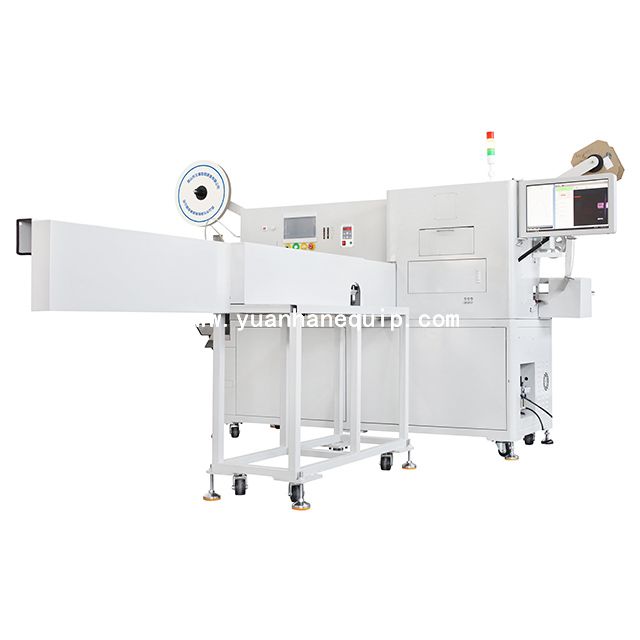

This equipment accepts customization and is mainly used for the processing of internal wiring harnesses for home appliances, automobiles, electronic products, etc.
Model:
|
|
Brand:
|
|
○ Two types of wires can be processed at the same time.

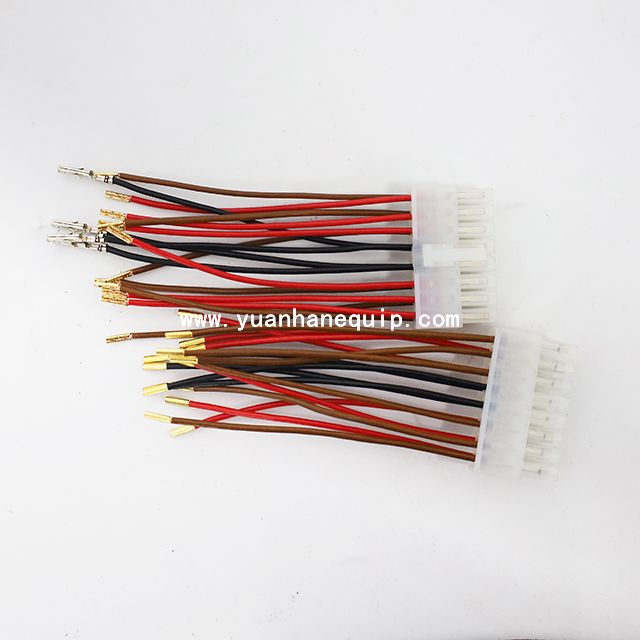

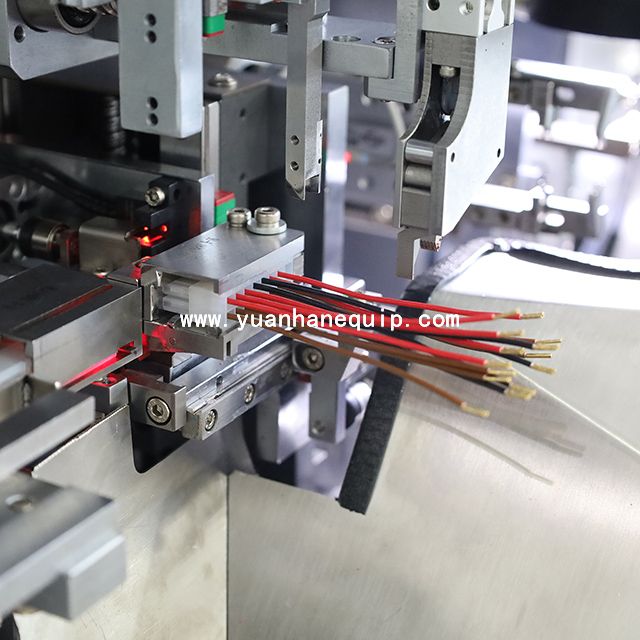

○ Side A: cutting, stripping, terminal crimping (two types of terminals at one end), inserting housing connector
○ Side B: cutting, stripping, twisting and tinning at the other end.
Model | YH-CJK03 |
Voltage | 220V/50Hz; 110V/60Hz |
Power | 3.6KW |
Wire size | AWG16-AWG28 |
Max. efficiency | 1200PIN/H |
Air pressure | 4 - 6kgf (0.4-0.6Mpa) |
Crimping capacity | 1.5KN |
Cutting length | 40-3000mm (customizable) |
Stripping length | side A: 0.1-10mm, side B: 0.1-6mm |
Max. pin No | single row 16 holes, max.3 rows |
Max. wire colors | 20 colors |

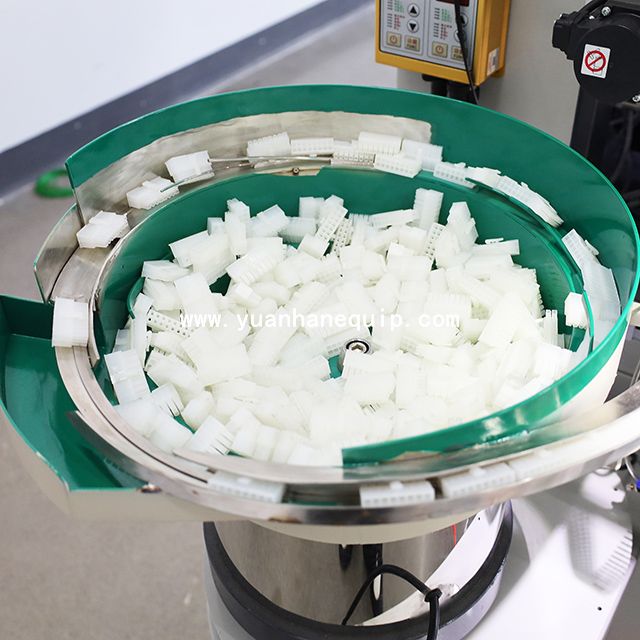

Connector size | Min.5x6x3, Max. 40x25x25mm (customizable) |
Test functions | wire lack/knotted, terminal lack, stripping abnormal, CFM, insertion pull force, connector lack, NG rate |
Optional devices | cable prefeeder, transfer belt, CFM, CCD tester |
NG rate setting function |
alarm stop production: wire lack/knotted,terminal lack, connector lack, NG rate exceeds set value |
Alarm to pick out and continue production | abnormal stripping, abnormal crimping force, abnormal connector insertion tension, NG rate does not exceed the set value |
Dimensions | 260x120x158cm |
Packing size | 271x95x186cm;326x63x134cm; 262x146x112cm |
