Cable Housing Assembly and Tinning machineCable Housing Assembly and Tinning machine

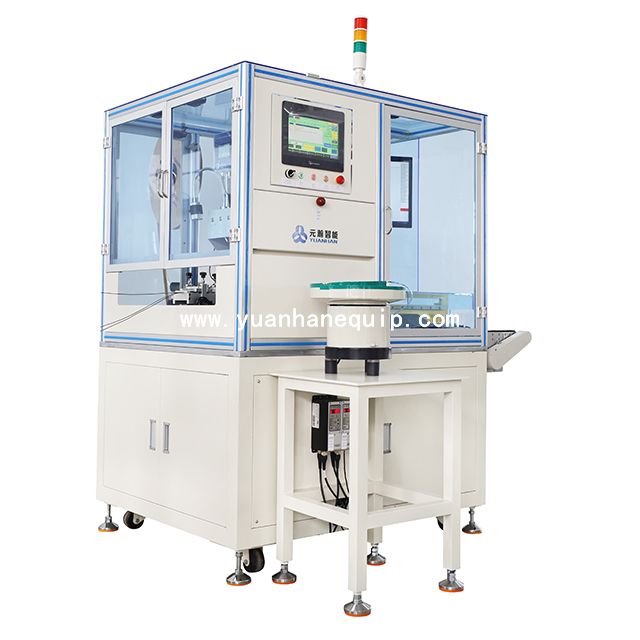

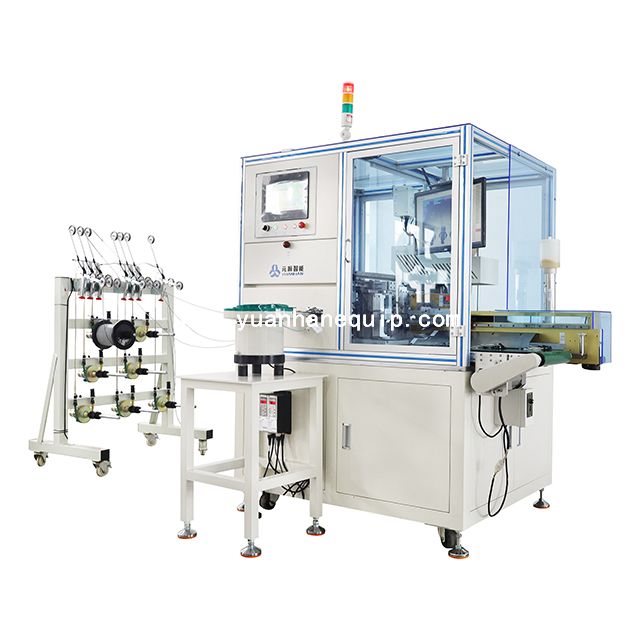

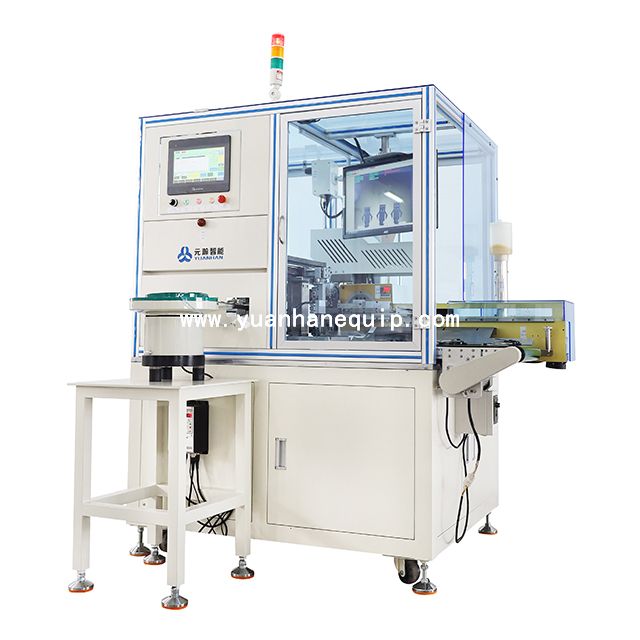

This is a fully automatic cable housing connector assembly and tinning machine. It can process housing insertion on one end, and tinning/half-stripping on the other end.

Model:
  • YH-CJK08
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ Servo motor and stepping motor control, features high precision and high efficiency;

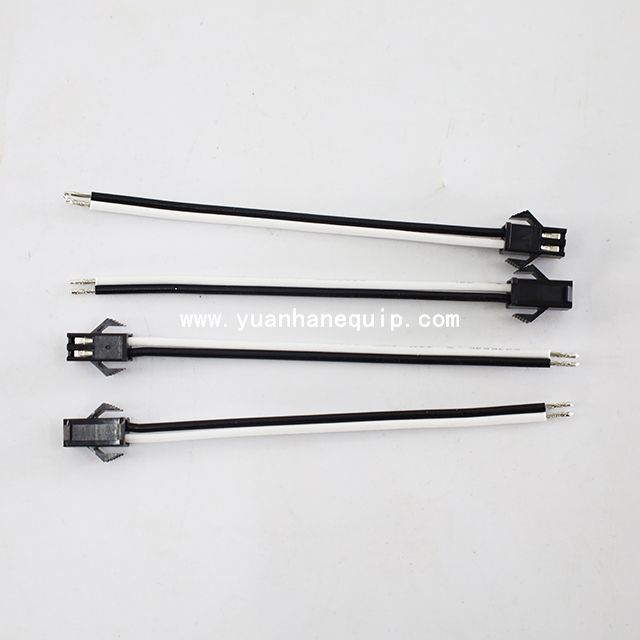

○ One end inserting housing connectors, the other end tinning or half-stripping, twisting function optional.
○ Computer touch screen control, convenient and fast debugging;
○ Detection function: wire lack detection, terminal lack detection, CFM, Visual CCD detection

Model YH-CJK08
Applicable wire AWG#30-AWG#18
Capacity

AWG#30, about 4000 holes per hour (wire length ＜ 100MM);

AWG#28-AWG#24, about 6000 holes per hour (wire length ＜ 100MM);

AWG#22-AWG#18, about 5000 holes per hour (wire length ＜ 100MM);

Cutting length standard 45MM-500MM
(Special needs need to be customized. The shortest: 15MM, the longest: 2500MM)
standard length of parallel cable: 80MM-500MM
Cutting accuracy

cutting length ＜ 100MM, deviation ＜ 0.3MM+ (cutting length x0.002);

cutting length ＞ 100MM, deviation ＜ 0.3MM+ (cutting length x0.002);

Stripping length

front end: 1.0-4.0MM (half-stripping length 2.0-6.0MM)

rear end: 1.0-8.0MM (half-stripping length 2.0-8.0MM)

Applicable applicator horizontal feeding card applicator
Crimping machine two sets of 2.0T crimping machines
Control mode 10-inch touch screen + PLC control
Detection device wire lack detection, terminal lack detection, CFM, Visual CCD detection
Power supply single phase AC 210V-AC230V 50/60HZ 10A
Compressed air 0.6-0.8MPa (need to use clean and dry air source)
Dimensions 1600Wx1250Lx1750H(mm)
Weight about 700KG
