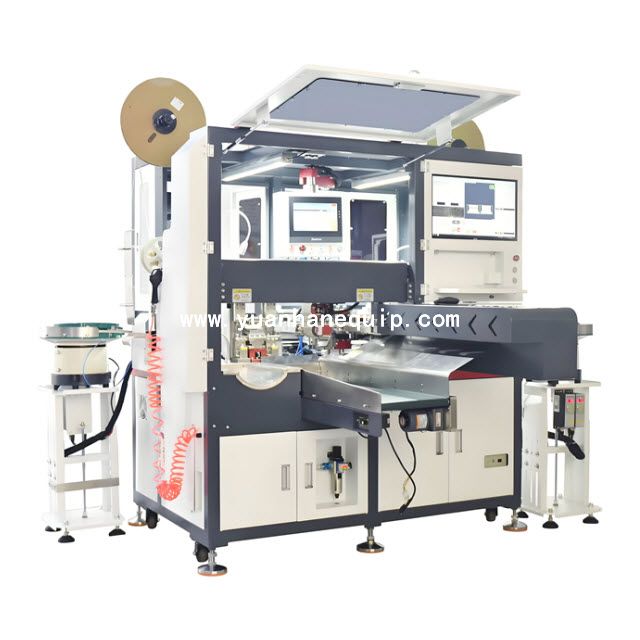

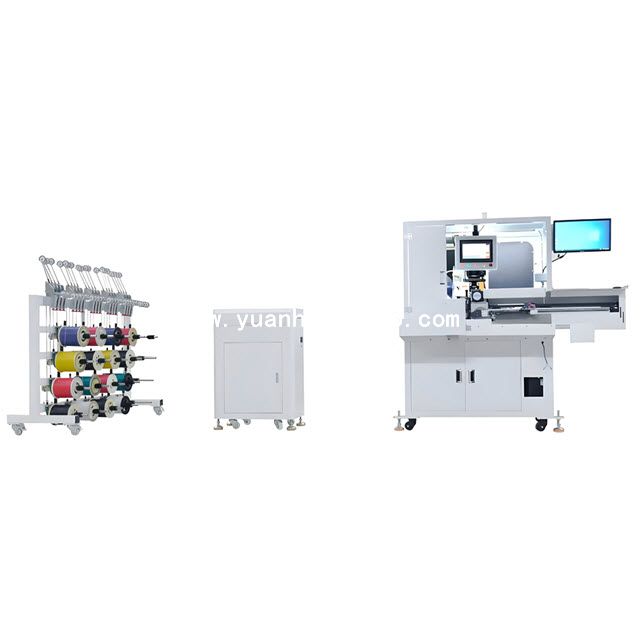

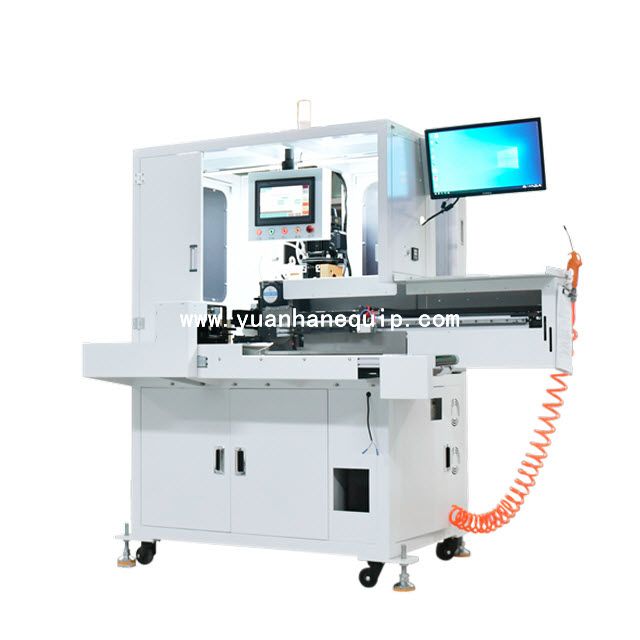

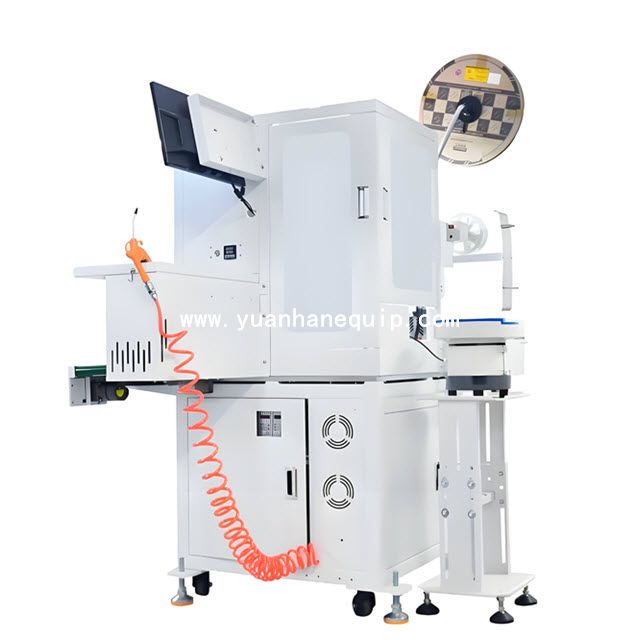

Our fully automatic wire single end housing connector assembly machine is designed to streamline and optimize the assembly process with precision and efficiency. It is equipped with advanced technology and features to meet the demands of high-volume production environments.
|
Model:
|
|
|
Brand:
|
|
○ Function: cutting, single-end stripping, double-end stripping, single-end twisting tinning, single-end crimping, single-end shell insertion (each function can be turned on or off separately)
○ Our fully automatic wire single end housing connector assembly machine is engineered to handle a wide range of wire sizes and connector types, ensuring versatility and flexibility in your assembly operations. With its user-friendly interface and intuitive controls, operators can easily set up and adjust the machine to meet specific production requirements.
○ This machine is designed for seamless integration into existing assembly lines, offering seamless connectivity and compatibility with other equipment. Its robust construction and durable components ensure long-lasting performance and reliability, minimizing downtime and maintenance costs.
○ The fully automatic wire single end housing connector assembly machine is equipped with safety features to protect operators and prevent accidents, ensuring a safe working environment. Its high-speed and precision assembly capabilities make it ideal for industries requiring fast and accurate production processes.
| Model | YH-CJKD01 |
| Wire range | 14AWG-32AWG (customizable if out of range) |
| Cutting length | 35-800mm (customizable if out of range) |
| Stripping length | front/rear: 6+9mm (customizable if out of range) |
| Twisting length | rear 3-9mm (customizable if out of range) |
| Tinning length | rear 0-9mm (customizable if out of range) |
| Shell insertion method | multiple continuous insertions |
| Defective rate | less than 0.3% (defective products are automatically discharged) |
| CCD vision | single lens (detection of stripping and shell insertion in place) |
| Production capacity | Example: 1.25 terminal, 2P plastic shell, one out of ten, 450x10 groups = 4500PCS |
| Detection device | low air pressure, motor abnormality, stripping size, missing wire, terminal not pressed, plastic shell not inserted in place |
