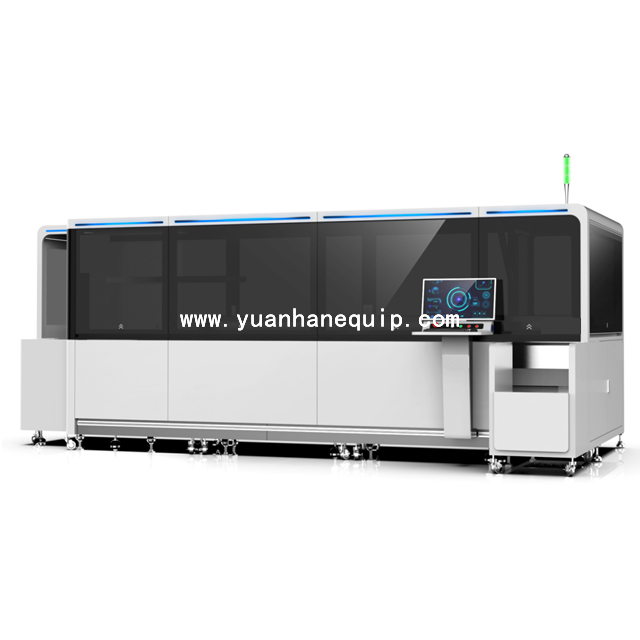

The cable two sides housing connector assembly machine represents the epitome of cutting-edge technology in the field of cable assembly. Its unrivaled precision, efficiency, and user-friendly design make it an invaluable addition to any production line.
Model:
|
|
Brand:
|
|
○ This housing connector assembly machine revolutionizes the process of assembling cable two-sided housing connectors, ensuring unparalleled precision and efficiency.
○ Function: wire cutting, stripping at both ends, crimping at both ends, inserting housing at both ends, U-shaped wire holding method, discharging good/defective products separately, automatic discharging
○ Production cycle: 3.4s-4s/line
Capacity: about 1,000 lines/hour
○ User-friendly interface empowers operators of all skill levels to effortlessly navigate its functionalities. Its intuitive controls and clear instructions ensure a smooth and hassle-free assembly experience.
○ Our dedicated customer support team is always at hand to provide prompt assistance and address any queries or concerns that may arise.
Model |
YH-S800 |
Function |
wire cutting, stripping at both ends, crimping at both ends, inserting housing at both ends, U-shaped wire holding method, discharging good/defective products separately, automatic discharging |
Wire size |
0.1-2.0 mm2 |
Wire color |
30 colors |
Wire cutting length |
240-9999 mm |
Wire length accuracy |
±0.5% of wire length |
Stripping length |
0-15 mm |
Stripping length accuracy |
Tolerance ±0.1 mm |
Stripping and cutting accuracy |
Tolerance ±0.1 mm |
Crimping machine |
4 sets of 2.0T servo motor driven crimping machines |
Detection device |
Low pressure detection, wire presence detection, wire overload detection, crimping error detection, terminal presence detection, terminal overload detection, terminal insertion detection, wire continuity detection, pressure sensing device (optional), CDD Visual inspection (optional) |
Control method |
PLC control |
Power supply |
Two- phase AC 220 V 50HZ 10A |
Compressed air |
0.5MPa, about 170N/min |
Operating temperature range |
5-50℃ |
Operating humidity range |
30%-80%RH, no condensation |
Warranty time |
1 year (except consumables) |
Dimensions |
5000W×2000D×1900H (mm) |
Weight |
About 5000kg |
