Cable Both Ends Crimping and Housing Inserting Machine
Cable Both Ends Crimping and Housing Inserting Machine
Cable Both Ends Crimping and Housing Inserting Machine
Cable Both Ends Crimping and Housing Inserting Machine
Cable Both Ends Crimping and Housing Inserting Machine
Cable Both Ends Crimping and Housing Inserting Machine
Cable Both Ends Crimping and Housing Inserting Machine

Cable Both Ends Crimping and Housing Inserting MachineCable Both Ends Crimping and Housing Inserting Machine

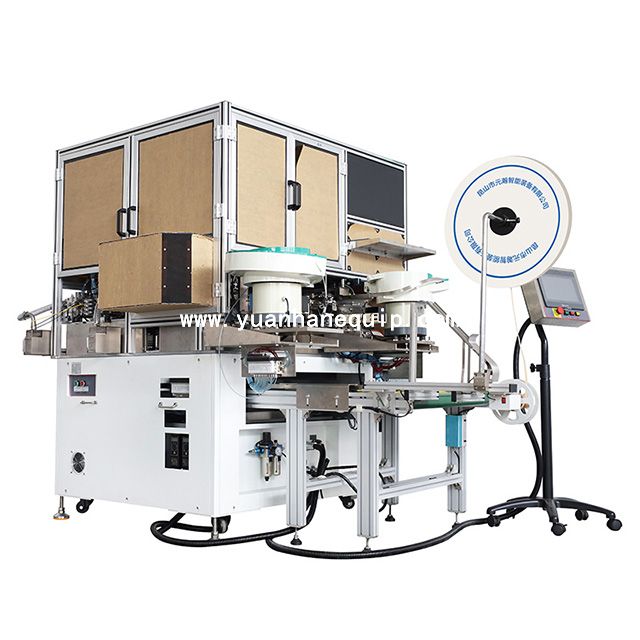

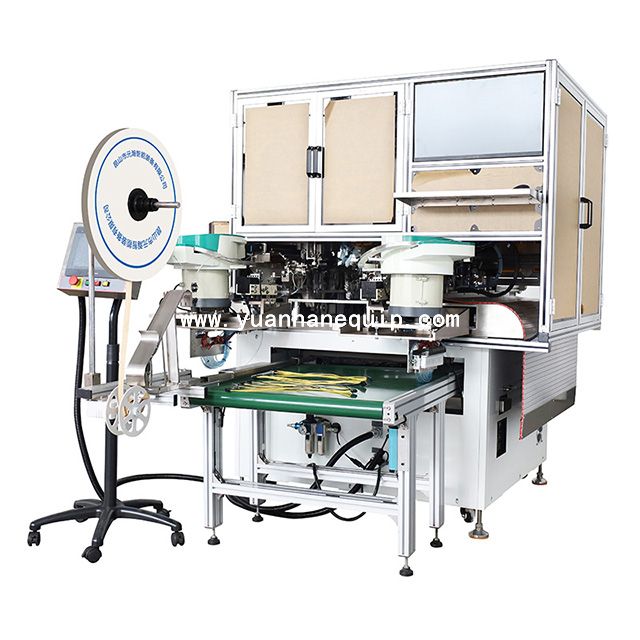

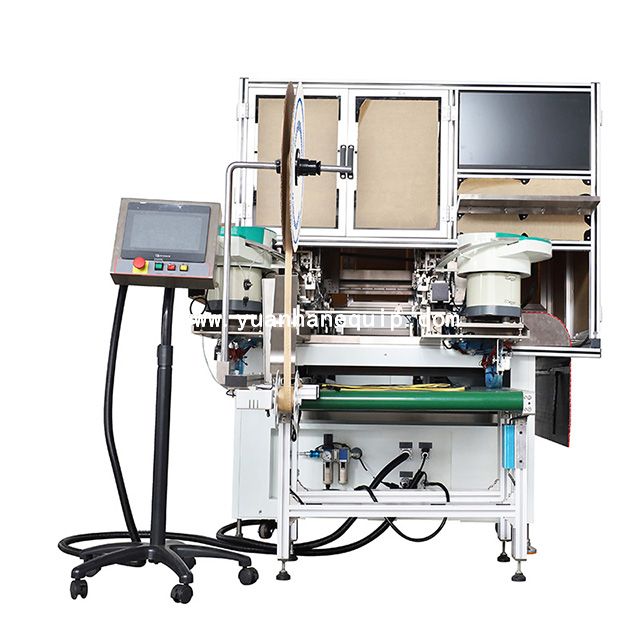

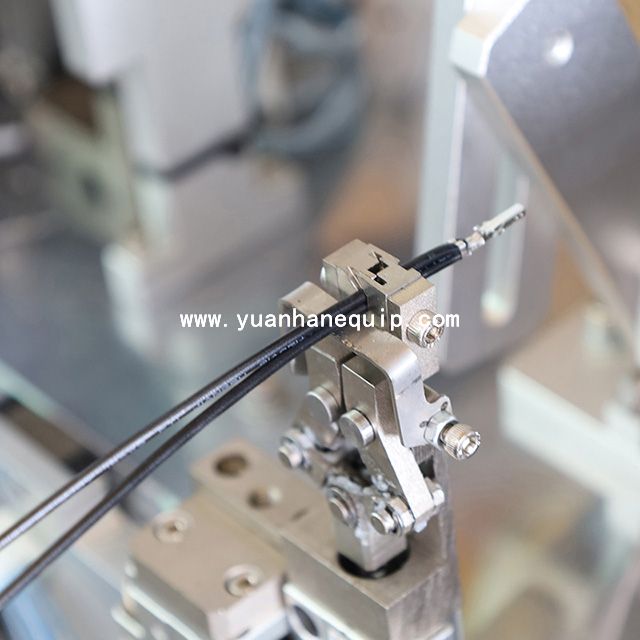

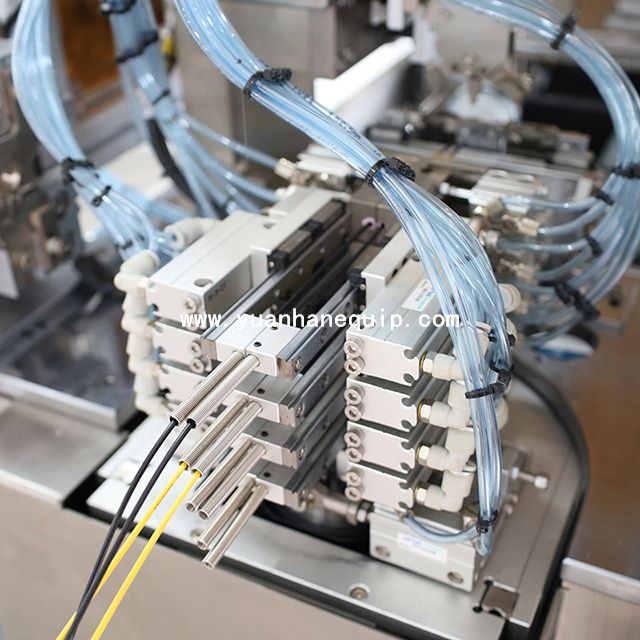

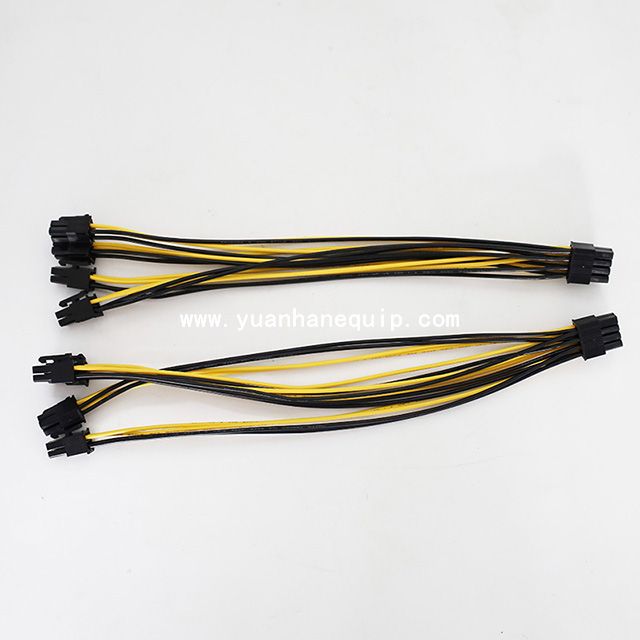

This is a fully automatic cable housing connector assembly machine. It is able to process of wire cutting, stripping at both ends, crimping at both ends, inserting housing at one end, and inserting housing at both ends.

Model:
  • YH-S600
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ Function: wire cutting, stripping at both ends, crimping at both ends, inserting housing at one end, inserting housing at both ends, holding the wire in reverse, discharging good/defective products separately, automatic discharging.
○ Realize automatic detection of defective products, automatic discharge of defective products and finished products, realize continuous, efficient and high-quality automation of products, and realize 24-hour unsupervised machine automation production process.
○ Reduce labor and manufacturing costs.

Model

YH-S600

Wire size

AWG#18-#30 (wire outer diameter below Φ2.5mm)

Wire color

10 colors (optional 1-10)

Cutting length

120 mm-700 mm (set in units of 0.1 mm)

Cutting accuracy

±0.5%

Stripping length

0 mm - 5 mm

Stripping accuracy

Tolerance ±0.1 mm

Cutting precision

Maximum adjustment 2mm (manual adjustment ±0.05mm)

Crimping machine

2 sets of 0.8t servo crimping machines

Detection device

Low pressure detection, wire presence detection, wire overload detection, crimping error detection, terminal presence detection, terminal overload detection, terminal insertion detection, wire continuity detection, pressure sensing device (optional), CDD Visual inspection (optional)

Control method

PLC control

Power supply

Single-phase AC200V/220V 50HZ 10A

Compressed air

0.5MPa, about 170N/min

Working temperature

5°C - 50°C

Working humidity

30%—80%RH (can’t condense)

Warranty time

1 year (excluding consumables)

Dimensions(mm)

1500W×1500D×1600H (without protrusions)+1200Wx900Dx1000H

Weight

about 700kg+100kg (pay-off stand)
