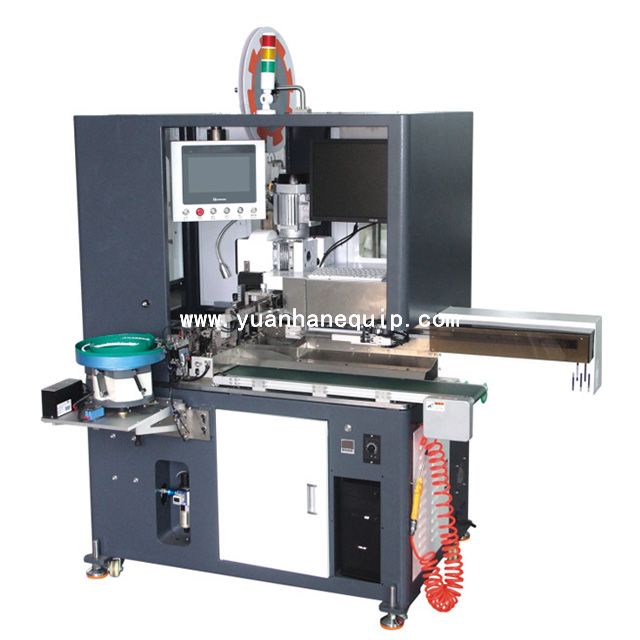

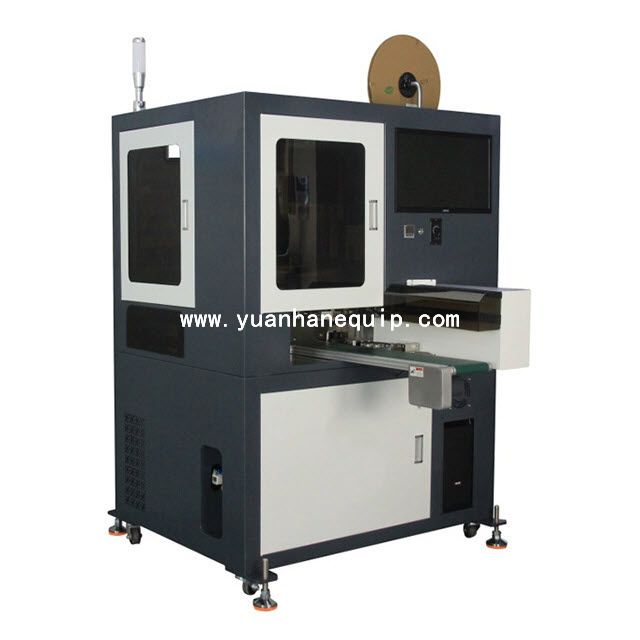

Cable Single End Housing Connector Plugging-in and Twisting Machine
Cable Single End Housing Connector Plugging-in and Twisting Machine
Cable Single End Housing Connector Plugging-in and Twisting Machine

Cable Single End Housing Connector Plugging-in and Twisting MachineCable Single End Housing Connector Plugging-in and Twisting Machine

This fully automatic machine can process wire cutting, single-end stripping, single-end crimping, single-end tinning, single-end half stripping, single-end twisting, and double-end stripping.

Model:
  • YH-005J
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ Function: wire cutting, single-end stripping, single-end crimping, single-end tinning, single-end half stripping, single-end twisting, double-end stripping

○ Touch screen man-machine interface, simple operation, convenient parameter adjustment

○ Servo control, pneumatic components and guide rails adopt world-renowned brands to ensure the overall stability of the equipment

○ Optional function: crimping force detection, CCD detection

Model YH-005J
Wire range 32AWG-18AWG
Wire cutting length 20mm-800mm (can be customized according to specific requirements)
Stripping length 5mm-11mm
Detection device detection of wire presence, detection of terminal presence, detection of housing connector presence, low air pressure detection, motor abnormal detection, etc.
Power source AC 220V/50/60HZ single-phase 1300W
Dimensions Length 3800*Width 1800*Height 2200 (mm)
Tinning length 1mm-9mm
Weight about 430KG
