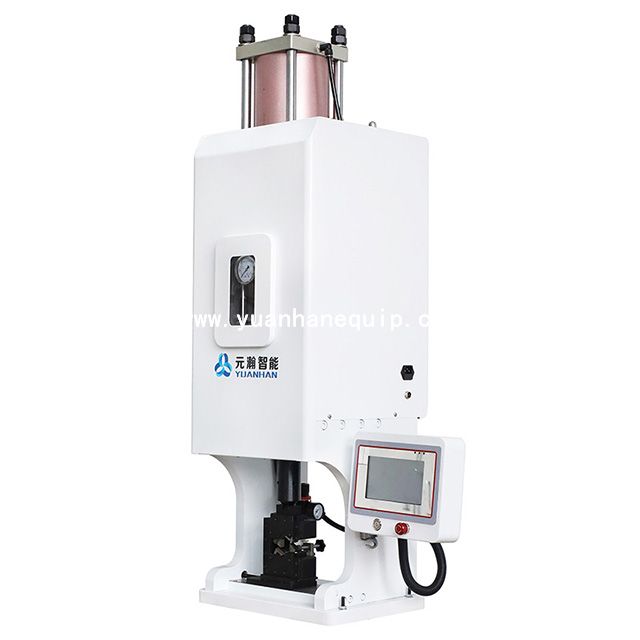

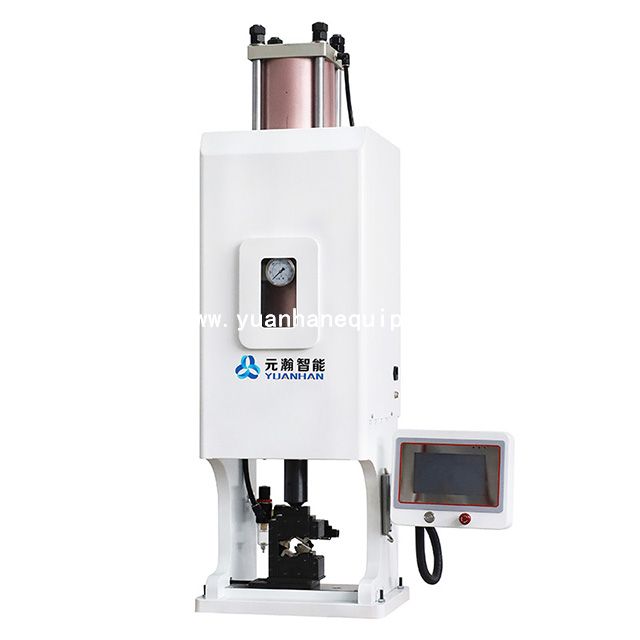

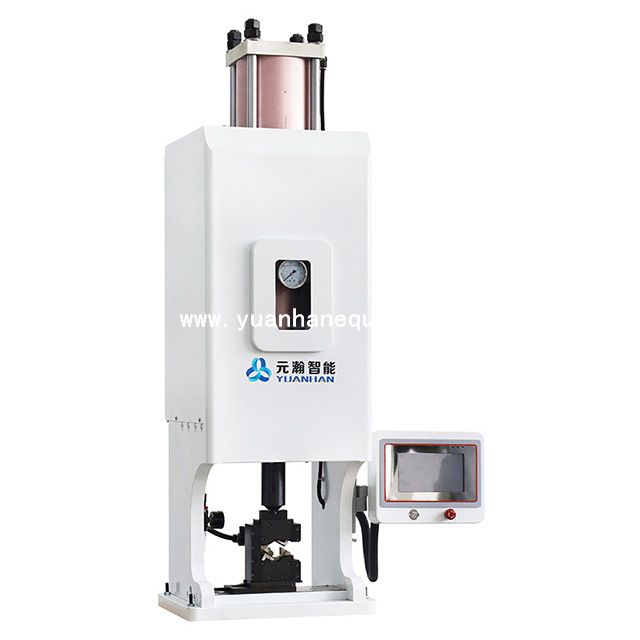

Hydraulic Cable Lugs Crimping Machine

The hydraulic cable lugs crimping machine is perfect for use in the automotive industry, particularly with new energy vehicles. Its robust and intelligent design means that it can easily handle crimping requirements up to a certain size. It is also versatile and can accommodate different types of molds, making it a highly effective machine for crimping various types of terminals.

Model:	YH-Y20T
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Microcomputer control system, one-key storage, can recall the crimping height of various terminals.

○ Height, speed, stroke, crimping force, and crimping time can be adjusted according to different products and applicators.

○ Using compressed air as the power source

○ High efficiency, convenient operation, less labor force, suitable for manual operation and automatic assembly line integration.

Model	YH-Y20T
Working capacity	6-120mm²
Crimping force	20T
Hydraulic crimping stroke	50mm
Work efficiency	20-40 times/minutes
Working air pressure	0.5MPA (0.3-0.7MPA)
Power supply	AC 220V 50/60HZ
Dimensions	L720W420H1230MM
Weight	150KG
