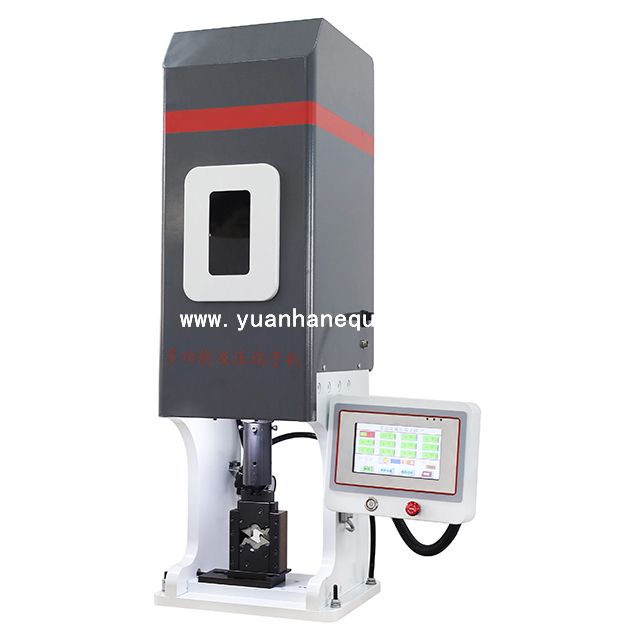

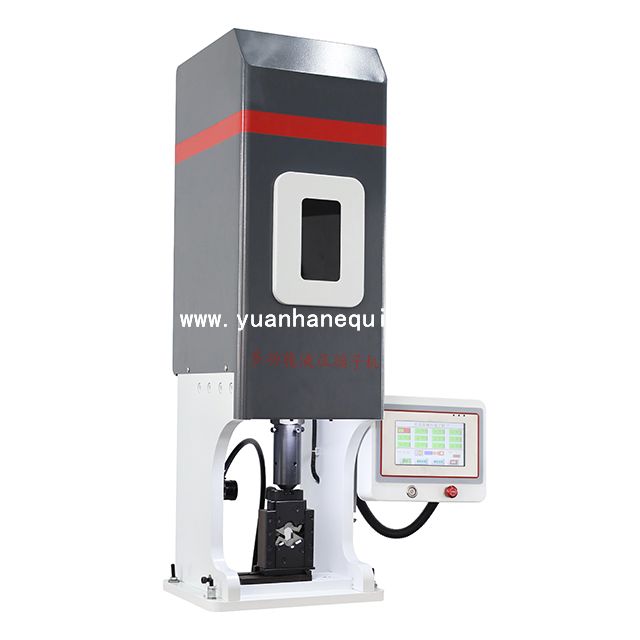

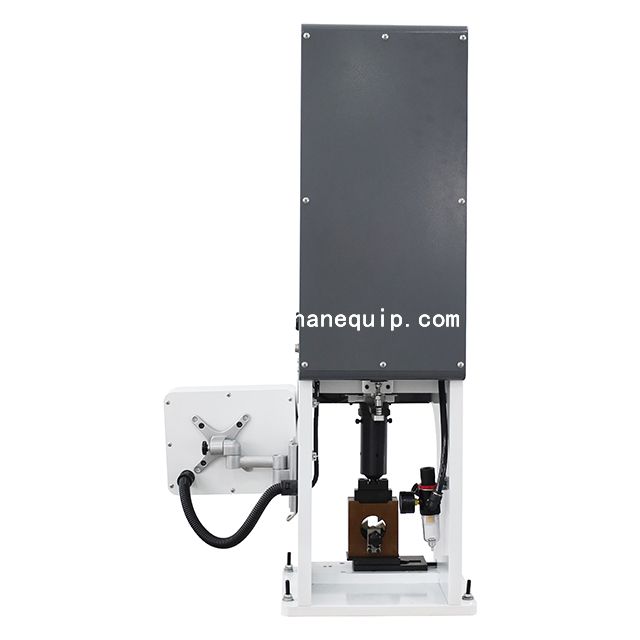

EV Charger Hydraulic Crimping MachineEV Charger Hydraulic Crimping Machine

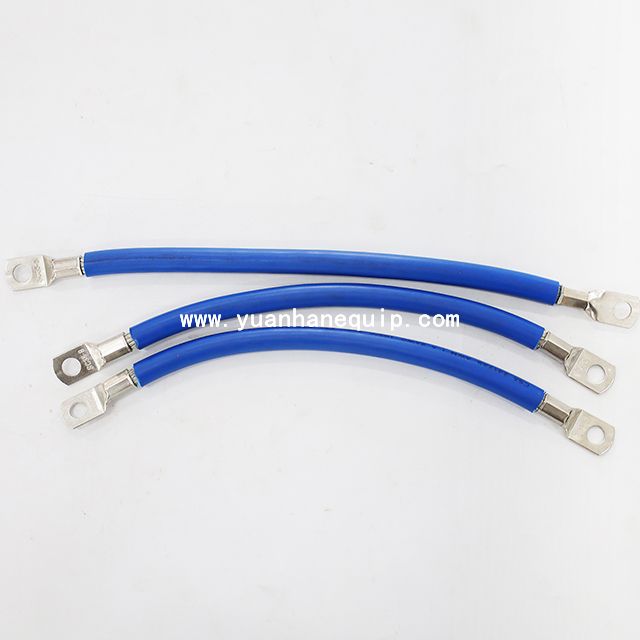

The hydraulic crimping machine is mainly used for crimping large square terminals such as new energy vehicle charging connectors. It has a wide range of applications, and can be installed with 2000 single grain applicators, four-point applicators, new energy shielding ring applicators, and upper and lower crimping applicators.

Model:
  • YH-Y10T
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ Microcomputer control system, one-key storage, can recall the crimping height of various terminals.

○ Height, speed, stroke, crimping force, and crimping time can be adjusted according to different products and applicators.

○ Using compressed air as the power source

○ High efficiency, convenient operation, less labor force, suitable for manual operation and automatic assembly line integration.

Model YH-Y10T
Working capacity 10T for 1-70mm2, 30T for 6-120mm2
Crimping force 10T-30T
Hydraulic crimping stroke 50mm
Work efficiency 20-40 times/minutes
Working air pressure 0.5MPA (0.3-0.7MPA)
Power supply AC 220V 50/60HZ
Dimensions L530*W400*H900mm
Weight 100/150KG
