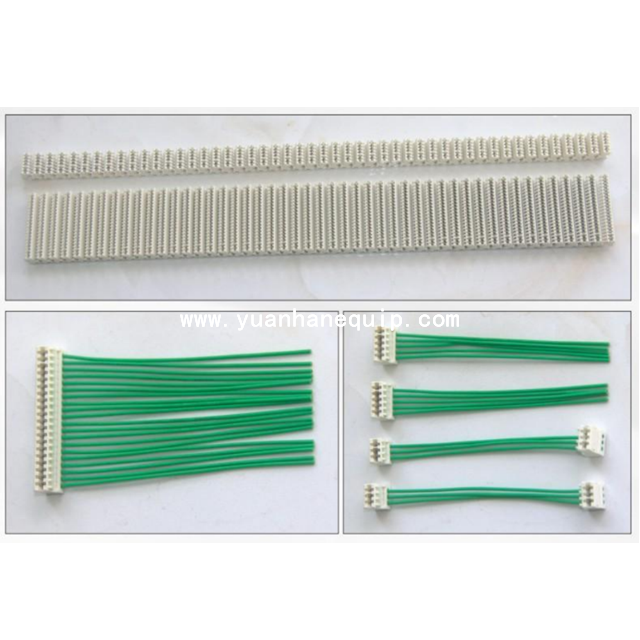

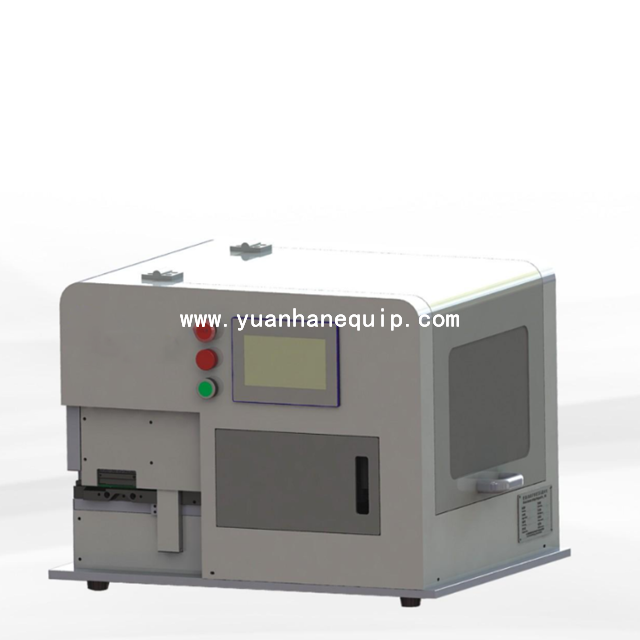

This semi-automatic piercing terminal machine is professionally engineered for insulation displacement crimping of 2P–20P connectors, widely applied in wiring harness manufacturing across electronics, home appliances and automotive industries.
|
Model:
|
|
|
Brand:
|
|
○ Adopts chain-belt rapid feeding design; material replacement takes only 1 minute.
○ Equipped with computerized automatic detection system: the machine automatically shuts down and displays fault causes for issues such as low air pressure or motor malfunction, enabling quick and convenient troubleshooting.
○ Outstanding merits include easy setup and short parameter adjustment time, greatly cutting down machine commissioning duration.
○ Crimping position is adjustable via touchscreen for higher precision and stable crimping performance.
○ Supports fast product changeover within a short period.
|
Model |
YH-CPLD01 |
|
Power Supply |
Single-phase AC 220V / 50/60 Hz |
|
Air Pressure |
5–6 kgf (Dry & clean compressed air required) |
|
Function |
Insulation piercing crimping |
|
Processing Range |
2P–20P |
|
Production Capacity |
3600 PCS/hour (subject to product specification) |
|
Crimping Precision |
±0.01 mm |
|
Dimensions |
L730mm × W550mm × H520mm (excluding protruding parts) |
