Cable Double-end Terminal Crimping and Insulation Sleeves Inserting Machine Cable Double-end Terminal Crimping and Insulation Sleeves Inserting Machine

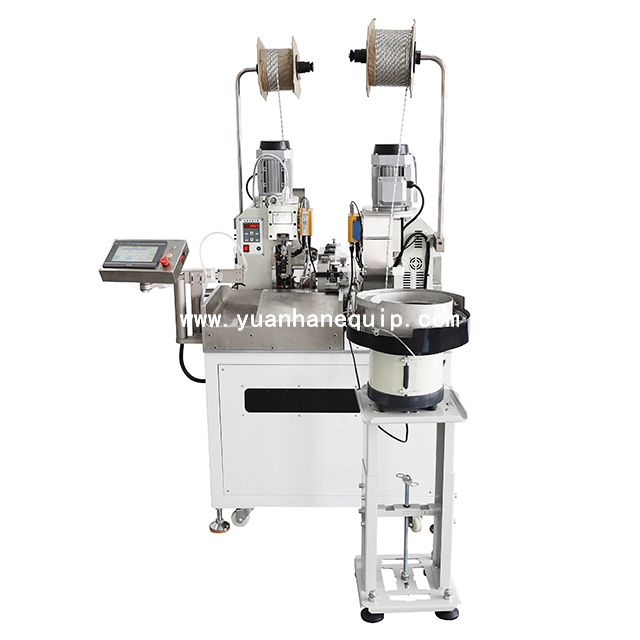

This is a fully automatic cable cutting, stripping, two-end crimping and terminal insulation sleeves inserting machine.

Model:
  • YH-H02
Brand:
  • Yuanhan
Share to:
Features
Specifications

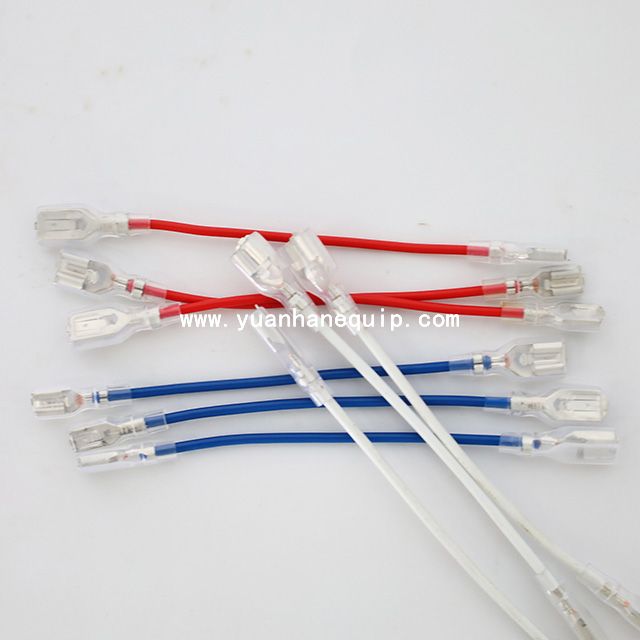

○ Function: cable cutting, stripping, two-end crimping and terminal insulation sleeves inserting

○ Processing wire range: AWG#10-AWG#24

Model YH-H02
Accuracy ±0.1MM
Capacity 1700pcs/h
Detection stripping detection, air pressure detection, bad terminal detection
Wire range AWG#10-AWG#24
Stripping length 3-10MM
Crimping force 2.0-4.0T
Control method Mitsubishi PLC control
Air pressure 0.4MAP-0.5MA
Dimension 1300x800x1330
Weight 450KG
×
