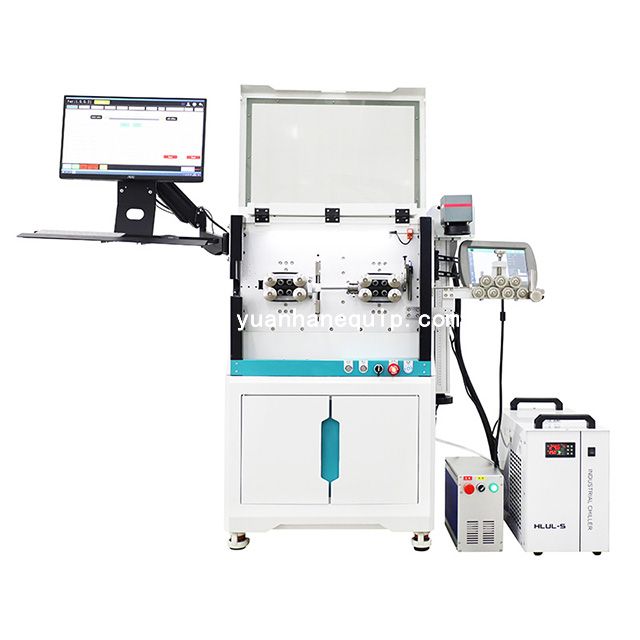

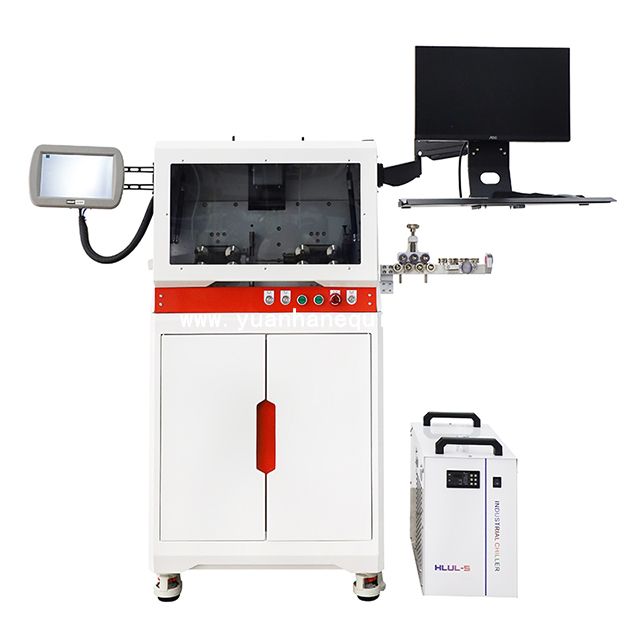

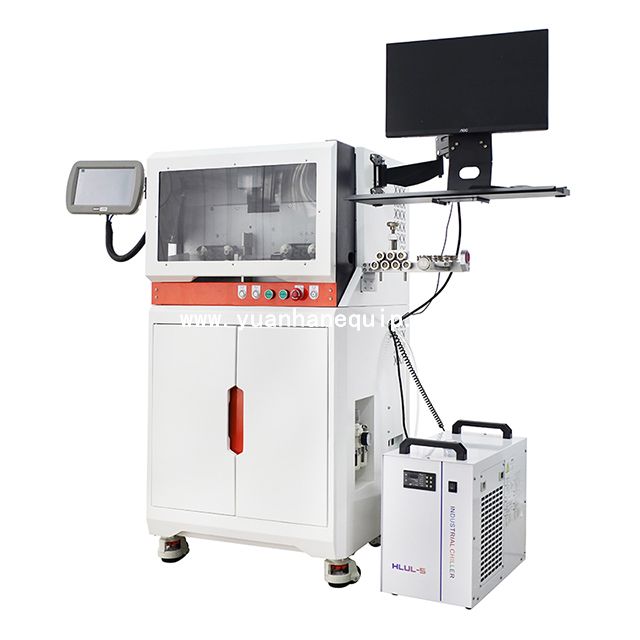

Our wire laser marking and stripping machine is a cutting-edge solution for precision marking and stripping of wires. This advanced machine is equipped with state-of-the-art laser technology, allowing for accurate and consistent marking of wires with high speed and efficiency.
|
Model:
|
|
|
Brand:
|
|
○ The machine is designed to handle a wide range of wire sizes and types, making it versatile and adaptable to various industrial applications. With its user-friendly interface and intuitive controls, operators can easily program the machine to meet specific marking and stripping requirements.

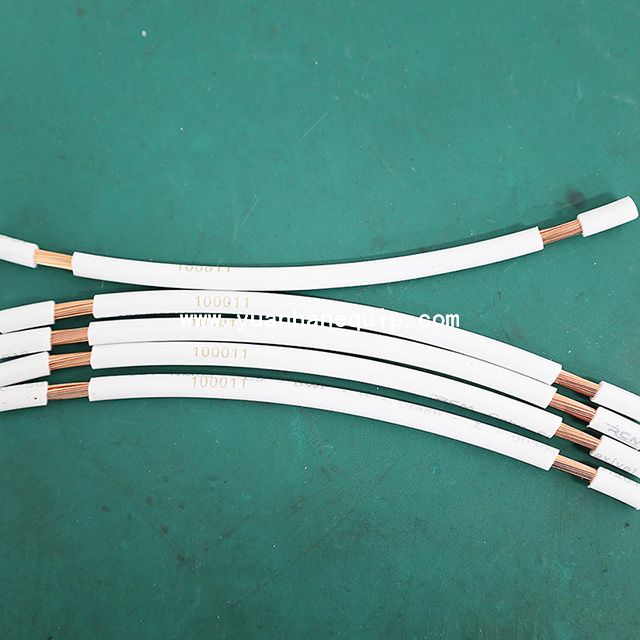

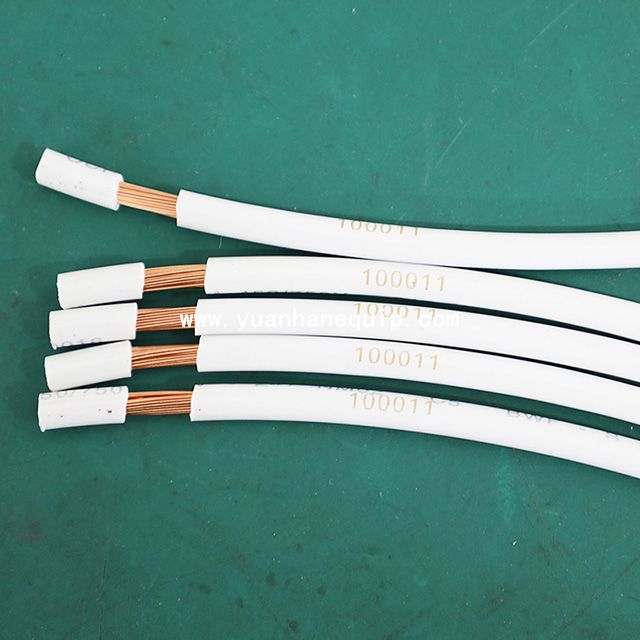

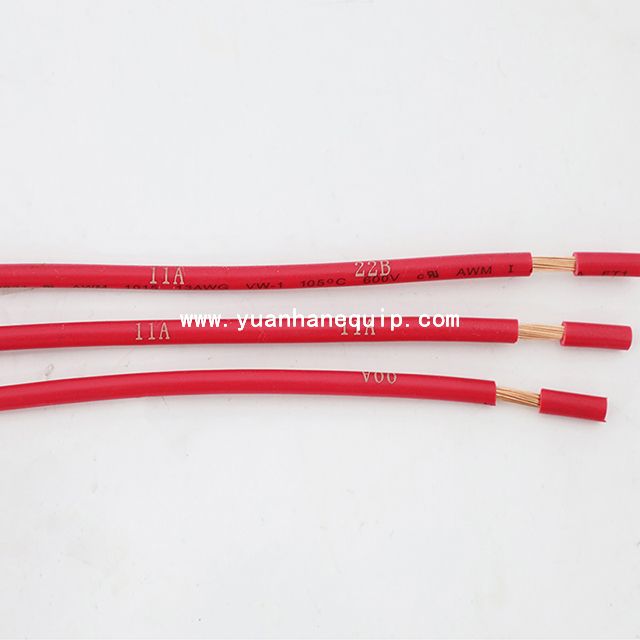

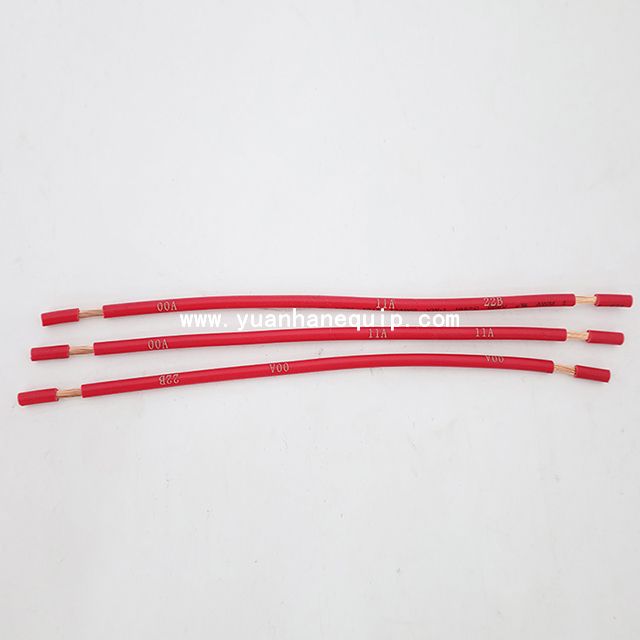

○ In addition to its marking capabilities, this machine also offers stripping functionality, allowing for the removal of insulation from wires with precision and accuracy. This feature is essential for applications where clean and precise wire stripping is required.
○ Our wire laser marking and stripping machine is a reliable and efficient solution for industries that demand high-quality wire marking and stripping. Its advanced features and capabilities make it an essential tool for improving productivity and ensuring consistent results in wire processing operations.
| Model | YH-JG603 |

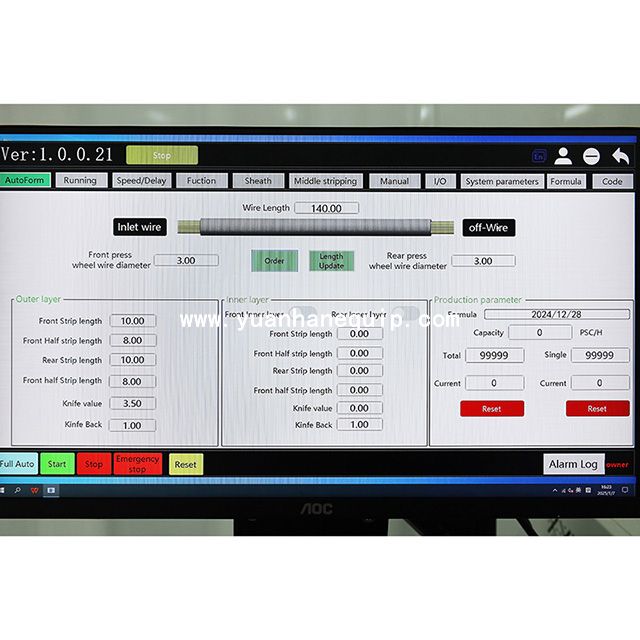

| Display | 7-inch man-machine interface |
| Function | cable cutting, outer jacket and inner conductor stripping |
| Wire type | single core wire, multi-core cable, sheathed cable, PVC cable, etc. |
| Processing range | 0.75 - 30 mm2 |
| Cutting length | 1mm-999999.99mm |
| Cutting tolerance | within 0.002*L (L=cutting length) |
| Stripping length |
side A full stripping: 1-200mm, side A half stripping: 1-1500mm side B full stripping: 1-100mm, side B half stripping: 1-300mm |
| Max. diameter of guiding pipe | Φ18 |

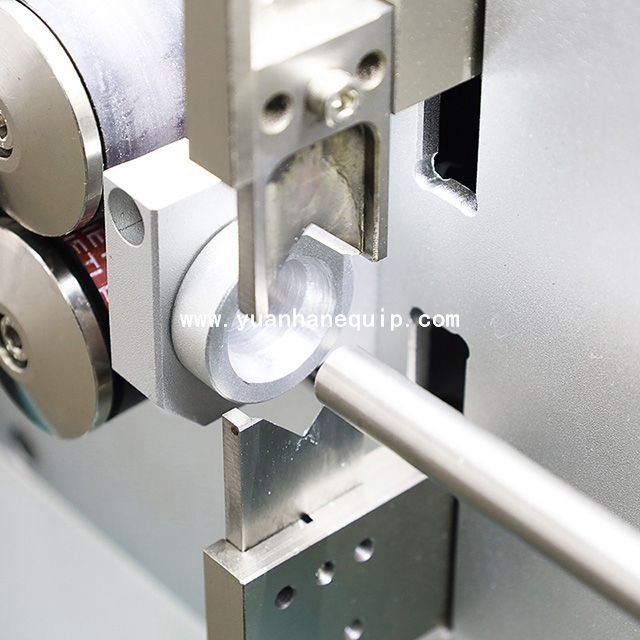

| Tool material | high speed steel |
| Productivity | 3500 PCS/hour, (sheathed wire 900pcs/H) according to the length and size of the wire |
| Drive mode | 16-wheel drive (feeding stepper motor, tool post servo motor); servo motor feeding optional |

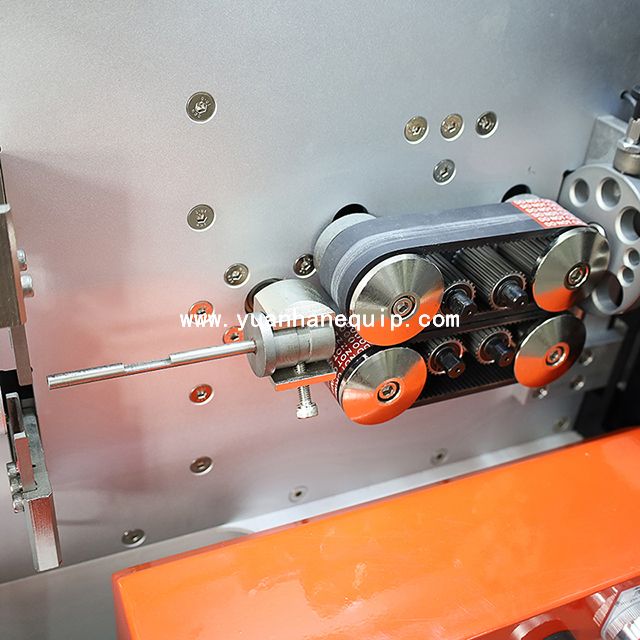

| Wire feeding method | belt feeding, no embossing and no scratches on the cable |
| Lifting operation mode | digital adjustment of the height of the pinch roller |
| Power supply | AC220V 50/60Hz; 110V 50/60Hz optional |
| Air source | 0.5Mpa clean air source |
| Dimensions | 68*48*55cm (L*W*H) |
| Weight | 95kg |
