Our full servo wire laser marking and stripping machine is a cutting-edge solution for precision marking and stripping of wires. This advanced machine is equipped with full servo technology, ensuring unparalleled accuracy and efficiency in the wire processing industry.
|
Model:
|
|
|
Brand:
|
|
○ This machine uses a full HD color touch 7-inch LCD display plus a single-chip self-developed motion control board, which is more efficient and stable.
○ This machine uses a full metal straightener with a one-button quick switch to press the wire, making the wire straighter and more accurate. The wire feeding wheel can be equipped with rubber wheels, iron wheels, and leather wheels. The electric conduit feeds the wire, and the knife holder uses imported materials for heat treatment and grinding. Save labor and time and improve production efficiency.

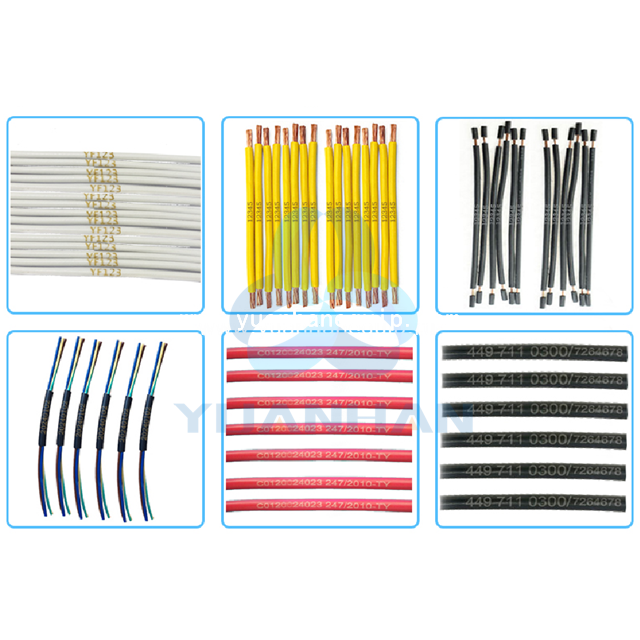

○ It is mainly used for electronic wires, silicone wires, Teflon wires, glass woven cotton, isolation wires, coaxial wires, sheathed wires, etc. Automatically complete cutting, peeling, half peeling, full peeling, and laser coding in one go.

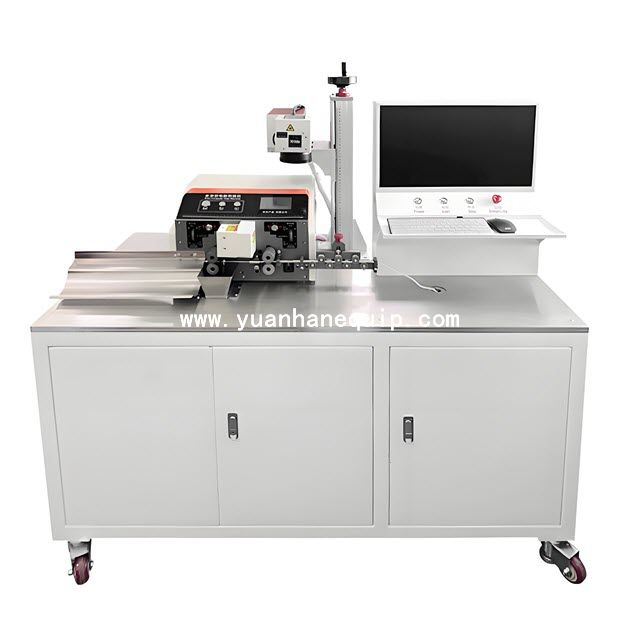

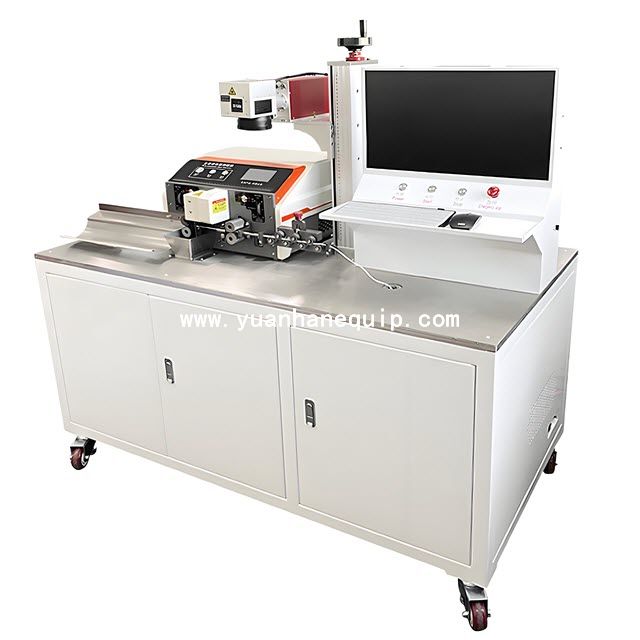

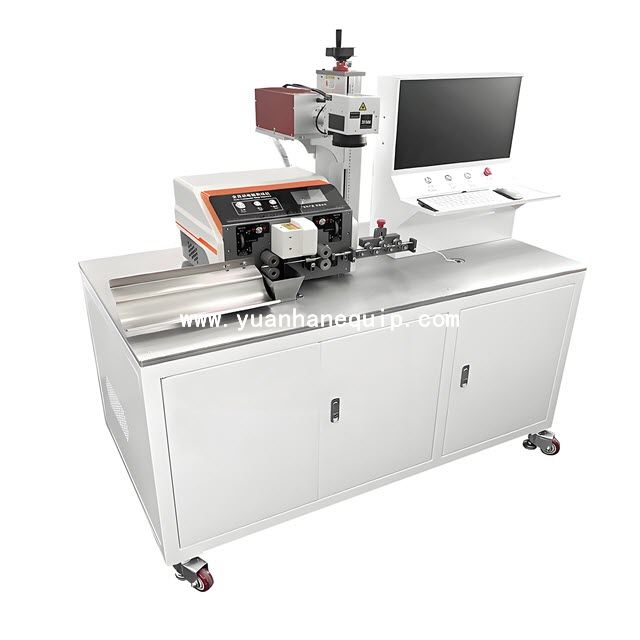

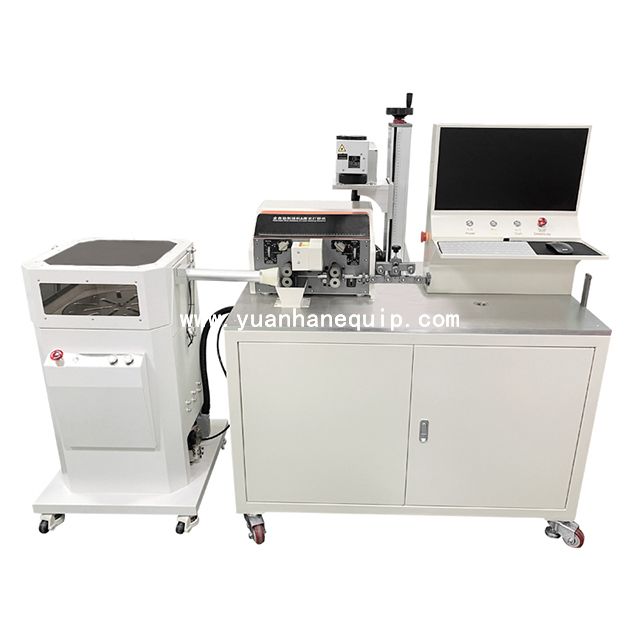

○ The fully automatic wire cutting and stripping laser coding machine is composed of a computer host + industrial control host + display screen + high-speed wire cutting machine. It is a fully automatic equipment integrating marking, wire cutting and stripping at both ends. It uses imported lasers with high electro-optical conversion efficiency, stable operation, low cost and no consumables. The advanced laser coding technology enables the wire to be easily marked with the required code, serial number, date, various barcodes, etc. before cutting and stripping. It can also be flexibly modified according to the different needs of customer production lines.
| Model | YH-JGDMB01 |
| Power supply | 220V~50-60Hz |
| Operation page | 7-inch touch screen display |
| Cutting tolerance | 0.002*L MM |
| Pulse equivalent | No error within 1M |
| Stripping length | front end 0-300mm; rear end 0-90mm |
| Guiding pipe | control method: servo motor |
| Number of motors | 4 (respectively control: inlet/outlet wire wheel/knife holder/conduit) |
| Cutting length | 0.1-99999.9mm |
| Scope of application | 0.1-6mm² |
| Conduit | 3/4/5/6 |
| Driving mode | 4-wheel drive |
| Marking mode | reverse, regardless of forward or reverse, fixed line speed, static marking |
| Capacity | about 4000-6000 pcs (depending on the material) |
