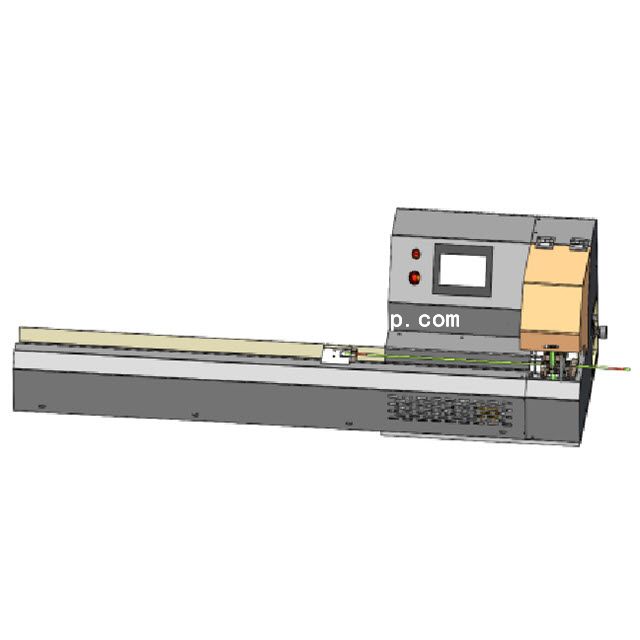

This long-stroke left-pulling tape wrapping machine is suitable for multi-point winding of single or multiple wire harnesses.
|
Model:
|
|
|
Brand:
|
|
○ The tape wrapping spacing and number of wraps can be digitally adjusted to suit your needs, making adjustments easy.
○ It operates within a wide range of conditions, regardless of harness length, number of wrapping points, or tape spacing.
○ After manually placing the harness, the device automatically clamps it. After wrapping is complete, the left-side clamping jaws move the harness to the next wrapping position, and the process repeats. This process can be repeated to complete multiple wrapping points.
○ This simple and convenient operation significantly reduces labor intensity.
|
Model |
YH-QY305 |
|
Working Environment |
0 - 40℃ (ambient temperature) |
|
Suitable Air Pressure |
0.4 MPa - 0.6 MPa |
|
Equipment Dimensions |
L 2000mm X W 550mm X H 500mm |
|
Equipment Weight |
95 Kg |
|
Equipment Material |
Mainly processed and assembled from 45# and AL6061 materials |
|
Power Supply |
Two - phase, AC220V, 50HZ |
|
Equipment Power |
250 W |
|
Corresponding Workpiece |
Multi-point winding work for single or multiple wire harnesses |
|
Work Efficiency |
4.5s / winding point (Efficiency is negatively correlated with the number of winding points) |
|
Tape Material |
PVC, crepe paper tape, cloth - based adhesive tape, etc. |
|
Winding Position Accuracy |
Within ±2 |
|
Winding Overlap |
Within ±2 |
|
Left - pull Stroke Range |
Left - pull stroke length ≤1500mm |
|
Workpiece Diameter Range |
3mm ≤ Diameter of workpiece to be processed ≤6mm |
|
Tape Width Range |
Tape width ≤30mm |
|
Cutting Length Range |
20mm ≤ Tape cutting length ≤60mm |
|
Distance from End Position |
Distance between tape edge and outermost end of workpiece ≥80mm |
