This machine is suitable for processing heat shrink tubing with a length of ≤1000mm. The travel and speed of the heater can be adjusted according to production requirements. It can work continuously for 24 hours without interruption.
|
Model:
|
|
|
Brand:
|
|

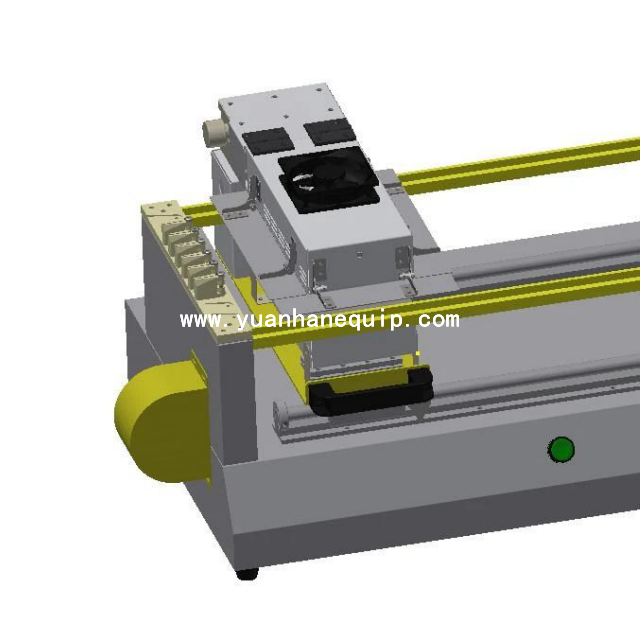

○ This machine uses infrared lamps as heat sources, and heats the upper and lower parts in a controlled manner. The upper and lower heaters each have two heating tubes. The upper heater is height-adjustable and can be flipped up and opened.

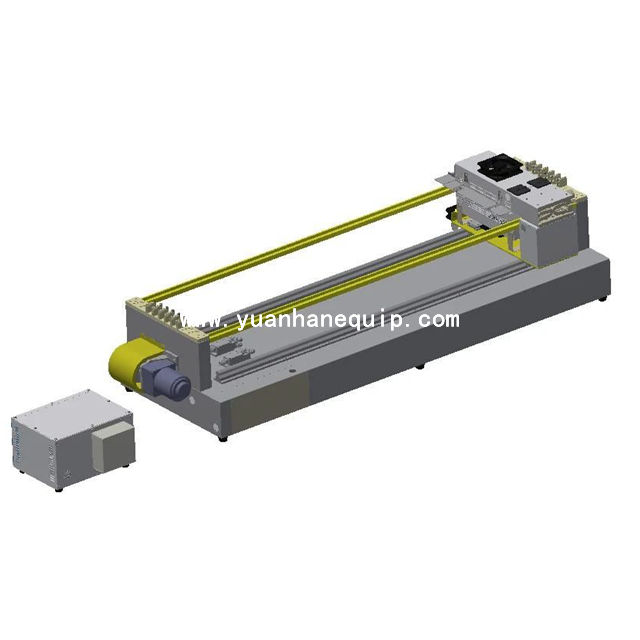

○ The heater is installed on two guide rails. When heating the product, it is driven by the motor reducer to move at a constant speed. After heating is completed, the heater needs to be manually pulled back to its original position.
|
Model |
YH-RS1000L |
|
Dimensions |
1555*458*382mm |
|
Heating method |
Infrared lamp heating |
|
Heater power |
2000W ( 500W lamp tube, 4 lamp tubes in total) |
|
Heating area |
Width:45mm |
|
Heater stroke |
≤ 1000mm |
|
Heater automatic travel speed |
0-3.8m / min Adjustable |
|
Stroke adjustment method |
Manual adjustment |
|
Applicable product length |
≤ 1000mm |
|
Applicable product diameter |
≤ 30mm |
|
Power requirements |
AC 220V 50HZ |
|
Machine power |
2500W |
