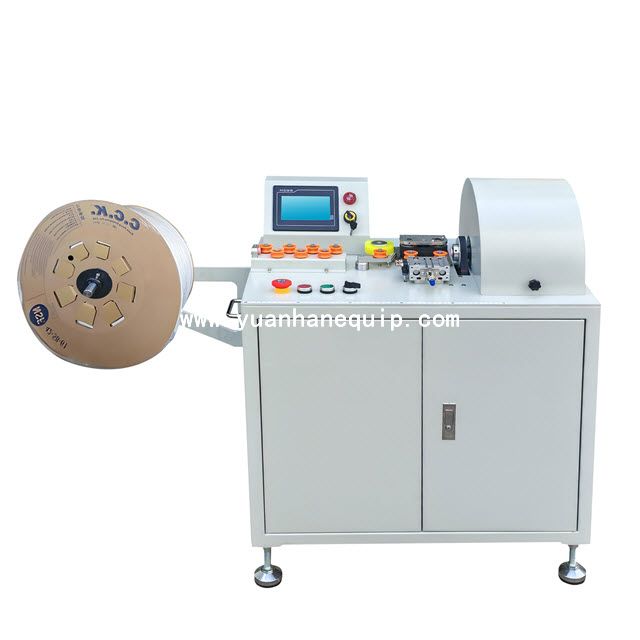

Our 360° tube marking and cutting machine is a versatile and efficient tool designed for the precise marking and cutting of PE pipes and air pipes commonly used in water purifiers. This machine offers a comprehensive solution for manufacturers looking to streamline their production process and ensure accurate and consistent results.
|
Model:
|
|
|
Brand:
|
|
○ High-precision motor and encoder length measurement ensure stable and neat length
○ Touch screen switches between Chinese and English, the interface is simple and easy to operate
○ Special program, single-step and continuous work can be switched freely
○ 360-degree marking at both ends when cutting pipes, the lines are clean and not dragged
○ The length of the marking position can be adjusted to facilitate the insertion of different parts
○ Use long-mouth marker, the ink is evenly discharged and the lines are clear, and the color can be selected
○ Smooth cut, no deformation, no burrs
○ The looseness and length error of the pipe can be automatically corrected with one button
○ The marking function can be turned off, and the length and speed of the pipe cutting can be controlled
○ Automatic detection, automatic shutdown and alarm when there is no material or winding
| Model | YH-HXQG360 |
| Dimensions | W700×D460×H880mm |
| Weight | 50kg |
| Power | AC220V, 200W |
| Marking degree | 0-500 degrees |
| Marking length | 10-18mm (5-25mm optional) |
| Cutting tolerance | (0.2±0.002×L)mm |
| Transmission method | crawler silent conveyor |
| Tool | high-quality stainless steel |
| Tube cutting types | water purifier PE pipe, air tube, etc. |
| Tube cutting range | 5-9mm (2-15mm optional) |
| Cutting length | 1-10000mm |
| Tube cutting speed | L=100mm, about 10000pcs/hour |
| Marking speed | L=100MM, about 1800pcs/hour |
