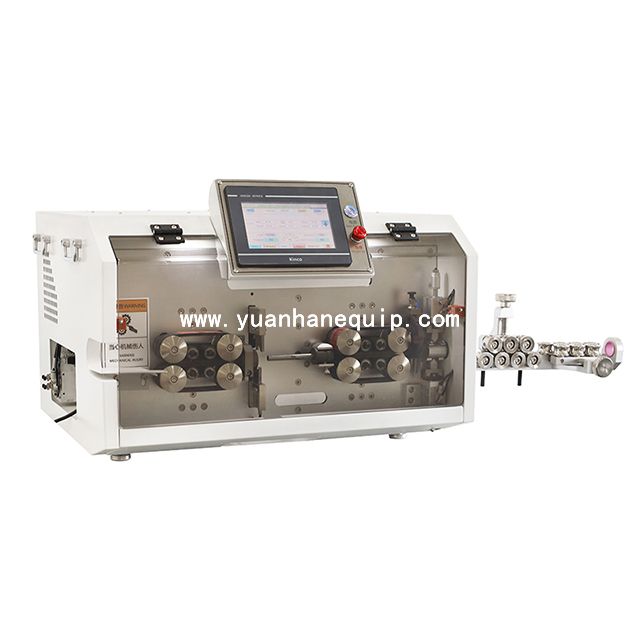

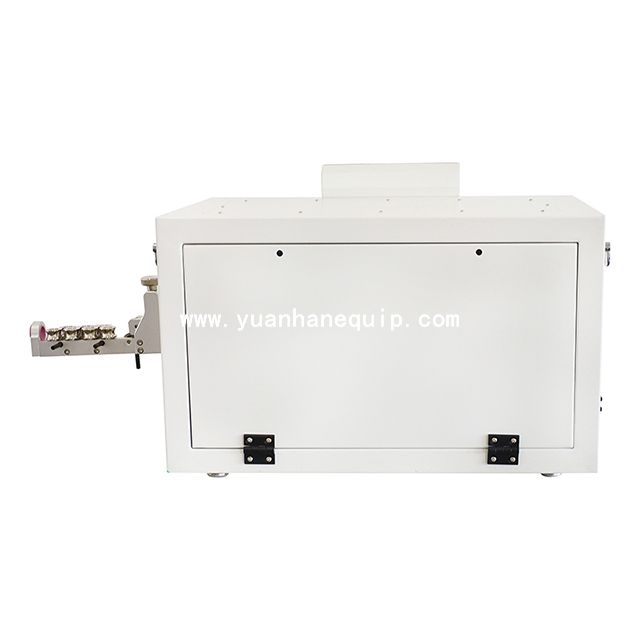

Wire Cutting and Middle Stripping Machine

This fully cable cutting and middle stripping machine is suitable for processing single-core wire, multi-core cable, shielded cable, PVC cable, etc.

Model:	YH-603Z
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Suitable for processing shielded wires, multi-layer cables, PVC wires, etc.

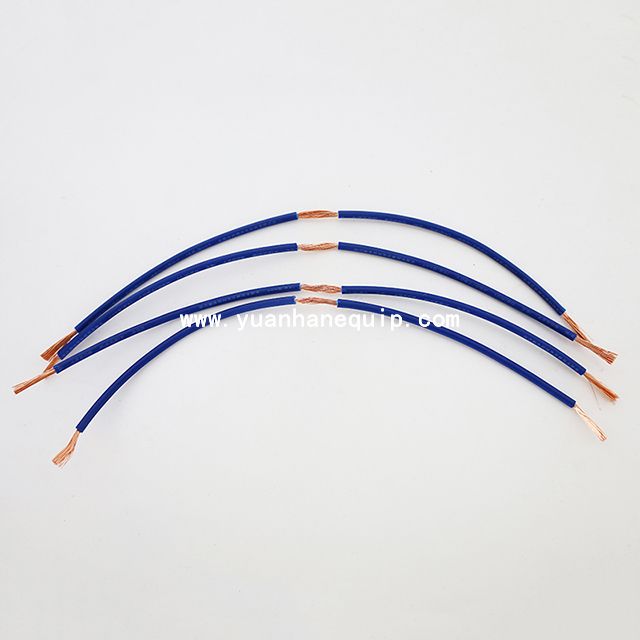

○ Middle stripping function

Multi-segment middle stripping, arbitrary interval, arbitrary stripping length, up to 50 segments

Multi-segment middle stripping, same interval, same stripping length, unlimited number of stripping segments

○ Optional: MES system, Internet of Things system, fixed-point inkjet function, external auxiliary equipment alarm;

○ User-friendly system, intuitive operation via 7'' color touch screen;

○ Modular interface, convenient for linking accessories and peripheral equipment;

○ Modular design, future upgradeable;

○ Accept non-standard customization.

Model	YH-603Z
Display mode	7-inch man-machine interface
Processing range	0.75 - 30 mm2
Cutting length	1mm-999999.99mm
Minimum total stripping length	>120mm
Cutting tolerance	within 0.002*L (L=cutting length)
Stripping length	side A full stripping: 1-200mm, side A half stripping: 1-1500mm side B full stripping: 1-100mm, side B half stripping:1-300mm
Maximum diameter allowed to pass	Φ18
Tool material	high-quality imported high-speed steel
Productivity	3500pcs/hour (depending on the length and size of the wire)
Drive mode	16-wheel drive (feeding stepper motor, knife holder servo motor, rotary knife servo motor); *full servo optional

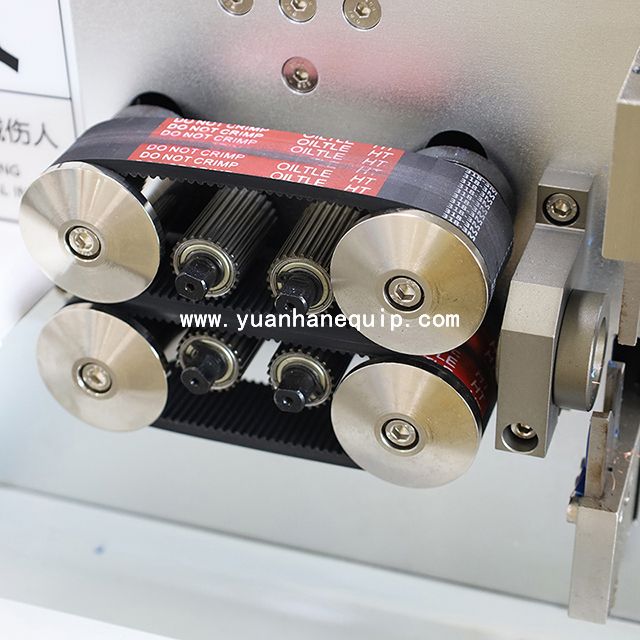

Wire feeding method	belt feeding, no embossing or scratches on the cable
Lifting operation mode	digitally adjust the height of the pressure roller
Power supply	AC220V 50/60Hz; 110V 50/60Hz optional
Air source	0.5Mpa (clean air source)
Dimensions	684855cm(LWH)
Net weight	95kg
