Multi-core Cable Connector Housing Insertion MachineMulti-core Cable Connector Housing Insertion Machine

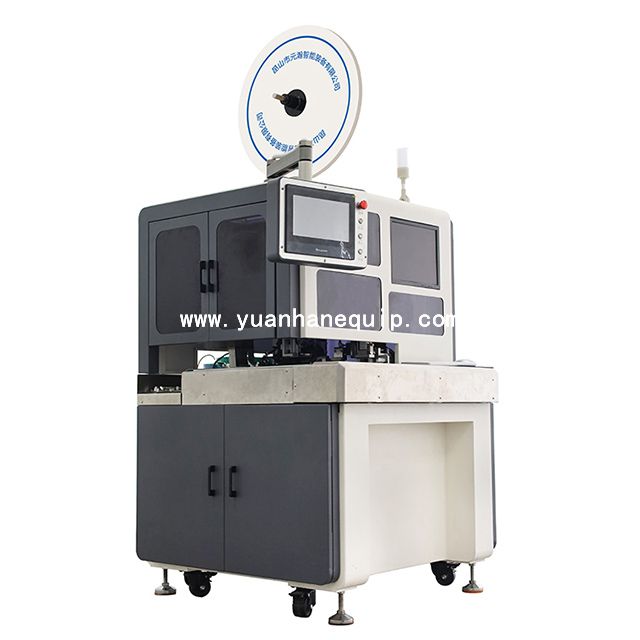

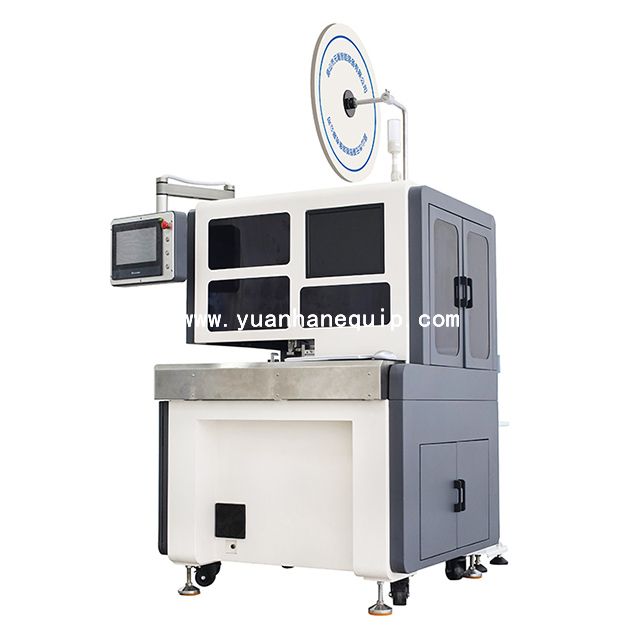

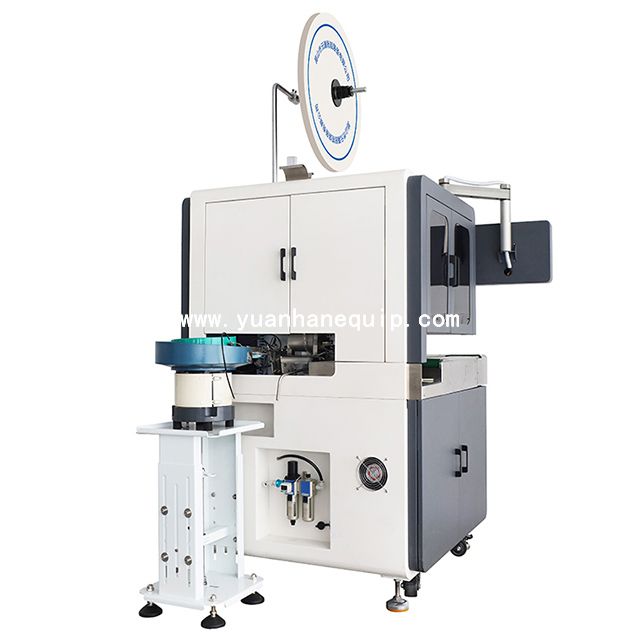

This is a semi-automatic connector housing assembly machine for multi-conductor cables. It is able to process multi-core cable stripping, terminal crimping and connector housing inserting in one pass.

Model:
  • YH-SHCJK
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Simple and intuitive touch screen

○ Function: multi-core cable stripping, terminal crimping and connector housing inserting

○ Support installing CCD visual inspection system to detect defective products

○ Adopt closed-loop stepping and servo motor drive, lead screw drive to improve accuracy, to ensure high quality products

Model YH-SHCJK
Wire size ¢0.6mm-¢2.5mm
Wire type AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, etc.
Number of core wires ≤12 cores
Outer jacket stripping length 2-5 cores ≥ 34mm, 6-12cores ≥40mm
Core wires stripping length 0.5-10mm, stripping deviation: 0.05-0.1mm
Terminal type open horizontal feed continuous terminal
Crimping force 1.5T
Power 2000W, 200V-240V 50/60Hz
Gas source 0.5-0.6MPa
Dimensions L1265xW1200xH1750mm
Weight 300KG



×
