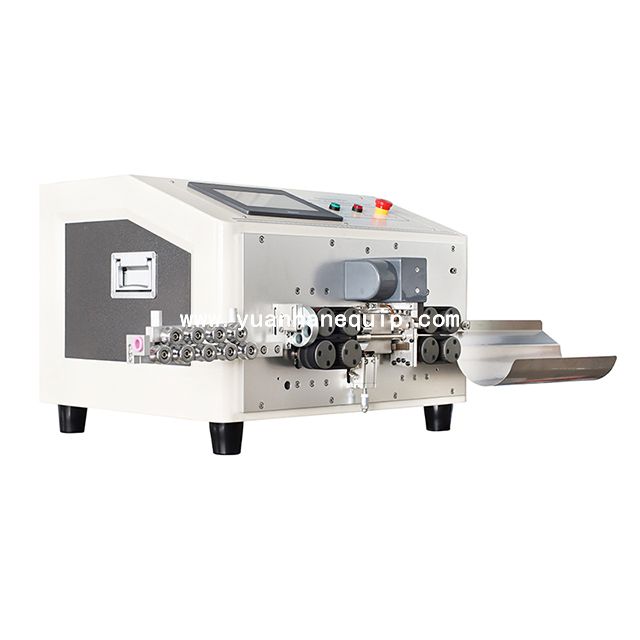

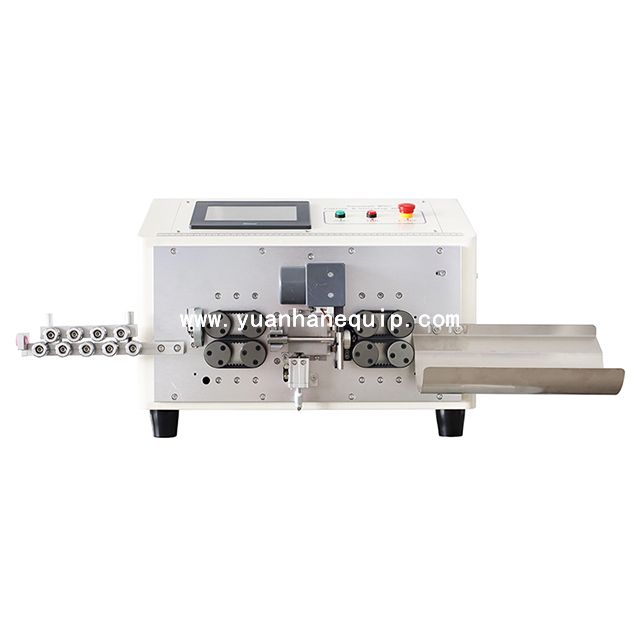

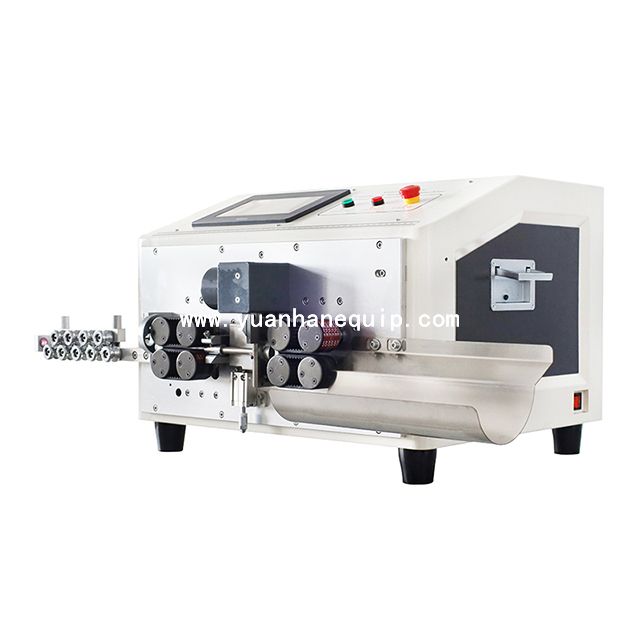

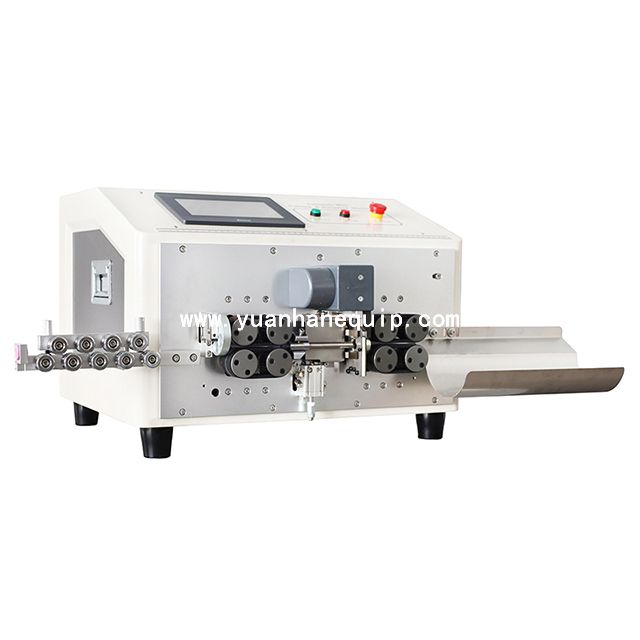

Multi-core Wire Cutting and Stripping MachineMulti-core Wire Cutting and Stripping Machine

Our multi-core wire cutting and stripping machines are mainly used to process multi-core round sheathed wires such as power plug wires, lamp rubber sheathed wires, sensor sheathed wires, data cables, shielded braided sheathed wires, etc.

Model:
  • YH-880C
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Wire types: power plug cables, lighting rubber-jacketed cables, sensor cables, data cables, shielded braided cables, and other multi-core round-jacketed cables.

○ Functions: Total length cutting, outer and inner core stripping.

○ A pneumatic clamp has been designed to comb the core wires for smooth stripping.

○ The design features reversible blades: a round blade for outer stripping and a flat/threaded blade for inner stripping.

○ The 8-wheel crawler-type wire feeder provides enhanced friction and eliminates surface marks, ensuring precise cutting length and accurate stripping. A bidirectional lead screw pressure wheel aligns the wire size with the center of the cutter blade, ensuring a smooth stripping cut without scratching the core wire.

○ Fully computerized numerical control controls wire length, cutter depth, stripping length, and wire pressure are all controlled via a simple, user-friendly touchscreen interface.

Model

YH-880C

Input Power Supply

AC220V 50/60HZ

Dimensions

L570mm x W550mm x H410mm

Weight

53kg

Overall Power

2.0KW

Rated Power

0.8KW

Working Air Pressure

0.5 - 0.8MPa

Wire Core for Cutting

2 - 8 cores

Cutting Wire Diameter

2 - 10mm

Cutting Wire Length

0.01mm - 999999.99mm

Stripping Head Length

Outer layer 0.01mm - 200.00mm

Stripping Tail Length

Outer layer 0.01mm - 70.00mm

Stripping Head Length (Core Wire)

Core wire 0.01mm - 20.00mm

Stripping Tail Length (Core Wire)

Core wire 0.01mm - 20.00mm

Blade Material

Imported high - speed steel

Wire Stripping Precision

Silent hybrid stepping motor 0.01mm

Detection Function

Wire Breakage Detection

Conduit Swing

Pneumatic

Pressure Adjustment

Bidirectional screw computer - adjusted pressure

Wire Feeding Method

8 - wheel crawler - type wire feeding

Transmission Structure

Precision double - screw, guide bush column, gear rack

Capacity per Hour

Approximately 600 - 1000 pieces

Program Storage

Serial number 00 - 999

Auxiliary Functions

Automatic in/out wire, timed start, point - by - point adjustment

Display Method

Full - touch 7 - inch color display screen



×
