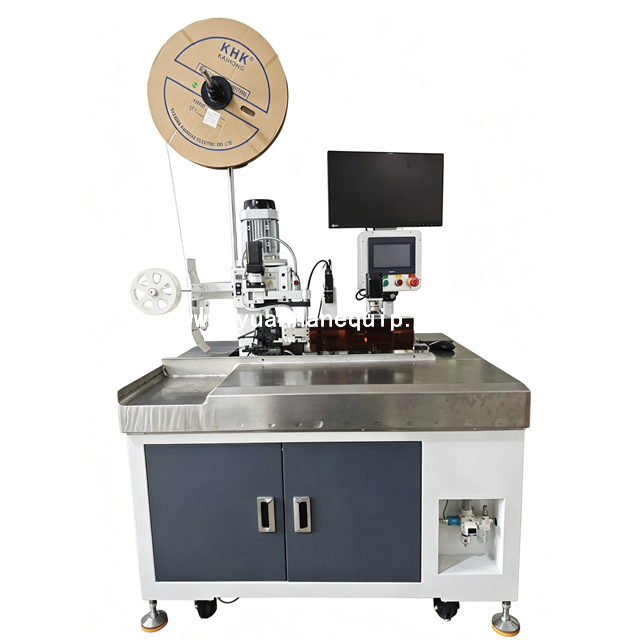

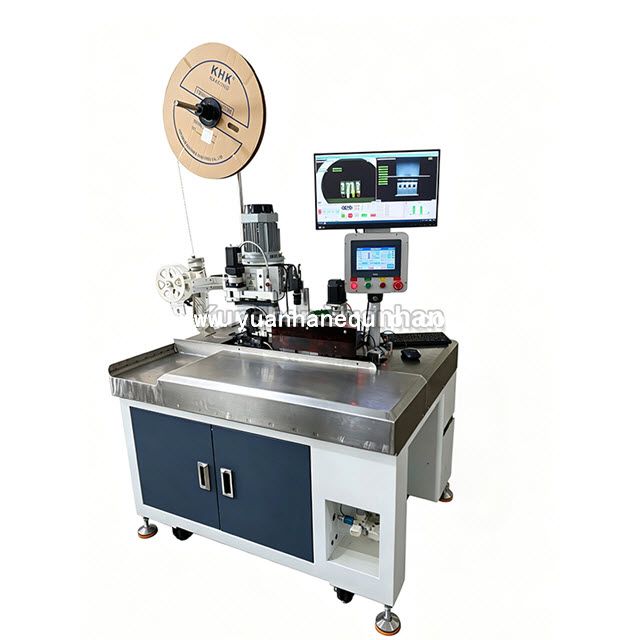

This semi-auto multi-conductor cable housing insertion machine integrates automatic stripping, terminal crimping and housing insertion, equipped with AI vision inspection and servo control for stable, high-efficiency multi-core sheathed wire harness production.
|
Model:
|
|
|
Brand:
|
|
○ This semi-automatic machine adopts man-machine collaborative operation with intuitive workflow and low operation threshold.
○ Operators only complete pre-work including wire feeding and strand alignment; the machine automatically executes core processes: stripping, terminal crimping and housing insertion.

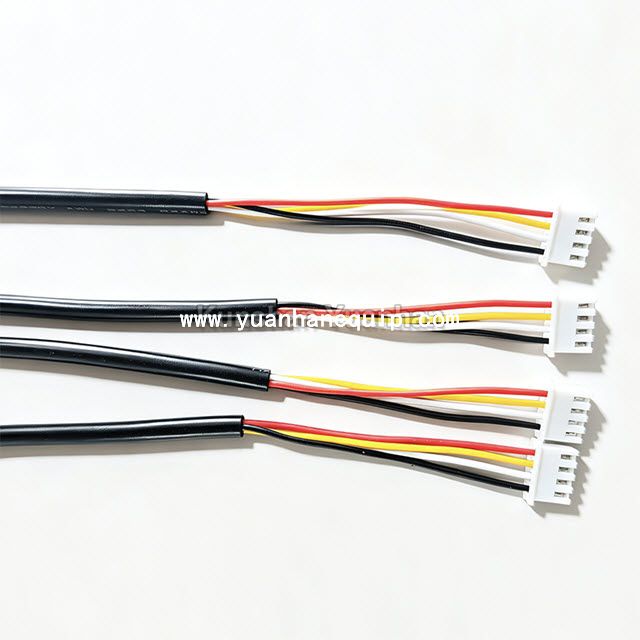

○ It accommodates 2-10-core sheathed cables and multi-core wires, with customizable terminals and plastic housings.
○ Controlled by STM32 MCU, the equipment runs stably with low failure rate for long-duration continuous production. It delivers much higher throughput than full manual processing, boosting harness output and cutting production costs significantly.
|
Model |
YH-HTCJK05 |
|
Overall Dimension |
L1106mm × W910mm × H1600mm |
|
Net Weight |
Approx. 350 kg |
|
Display |
Full-color LCD touch screen, bilingual display (Chinese / English) |
|
Operation |
Touchscreen input control |
|
Applicable Wire |
Multi-core sheathed cable |
|
Blade Material |
Imported high-speed steel |
|
Working Air Pressure |
0.5–0.7MPa |
|
Power Supply |
AC220V, 50/60Hz |
|
Rated Power |
1000W |
|
Crimp Capacity |
2T (customizable crimp force available) |
|
Core Functions |
Automatic wire stripping / automatic terminal crimping / automatic housing insertion |
|
Standard Inspection |
Air pressure test + AI vision inspection (core wire / terminal / plastic housing checking) |
|
Optional Accessory |
Crimp force monitoring (not equipped on standard machine, optional upgrade) |
