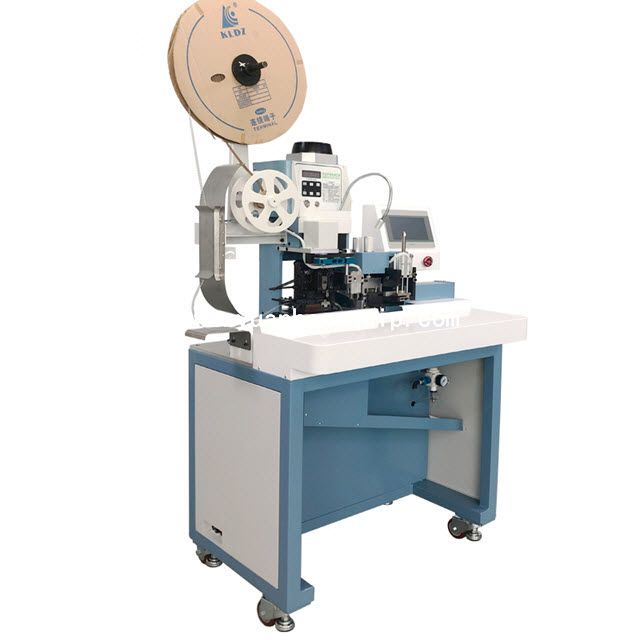

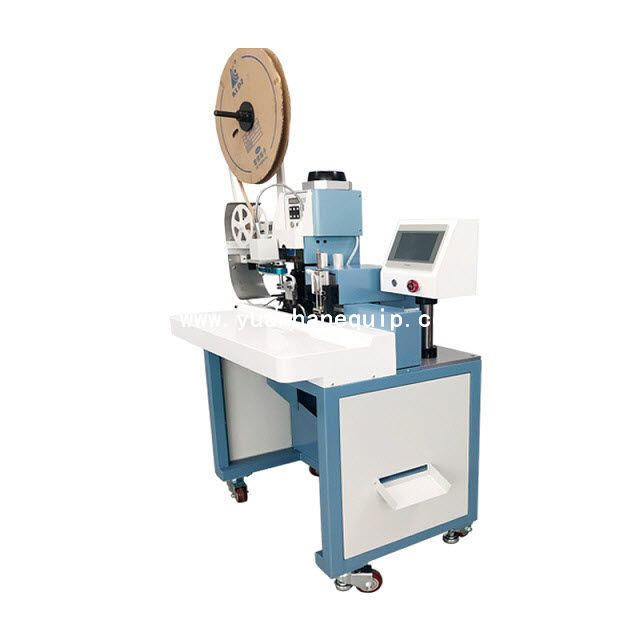

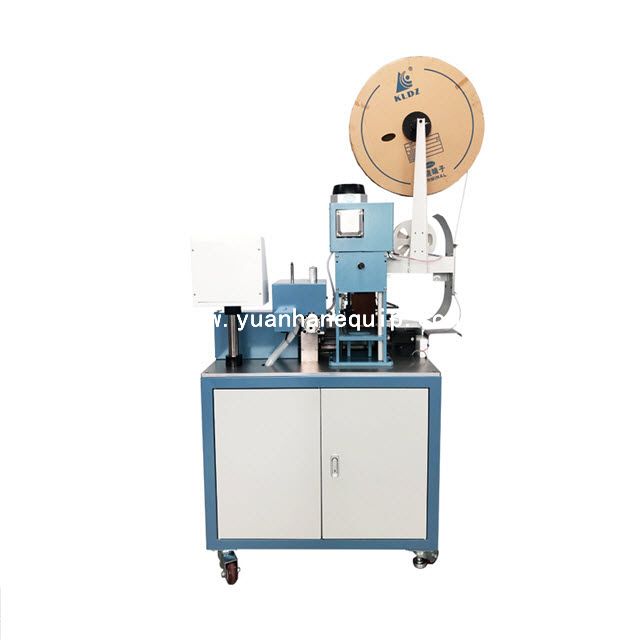

Our automatic wire arrangement multi-core stripping and crimping machine is a state-of-the-art solution for efficiently processing multi-core cables. This machine is designed to streamline the wire arrangement, stripping, and crimping process, saving time and ensuring precise results every time.
|
Model:
|
|
|
Brand:
|
|
○ Stripping and terminal crimping are completed in one operation, which is convenient and fast. Frequency conversion control is adopted to realize soft start, soft stop, and no mechanical wear.
○ The card die and stripping components are independent of each other. The card die can be replaced conveniently, the stripping depth is adjustable, and the production adaptability is strong.
○ It can perform independent stripping and terminal crimping operations, can run automatically or manually, and the time of each action can be adjusted according to the specifications of the wire and terminal.
○ The whole machine adopts PLC program control, a 7 - inch touch screen for the human - machine interface, and pneumatic components and valves, which are durable.
○ It has a special device for recycling scraps, ensuring clean operation.
|
Model |
YH-BD030L |
|
Power supply |
220V 50-60Hz |
|
Power |
0.75KW |
|
Dimensions |
L800 x W600 x H1350mm (excluding protrusions) |
|
Net weight |
118KG |
|
Processing area |

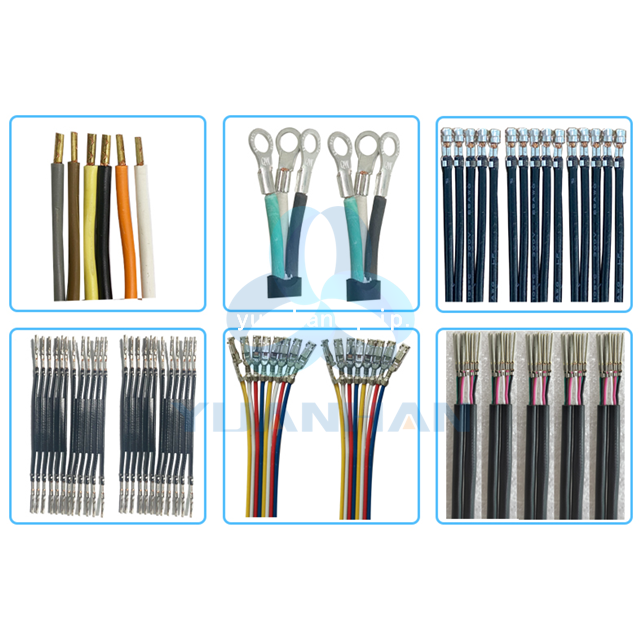

0 - 20 cores, flat cable 0 - 20P (depending on the wire) |
|
Stripping Length |
0 - 25mm |
|
Stroke |
30mm |
|
Crimping ability |
2.0T |
|
Applicable mold |
Precision horizontal feeding/direct feeding |
|
Capacity |
About 6800 - 8000pcs/hour (depending on the wire) |
|
Auxiliary function |
Paper receiver, waste cutting, waste suction |
