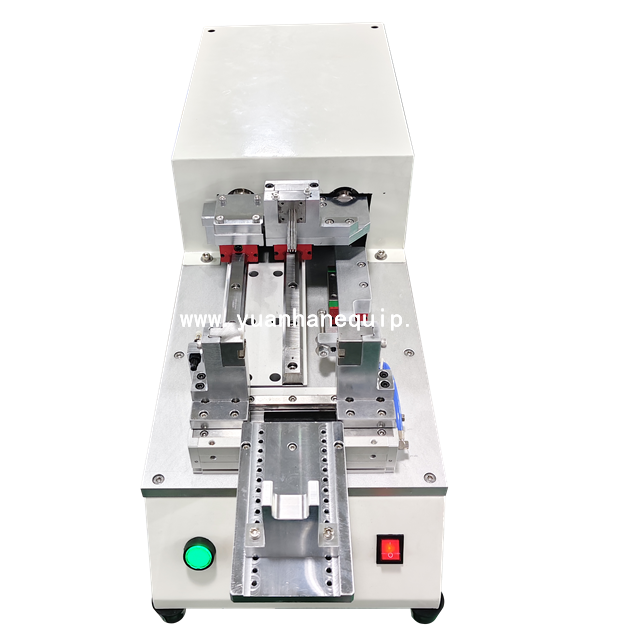

Introducing our semi-automatic multi-hole rubber sleeve inserting machine, designed to streamline the process of inserting rubber sleeves into various products with precision and efficiency. This machine is equipped with advanced technology and features to meet the demands of industrial production.
|
Model:
|
|
|
Brand:
|
|

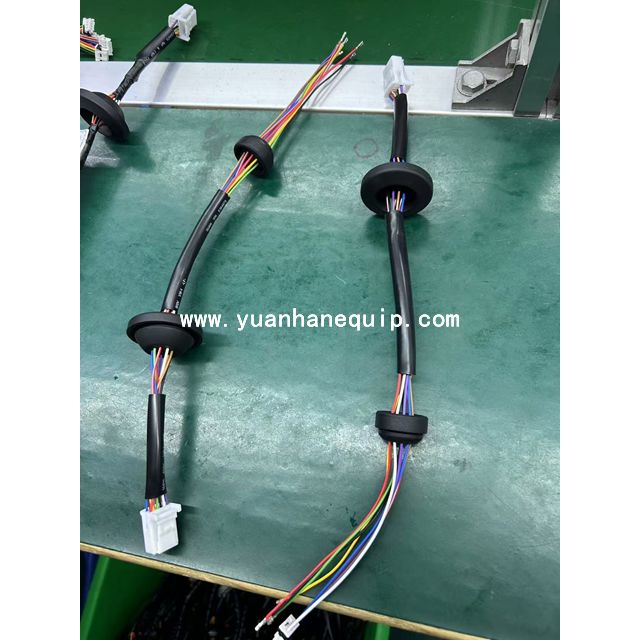

○ Function: Used for waterproofing vehicle light wiring harnesses through porous rubber sleeves.
○ The semi-automatic operation of this machine allows for ease of use and increased productivity. With the ability to insert multiple rubber sleeves simultaneously, this machine is perfect for high-volume production environments. The multi-hole design ensures accurate placement of the rubber sleeves, resulting in a consistent and professional finish every time.
○ Our machine is built to last, with a durable construction that can withstand the rigors of daily use in a manufacturing setting. The user-friendly interface makes it easy to adjust settings and monitor the progress of each operation. Additionally, safety features are integrated to protect operators and prevent accidents.
○ Whether you are in the automotive, electronics, or other industries that require rubber sleeve insertion, our semi-automatic multi-hole rubber sleeve inserting machine is the ideal solution. Increase efficiency, accuracy, and overall production quality with this innovative machine.
○ High production efficiency, saving 2-5 people and reducing labor intensity.
○ Highly compatible, the machine can thread a variety of rubber sleeves with a 15-minute changeover time.
○ One-touch switching between single and dual rubber sleeve functions (customizable).
| Model | YH-300200 |
| Maximum rubber sleeve dimensions | 30mm diameter, 20mm thickness, square 30*30*20mm. |
| Productivity | Average 5s/hole, with slight variations in thread length and molded case positioning. |
| Needle assembly changeover | 3 minutes, tube assembly changeover: 3 minutes, and claw assembly changeover: 9 minutes. |
| Positioning | The distance between the plastic shell and the rubber sleeve must be at least 70 mm (customizable). |
| Dimensions | L1020 x W440 x H340 |
| Weight | 45kg |
