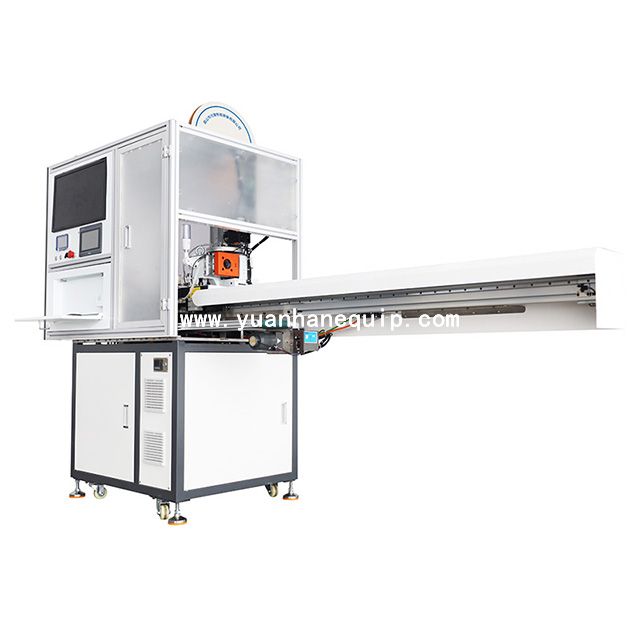

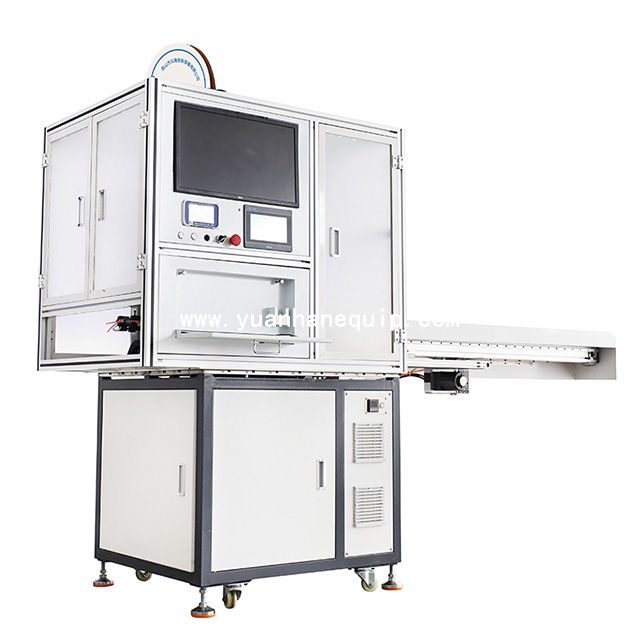

The fully automatic multi-core cable single end crimping and tinning machine is a cutting-edge piece of equipment designed for efficient and precise cable processing. This machine is equipped with advanced technology that allows for seamless operation and high-quality results.
|
Model:
|
|
|
Brand:
|
|

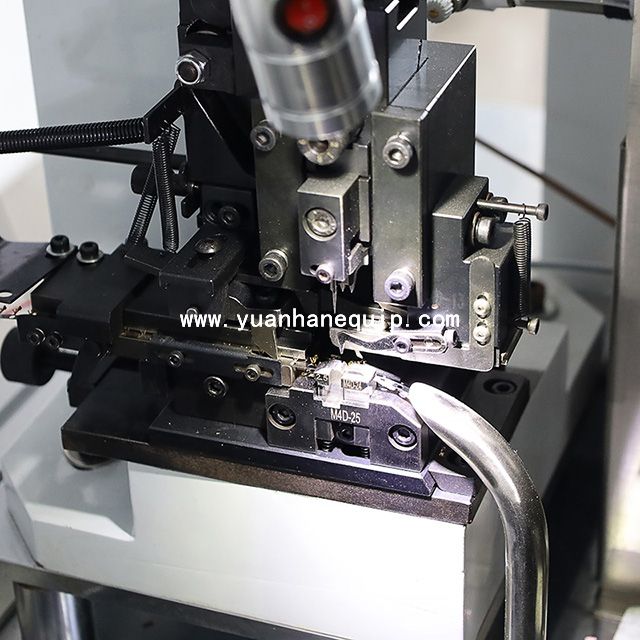

○ Key features of this machine include its fully automatic functionality, which eliminates the need for manual intervention and ensures consistent performance. The multi-core cable capability allows for the processing of multiple cables simultaneously, saving time and increasing productivity. The single end crimping and tinning capabilities ensure secure connections and reliable performance.
○ This machine is built to the highest standards of quality and durability, making it a reliable and long-lasting investment for any manufacturing operation. With its user-friendly interface and intuitive controls, operators can easily set up and operate the machine with minimal training.
| Model | YH-HTZD01 |
| Power supply | AC 220V/50HZ |

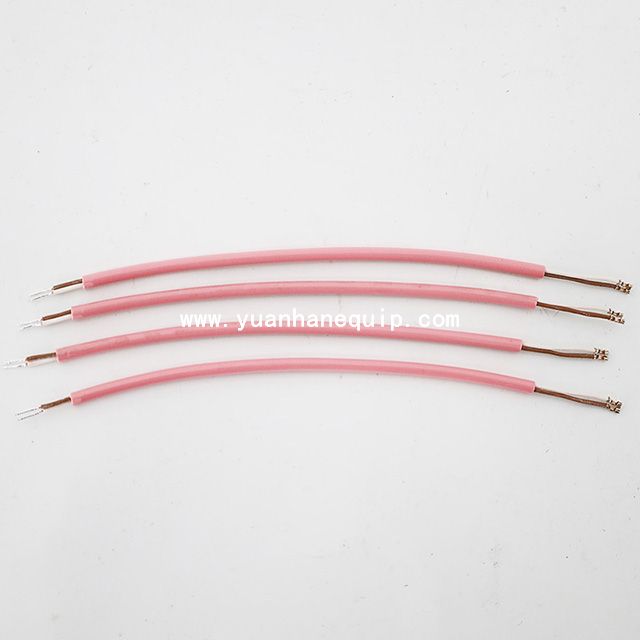

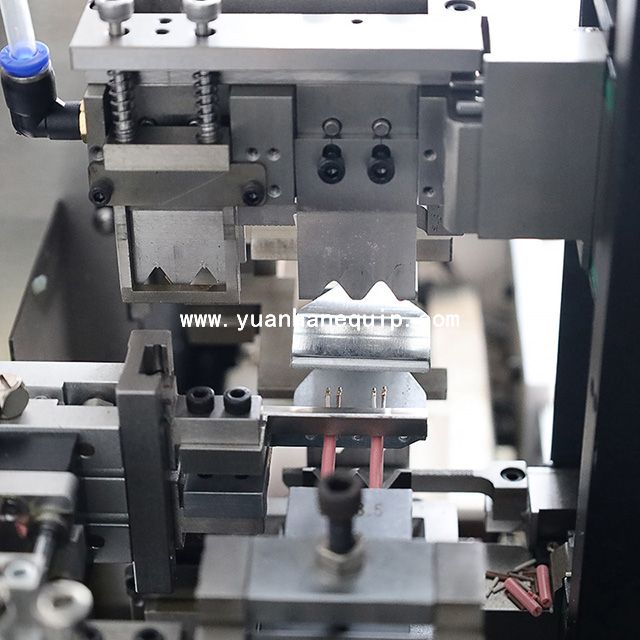

| Main functions | Wire cutting, double-end stripping, single-end crimping, single-end twisting and tinning |
| Side A outer jacket stripping length | 10mm-45mm (customizable) |
| Side A core wire stripping length: 1mm-15mm | 1mm-15mm |
| Side B outer jacket stripping length | 10mm-100mm |
| Side B core wire stripping length: 1mm-15mm | 1mm-15mm |
| Wire cutting length | 80mm-1000mm (customizable) |
| Processable wire range | OD: 2.0mm-6.5mm |
| Equipment capacity |
500 cycles/hour |
| Air pressure | 0.5-0.7Mpa |
| Air pressure monitoring | Air pressure detection alarm |
| Dimensions | 2300*900mm*1500 (length*width*height) |
| Weight | 450Kg |
