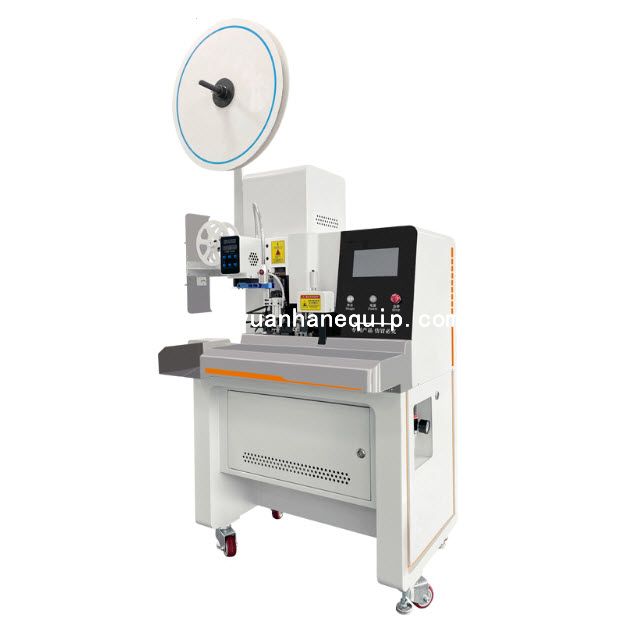

Our servo motor multi-core cable stripping and crimping machine is a highly efficient and reliable solution for all your cable processing needs. This machine is equipped with servo motors that ensure precise and accurate stripping and crimping of multi-core cables.
|
Model:
|
|
|
Brand:
|
|
○ With the ability to handle a wide range of cable sizes and types, our machine is versatile and adaptable to various production requirements. The servo motor technology allows for smooth and consistent operation, resulting in high-quality cable processing every time.
○ The machine is designed with user-friendly controls and a robust construction for long-lasting performance. It is equipped with safety features to ensure the protection of operators and the machine itself.
○ Whether you are working with small or large batches of cables, our servo motor multi-core cable stripping and crimping machine is the perfect solution for increasing productivity and efficiency in your production line.
| Model | YH-DX620L |
| Power supply | 220V~50-60Hz |
| Operation interface | 7-inch touch screen display |
| Processing range | 0-20 core cable 0-20P (depending on the material) |
| Core wire stripping | 0-10mm |
| Outer jacket length | standard 25mm or more/ultra-short wire 6.5mm or more (depending on the material) |
| Stroke | 35mm |
| Crimping machine | 2T cast iron ultra-quiet (servo optional) |
| Applicable molds | multi-core wire horizontal mold/straight mold/ultra-short wire mold/cable mold |
| Productivity | about 8000-12000 terminals/hour (depending on the material) |
| Extended function | stripping outer sheath/flat cable splitting) |
| Optional function | pressure monitoring/visual inspection |
| Auxiliary functions | paper collector, waste cutting, rubber blowing, rubber suction (customization supported) |
| Dimensions | L825*W654*H1400mm (excluding protrusions) |
| Weight | 138kg |
