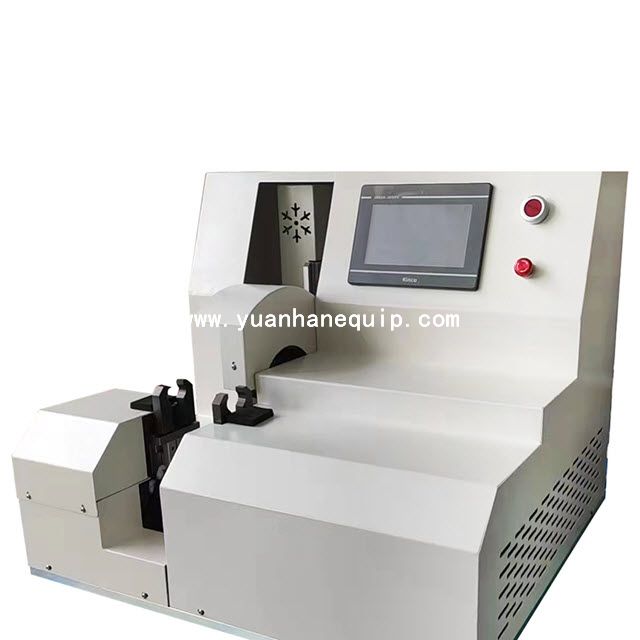

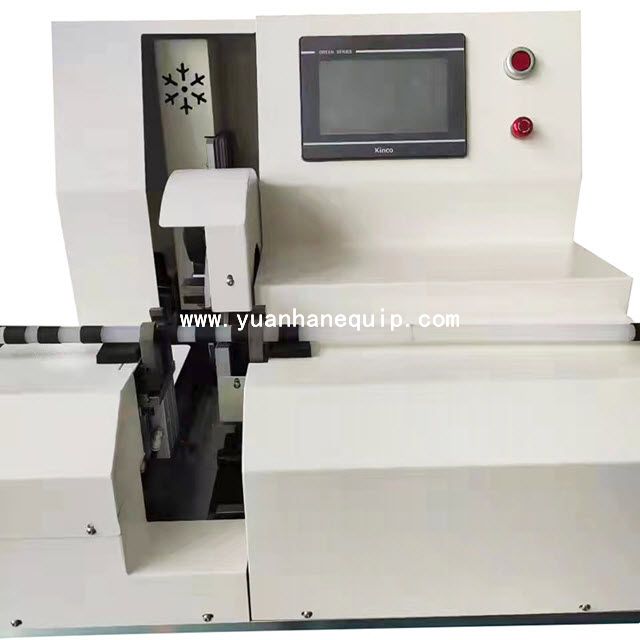

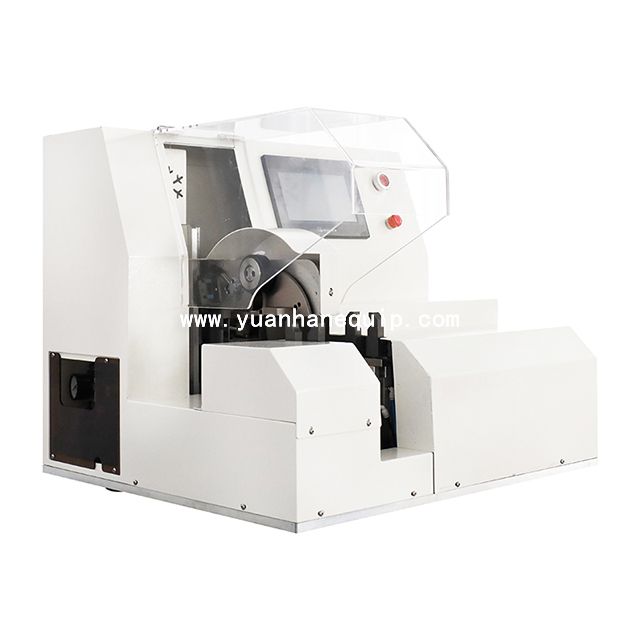

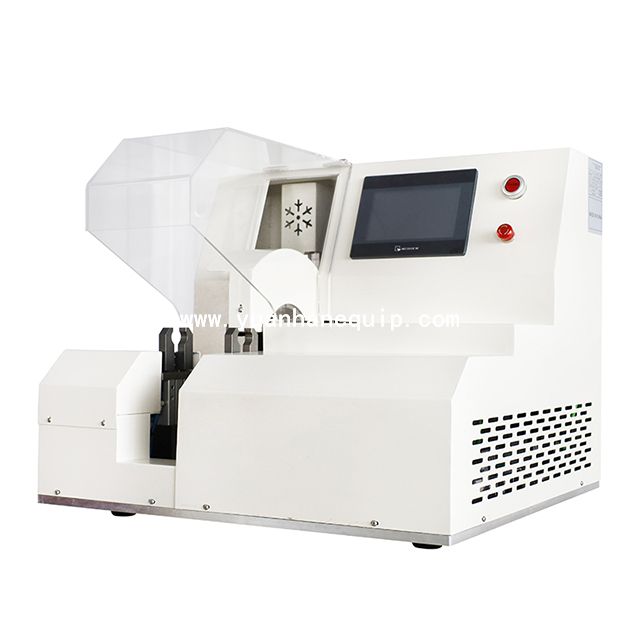

Semi-automatic Spot Tape Wrapping Machine

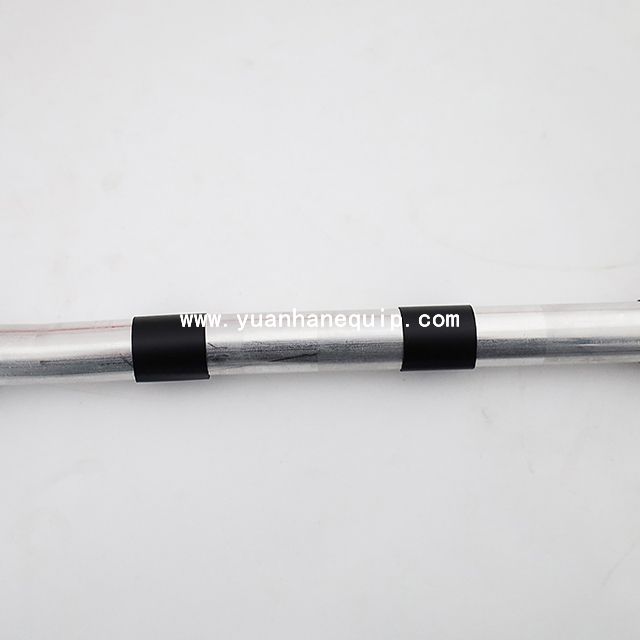

This semi-automatic multi-point tape wrapping machine is suitable for wrapping insulating tape around a single rigid pipe or rigid wire.

Model:	YH-BD305
Brand:	Yuanhan

Inquire

Share to:

Features

Specifications

○ Applicable materials: single rigid pipe or rigid wire.

○ Different wire diameters and taping turns can be adjusted digitally as required.

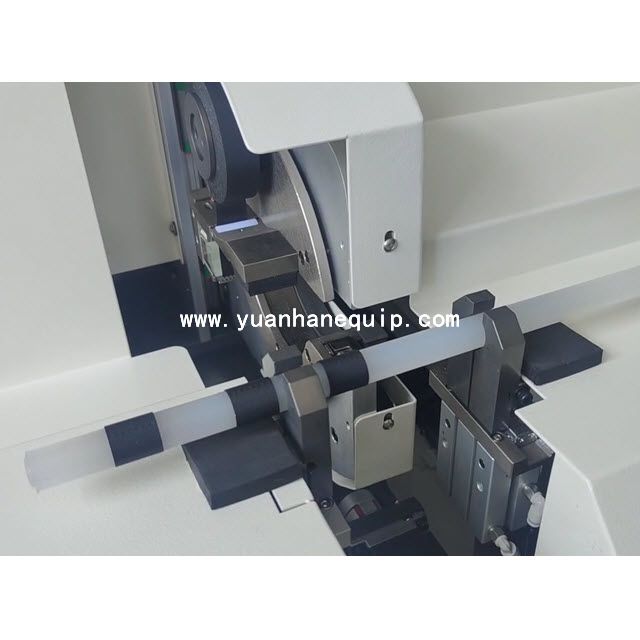

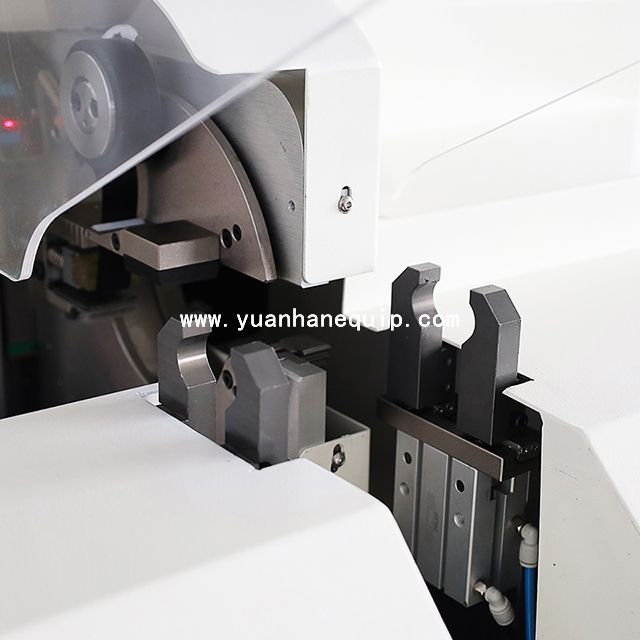

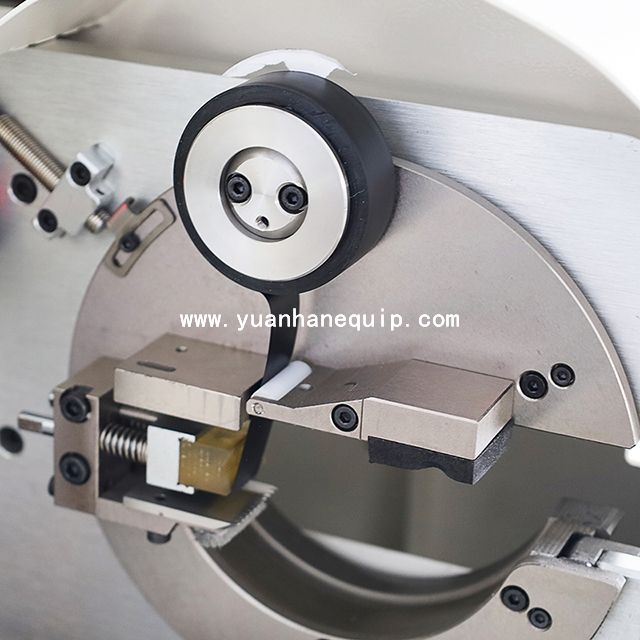

○ After manually placing the pipe/wire, the machine automatically clamps, and automatically cuts off the tape after wrapping.

○ The operation is simple and convenient, which can significantly reduce the labor intensity of workers.

Model	YH-BD305
Working environment	0~40℃(ambient temperature)
Applicable air pressure	0.4 MPa - 0.6 MPa
Power supply	two-phase, AC220V, 50HZ
Power	400W
Working efficiency	6s
Tape material	PVC, cloth tape, acetate cloth tape, etc.
Winding position accuracy	within ±2
Winding overlap	within ±1.5
The length of the workpiece	≥120mm
The diameter of the workpiece	6mm-28mm
Tape width range	≤40mm
The outer diameter of the tape	≤105mm
Distance from the end position	≥30mm
Dimensions	600mm x 650mm x 560mm (LxWxH)
Weight	70 KG
