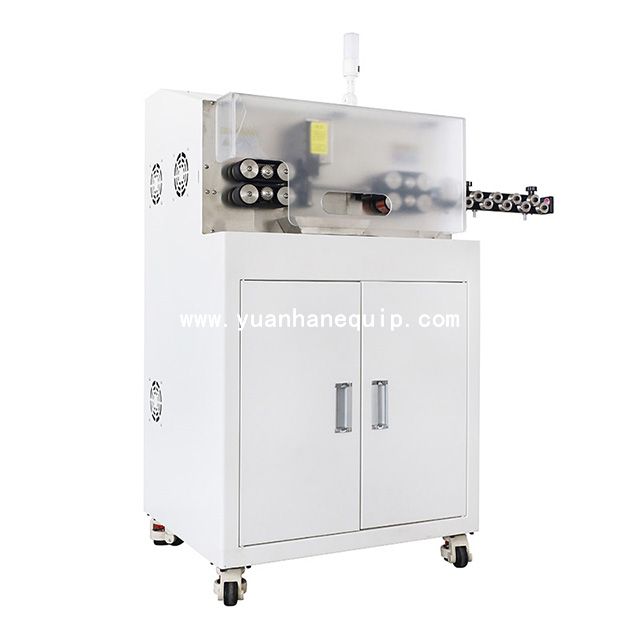

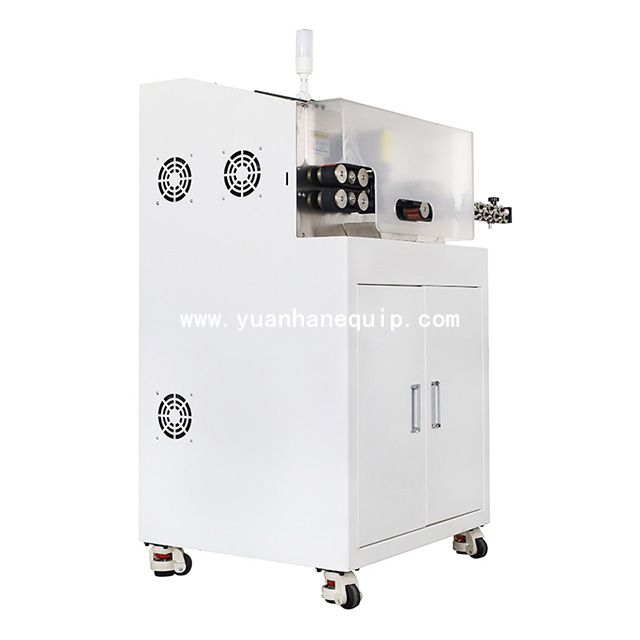

New Energy Cable Cutting and Stripping MachineNew Energy Cable Cutting and Stripping Machine

The new energy cable cutting and stripping machine provides efficient and reliable solutions for various industries. It increases productivity and simplifies your cable processing operation.

Model:
  • YH-B50
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ This machine adopts 12-wheel drive, strong power and double-sided pressing wheels, to ensure the same center point of the wire.

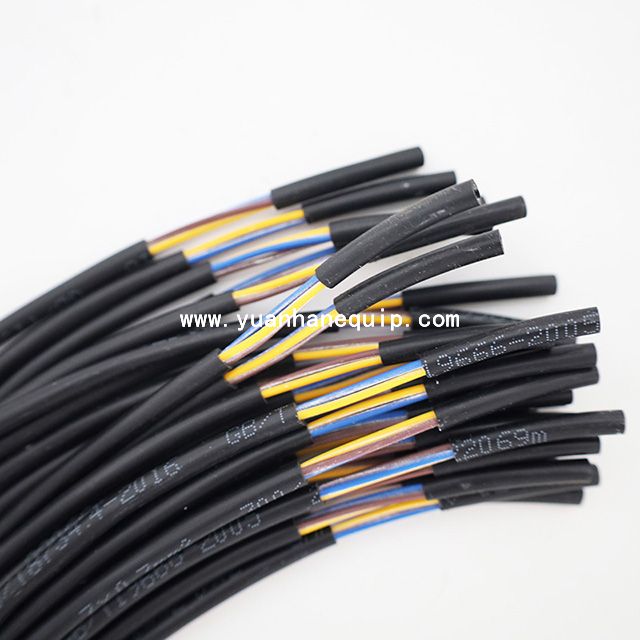

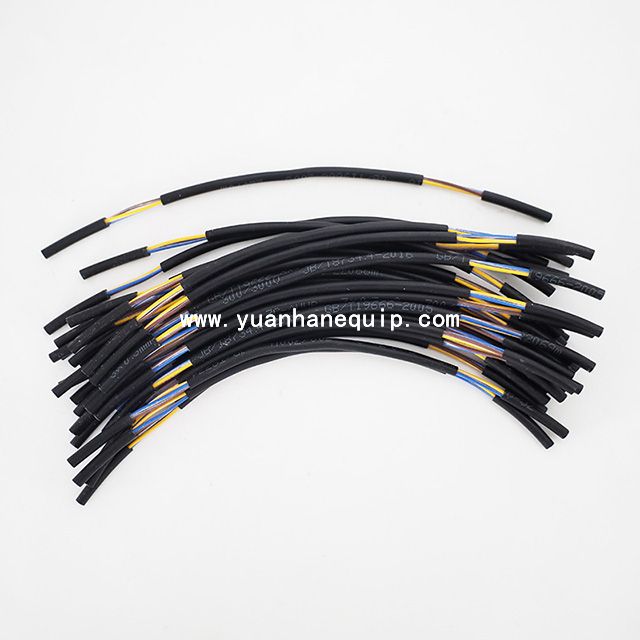

○ The belt feeding system can ensure that the wire surface is not damaged, and it is widely used in the processing of power cables, sheathed wires, and soft and hard wires.

○ The pressing force of the inlet wheel and the outlet wheel can be directly set in the program, without the need to manually adjust the pressure of the wheel. The outlet wheel also has the function of automatic lifting. The outlet wheel can automatically lift up to avoid when the wire is stripped. Therefore, the stripping length range of the wire head is greatly increased. The lifting height of the outlet wheel can also be directly set in the program.

○ Touch screen control, easy to understand, simple training is needed to quickly operate this machine.

○ The machine features three-layer stripping ability. Also, when the stripping length is a little long, it can be stripped up to three times.

○ Provides 200 groups of program memory functions, which can store the processing parameters of different wires in different program numbers.

○ It can be equipped with branching jigs, cutting jigs, and inkjet printers.

Model

YH-B50

Display mode

PLC 7-inch color touch screen

Memory function

up to 200 groups of programs can be stored

Applicable wire diameter

multi-strand copper wire, coaxial cable, sheathed cable, etc.

Drive mode

12-wheel drive

Applicable core area

1.5-50mm2

Blade material

imported high-speed steel

Maximum guiding pipe diameter

Ø17mm

Working voltage

220V/50Hz

Cutting length

0-1000 meters

Rated power

800W

Stripping length

wire head: 0-250mm；wire tail: 0-150mm

Minimum length of left insulation

50mm

Cutting tolerance

±(0.002mm*L) (L=cutting length)

Stripping speed

1500-2500 pcs/hour

Weight

105kg

Dimensions

650*550*1100mm
