New Energy High Voltage Cable Cutting and Stripping MachineNew Energy High Voltage Cable Cutting and Stripping Machine

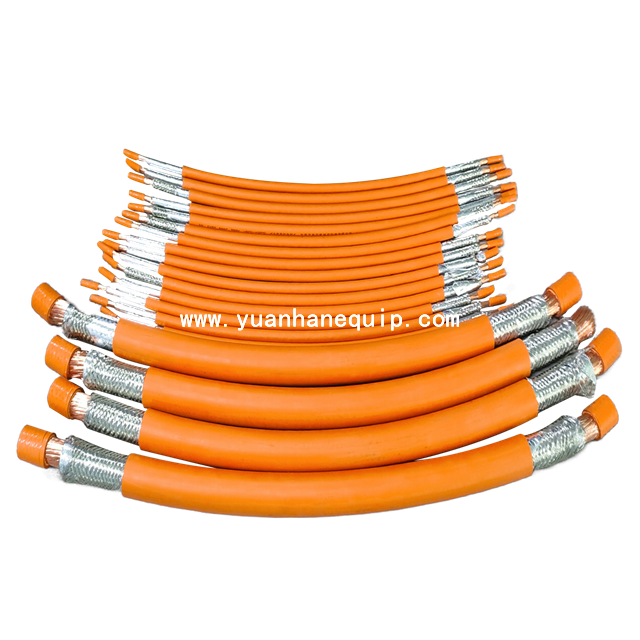

This machine is mainly used for single-layer or multi-layer processing of new energy high-voltage cables, silicone cables, power cables, coaxial cables, multi-core cables and other cables. By automating the cutting and stripping process, our machine significantly reduces labor costs and eliminates human error, ensuring a seamless and reliable operation.

Model:
  • YH-B9615
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Enhanced Efficiency and Precision
Our cutting and stripping machine is meticulously crafted to deliver unparalleled efficiency and precision. Equipped with cutting-edge technology, it guarantees accurate and consistent cable processing, minimizing waste and maximizing productivity.

○ Unmatched Versatility
Designed to cater to a wide range of high voltage cables used in the new energy industry, our machine offers unmatched versatility. Whether you are working with XLPE, EPR, or other specialized cables, our equipment can handle various insulation materials with ease. Its adjustable settings allow for precise customization, ensuring optimal results for every cable type and size.

○ Safety and Reliability
At our company, safety and reliability are paramount. Our High Voltage Cable Cutting and Stripping Machine is built with the highest quality materials and adheres to stringent safety standards. Equipped with advanced safety features, such as emergency stop buttons and protective shields, it guarantees operator well-being and minimizes the risk of accidents. Additionally, our machine undergoes rigorous testing to ensure its durability and long-term reliability, providing peace of mind to our customers.

○ User-Friendly Interface
We understand the importance of user-friendly equipment, and our machine excels in this aspect. Featuring an intuitive interface, operators can easily navigate through the various functions and settings. The clear display provides real-time feedback, allowing for quick adjustments and troubleshooting. With minimal training required, our machine empowers operators to efficiently handle cable cutting and stripping tasks, enhancing overall productivity.

Model YH-B9615
Display mode touch screen
Applicable wires new energy wires, power wires, power wires, coaxial wires, multi-core wires, etc.
Cutting capacity 50mm-99999mm
Cutting wire diameter range 2mm-15mm
Stripping length right end: max 160mm, left end: max 130mm
Cutting accuracy ±0.5MM+total length*1‰
Stripping accuracy ±0.3mm
Cutting depth setting unit 0.01mm
Maximum number of stripping layers 6 layers
Working power supply AC220V/110V 50/60HZ
Air pressure 0.4-0.6 MPa
Dimensions 1000*600*1350mm
Power 2.5KW
Driving method servo motor\ball screw drive\pulley wire feeding
Stripping method rotating blade + cutting and stripping blade
Tool material imported tungsten steel + imported high-speed steel
Working environment -5-45 degrees, dry and vibration-free work surface
Storage capacity 99 sets of data
Production efficiency 400-700pcs/h (depending on the material)
Other functions

Multiple communication ports are reserved and can be linked to the MES system.

Can be linked to external take-up machines, winding machines and other functional equipment.

×
