Double-end Piercing Housing Connector Assembly Machine
Double-end Piercing Housing Connector Assembly Machine
Double-end Piercing Housing Connector Assembly Machine
Double-end Piercing Housing Connector Assembly Machine

Double-end Piercing Housing Connector Assembly MachineDouble-end Piercing Housing Connector Assembly Machine

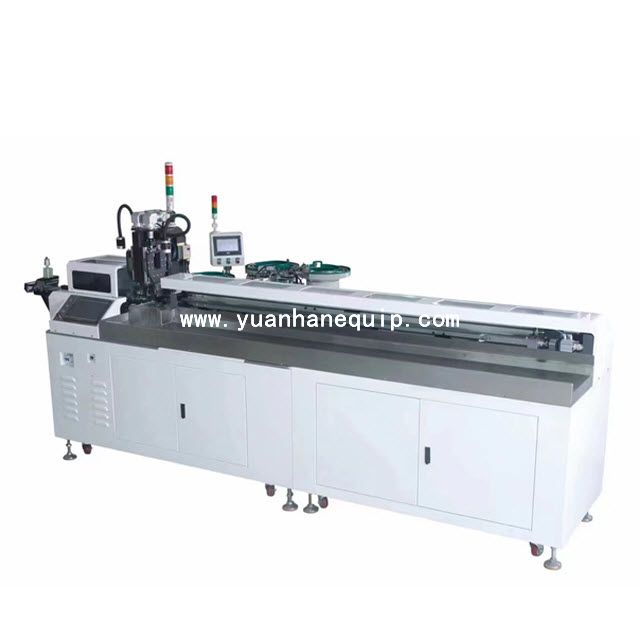

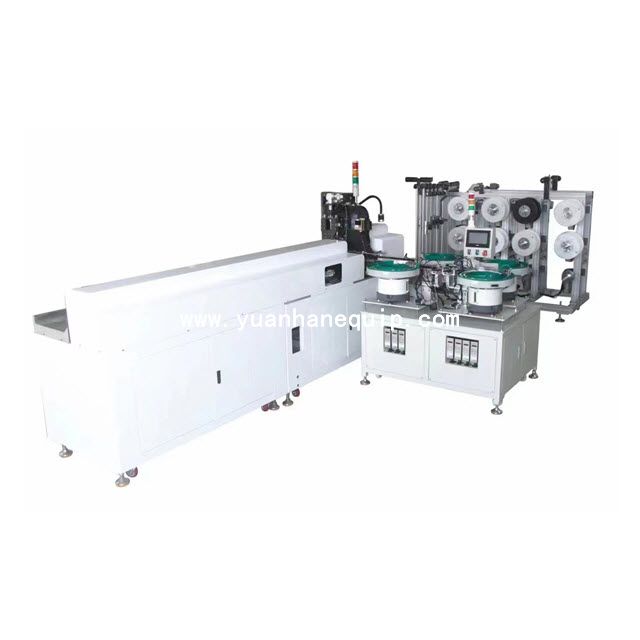

The double-end piercing housing connector assembly machine is widely used in fully automatic wire harness production.

Model:
  • YH-CPC200
Brand:
  • Yuanhan
Inquire
Share to:
Features
Specifications

○ Computer controlled blade adjustment
○ One-to-many processing of different cable lengths and different connectors Motor: Mitsubishi Servo
○ Slide rail: Taiwan HiWin
○ Operation screen: KINCO10 inches
○ Pneumatic components: Taiwan AirTAC

Model YH-CPC200
Capacity crimping at both ends 5.5 seconds/wire
Speed 28,000 crimps/hour (wire length=200mm)
Wire length 80-2000mm
Tangent accuracy ±0.1mm
Detection function air pressure detection, feeding detection
Power supply single-phase AC220V 50/60HZ
Air source 5.0-6.5kgf (clean and dry air is required)
Dimensions length 3700* width 800* height 1700 (mm)
