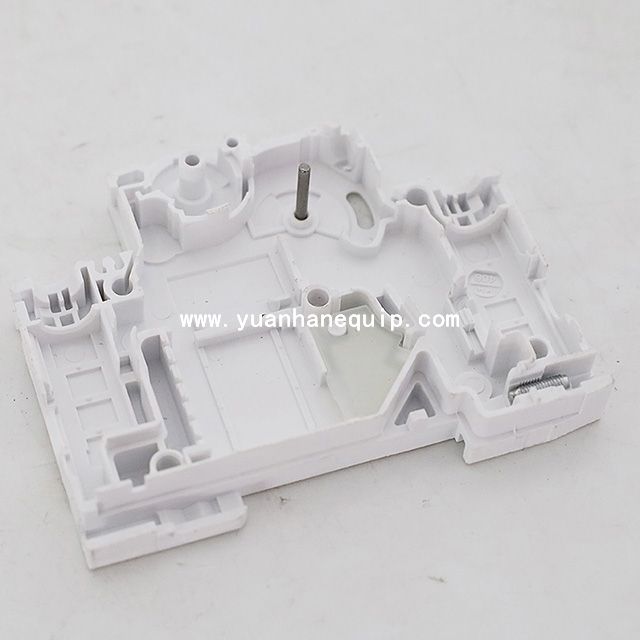

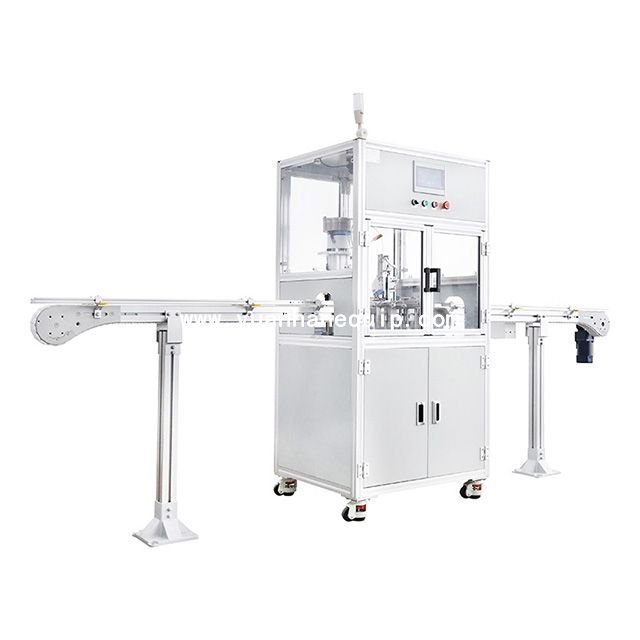

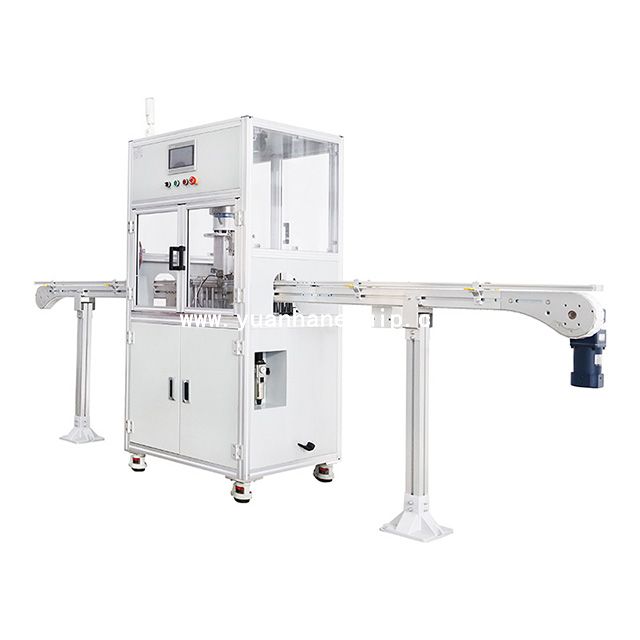

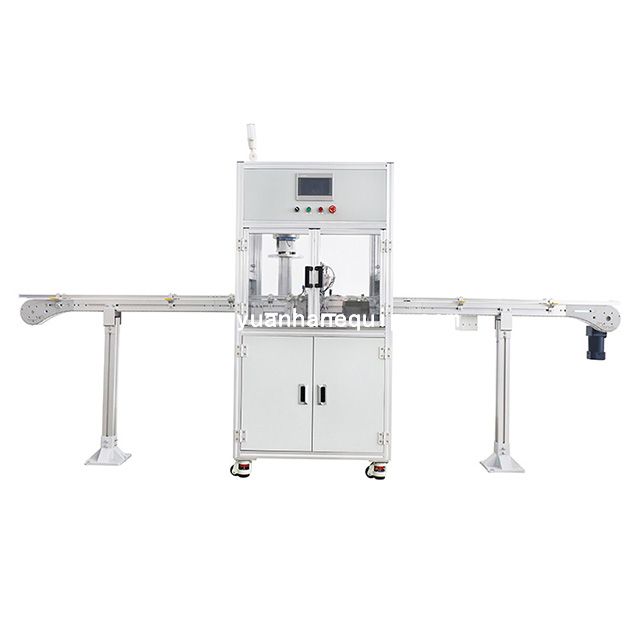

This customized automatic pin insertion machine is specially developed for circuit breaker housing pin assembly. It integrates automatic feeding, positioning, pin insertion, detection, discharging and defective product rejection, enabling full-automatic cyclic production.
|
Model:
|
|
|
Brand:
|
|
○ Manual and automatic modes are switchable on the HMI panel. Equipped with an intelligent control system, the machine supports counting, data storage, monitoring, self-diagnosis, fault alarm and power-off protection, auto-stopping and alarming for stable & safe production.

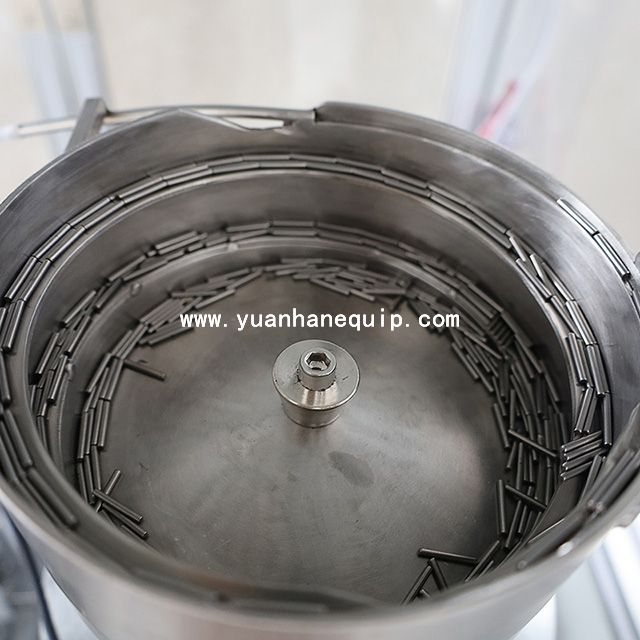

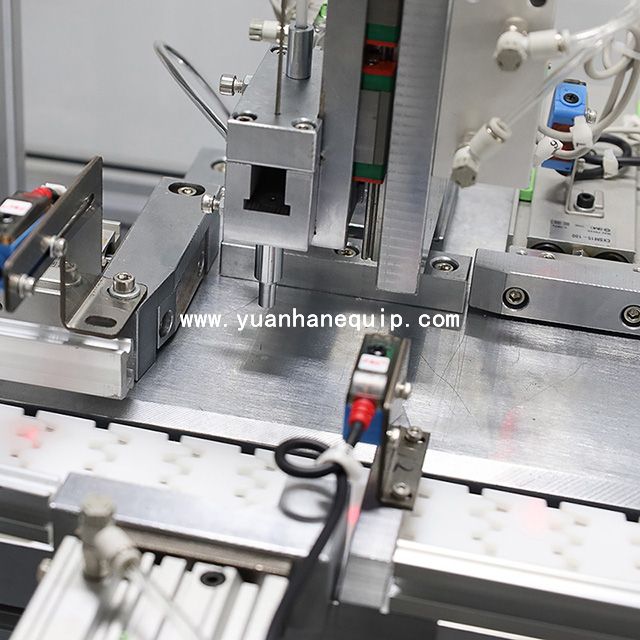

○ It runs fully automatically: After feeding breaker housings and pins, the equipment completes housing sorting, positioning and precision pin insertion via turntable. Real-time inspection separates qualified and defective products.
○ The stable plate chain conveyor has a 750mm standard height with ±50mm adjustment range. An emergency stop button is provided; insulation resistance ≥5MΩ meets industrial safety requirements. The touch screen saves production data for 30 days and adopts two-level user authority management to prevent misoperation.
|
Model |
YH-LZP11 |
|
Operation Mode |
Manual / Automatic switchable via HMI touch panel |
|
Control System |
Full intelligent control system, supporting real-time monitoring, self-diagnosis, fault alarm, power-off data memory and power-off protection |
|
Working Process |
Automatic feeding, sorting, positioning, precision pin insertion, real-time inspection, qualified product discharging and defective product rejection |
|
Conveyor Type |
Stable plate chain conveyor |
|
Conveyor Height |
Standard: 750mm, adjustable range: ±50mm |
