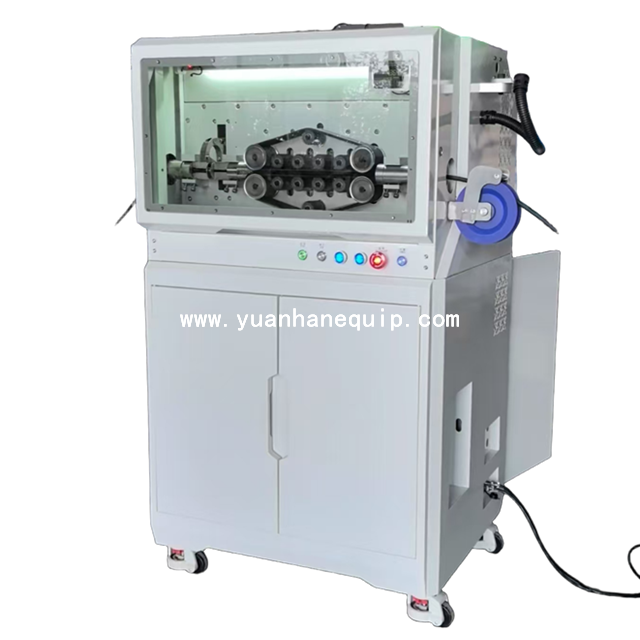

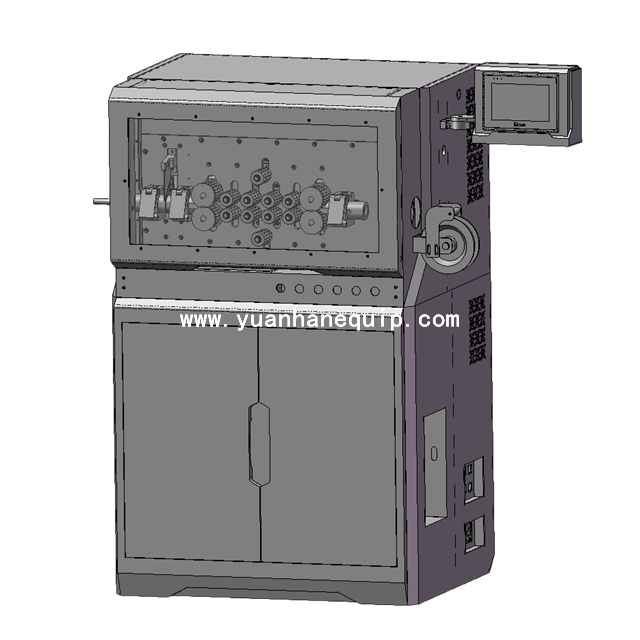

Our multi-function pipe cutting machine is designed to provide precise and efficient fixed-length cutting of various plastic pipes. This cutting machine is equipped to handle a wide range of pipes, including trachea, low-pressure oil pipe, PVC pipe, and heat shrink pipe with ease and accuracy.
Model:
|
|
Brand:
|
|
○ With its advanced technology and high-quality materials, our pipe cutting machine ensures clean and uniform cuts every time, making it ideal for industrial applications where precision is paramount. The machine is easy to operate, with user-friendly controls that allow for quick adjustments to accommodate different pipe sizes and cutting requirements.
○ Whether you are working with trachea, low-pressure oil pipe, PVC pipe, or heat shrink pipe, our multi-function pipe cutting machine is the perfect solution for your cutting needs. Invest in this reliable and versatile tool to streamline your pipe cutting processes and achieve professional results every time.
Model | YH-570 |
Display mode | 7-inch human-machine interface |
Processing range | 4-50mm |
Cutting length | 1mm-999999.99mm |
Cutting tolerance | within 0.003*L (L=cutting length) |
Maximum diameter | Φ52 |
Productivity | 4000 PCS/hour (100mm/φ 10mm) |
Drive mode | 14-wheel drive; servo motor optional |
Feeding mode | Belt feeding, no embossing or scratching of pipes. |
Tool holder control mode | Servo motor + grinding screw |
Special features | The upper limit position of the tool holder is digitally adjustable, and the lower limit position of the tool holder is digitally adjustable. |
Lifting operation mode | Digital adjustment of the pressure wheel height |
Power supply | AC220V 50/60Hz; optional 110V 50/60Hz |
Dimensions | 950*670*1300(length*width*height) |
Net weight | 145kg |
