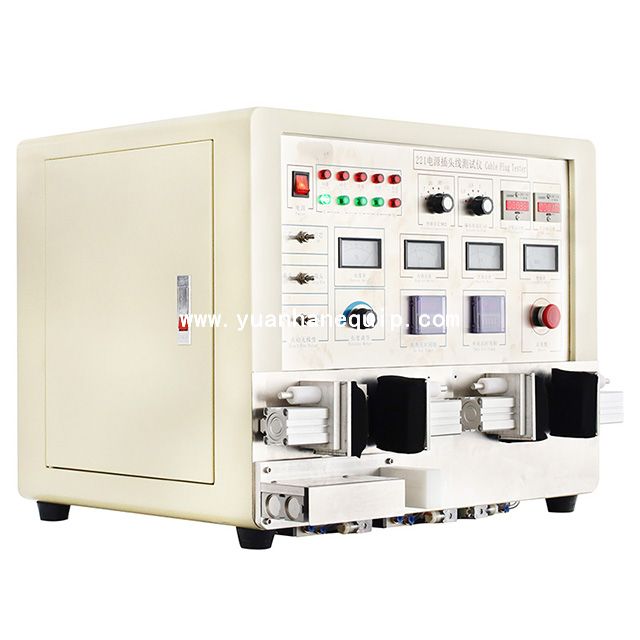

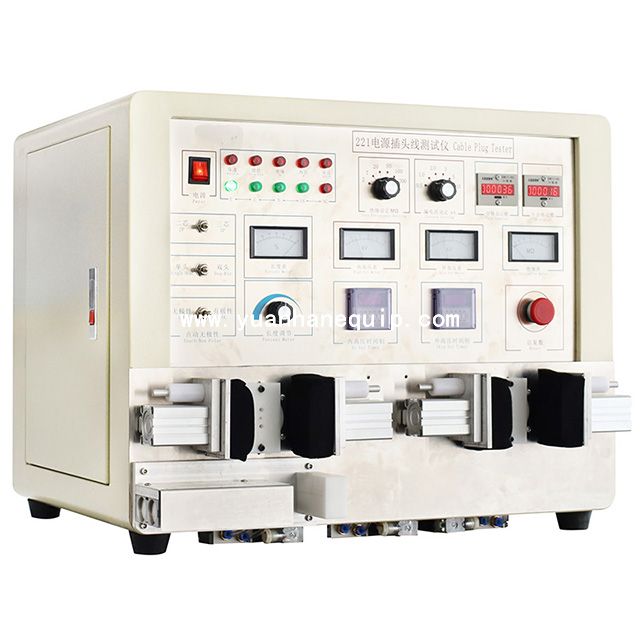

Power Plug Double-head TesterPower Plug Double-head Tester

This machine is used to detect the conductive polarity, insulation, core voltage, exposed copper and relative length of power plug wires. It complies with UL, VDE, CSA, SAA, T-MARK, KS, IRAM, CCC and other standards.

Model:
  • YH-221
Brand:
  • Yuanhan
Share to:
Features
Specifications

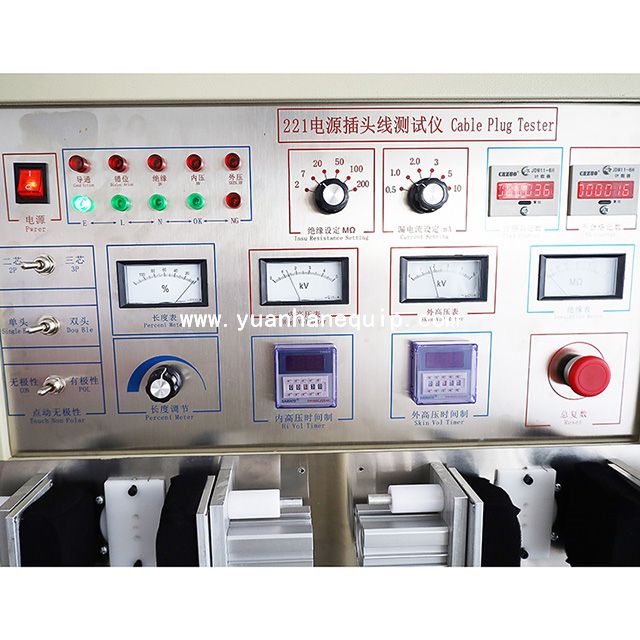

○ Use Panasonic PLC control

○ Test wire type: single head: 2P non-polar, 2P click non-polar, 2P polarized, 3P non-polar,

○ 3P polarized double head: 2P non-polar, 2P parallel wire, 2P cross wire, 3P parallel wire, 3P cross wire

○ Counting function: automatic counting and ejection function of qualified products and defective products

○ Qualified products are automatically ejected and qualified marks are printed; defective products are automatically mold-locked and have sound and light alarms.

Model YH-221
Insulation voltage DC 500V
insulation cathode resistance 2, 5, 20, 50, 100, 200MΩ six levels
Internal high voltage AC 0-5KV continuously adjustable
Leakage current 0.5, 1.0, 1.5, 2.0, 3.0, 5.0, 10, 20mA
External high voltage AC 0-5KV/1.5mA continuously adjustable
Wire sensitivity ≥10pF
Test time insulation, internal and external high voltage time can be set arbitrarily
Air pressure ≤ 4Kgf/cm2

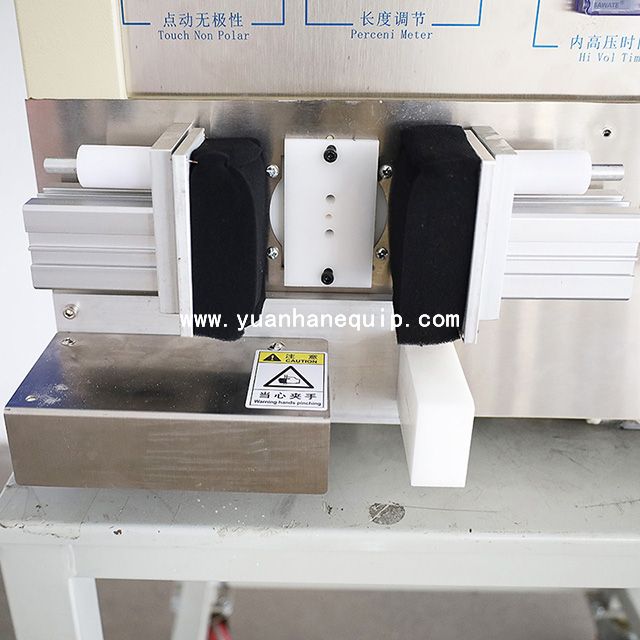

Note 2 jigs are included as standard



×
