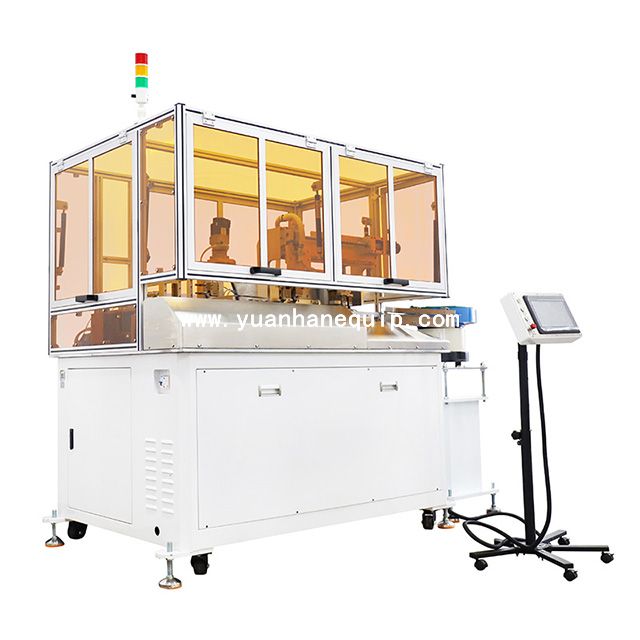

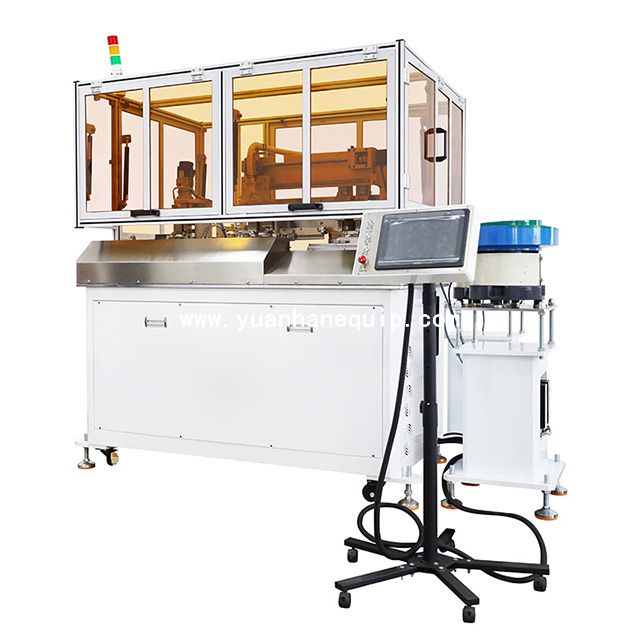

The fully automatic prick type terminal crimping machine is a highly advanced piece of equipment designed specifically for efficiently attaching terminals to wires. Utilizing state-of-the-art technology, this machine enhances productivity in various manufacturing processes, particularly in the automotive and electronics industries where precise connections are crucial.
|
Model:
|
|
|
Brand:
|
|
○ Automation
- The fully automatic design minimizes human intervention, allowing continuous operation and significantly reducing labor costs.
- Integrated software governs the entire crimping process, ensuring consistent results and high production rates.
○ Precision Crimping
- The prick type mechanism ensures precise alignment and secure attachment of terminals, preventing slippage or disconnection.
- Adjustable crimping force settings allow the machine to work with a variety of terminal types and wire gauges, accommodating different production needs.
○ User-Friendly Interface
- An intuitive touchscreen interface simplifies operation, allowing users to set parameters easily and monitor production in real-time.
- Error detection and reporting features help identify any faults in the crimping process, ensuring high-quality output.
○ Versatile Applications
- Suitable for crimping a wide range of terminals used in various applications including automotive wiring harnesses, household appliances, and electronic devices.
- Capable of processing different wire sizes, making it adaptable to multiple production lines.
○ Safety Features
- Equipped with safety guards and emergency stop functions to protect operators during use.
- Regular maintenance alerts help ensure the machine remains in optimal working condition, extending its lifespan.
| Model | YH-CP300 |
| Power supply | AC 220V 50Hz |
| Air pressure | 0.5MPa |
| Power | 1500W |

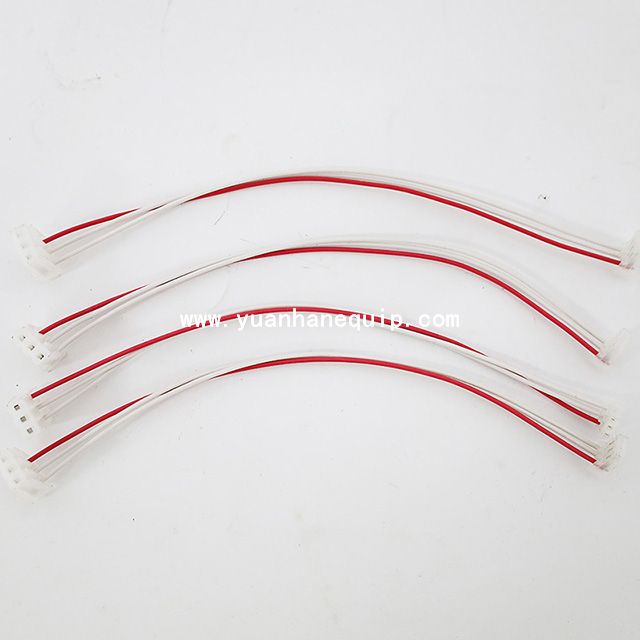

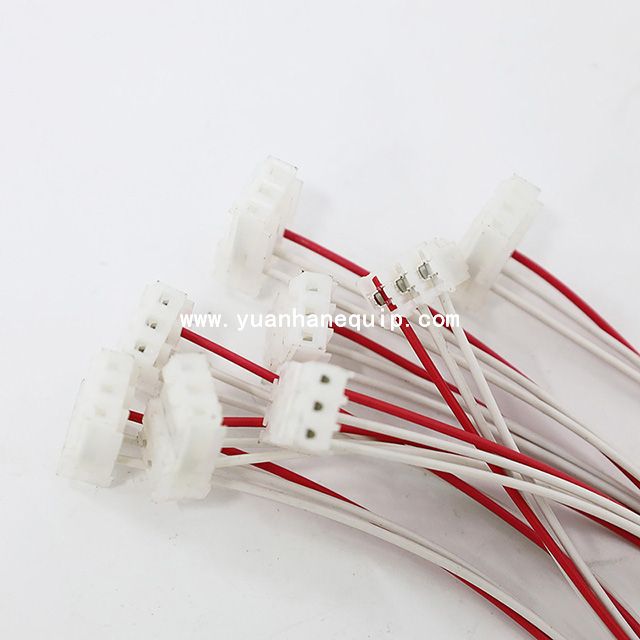

| Function | wire cutting, single-end piercing crimping, double-end piercing crimping |
| Productivity | 600 cycles/hour (depending on the length of the wire and the number of PIN positions) |
| Detection function | abnormal induction of each part/crimping abnormality (optional)/air pressure abnormality/motor abnormality |
| Wire range | AWG30-AWG18/special wire can be customized |
| Total cutting length | 30mm-650mm(double-end piercing) |
| Crimping machine | Mitsubishi servo motor crimping |
| Motor |
Mitsubishi servo motor (5 sets) |
| Dimensions | length 2100mm width 800mm height 1400mm (excluding wire unwinding machine) |
| Weight | 420KG (including vibration plate) |
