Real-time Printing Half-fold Labeling MachineReal-time Printing Half-fold Labeling Machine

This is a real-time printing and half-fold labeling machine. This machine is used to apply labels, barcodes, etc. to cables and wires. It is widely used in electronics industry, wire and cable industry, food and other industries.

Model:
  • ZCUT-RT430
Brand:
  • Yuanhan
Share to:
Features
Specifications

○ Function: real-time printing and flag labeling

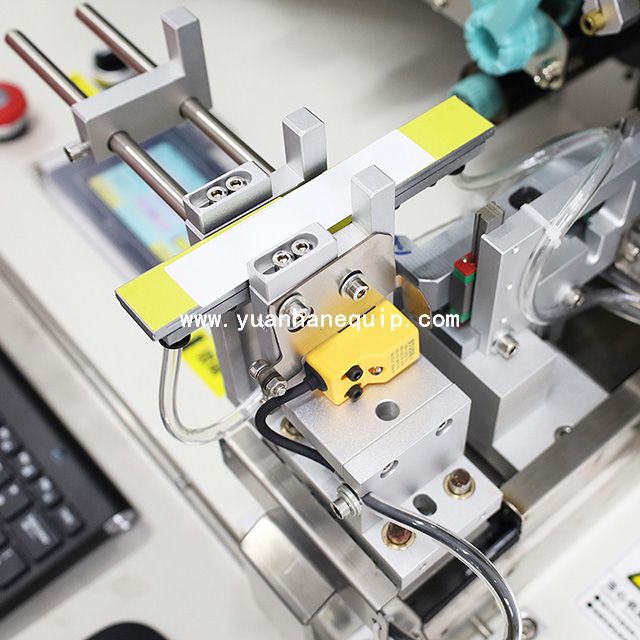

○ German SICK label electric eye quickly senses the label gap to complete labeling and complete the identification;
○ Reasonable mechanical structure design ensures smooth and stable label delivery;
○ Convenient application, can be adjusted in a wide range, realize the folding and labeling of different specifications of wire harness products;
○ You don’t need to twist the screws to adjust the machine, just input the label size and wire diameter directly on the display.
○ The labeling effect is good, the labeling efficiency is high, the operation is convenient, and the material belt is easy to replace. It is suitable for labeling various specifications of cables.
○ Applicable industries: electronics, wire, electrical appliances, electromechanical,
○ Applicable wires: earphone cable, USB cable, power cord, air pipe, water pipe, etc.;
○ Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.;

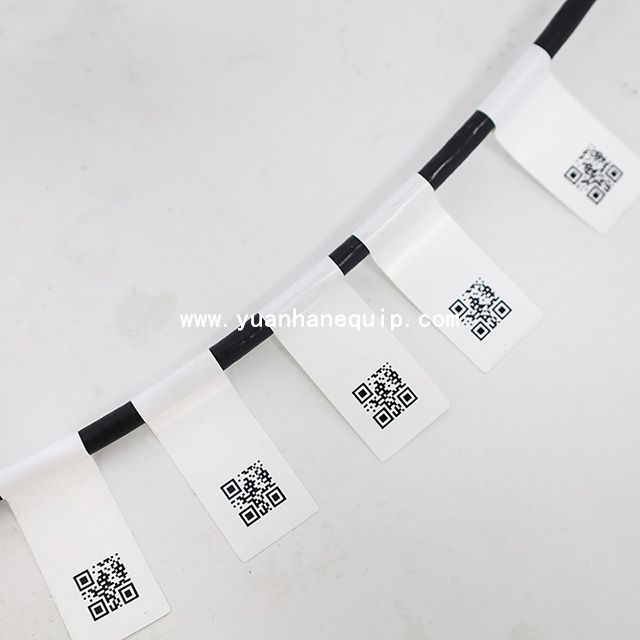

○ Application examples: headphone cable labeling, power cord labeling, optical fiber cable labeling, cable labeling, tracheal labeling, warning label labeling, etc.

Model ZCUT-RT430
Applicable wire range

φ0-3.5,φ3.0-5.5,φ4.0-10mm, need to customize exceeding 10mm

Labeling accuracy ±0.2 (excluding product and label errors)
Labeling speed 1500-1800pcs/H(depending on label size and manual operation speed)
Applicable product size all kinds of round wires, flat wires, water pipes and other product
Applicable label size standard model length: 20mm~180mm (need to customize beyond the scope)
Applicable label size standard model width: 5mm~45mm; (need to customize beyond the scope)
Equipped with standard positioning ruler 200mm (need to customize beyond the scope)

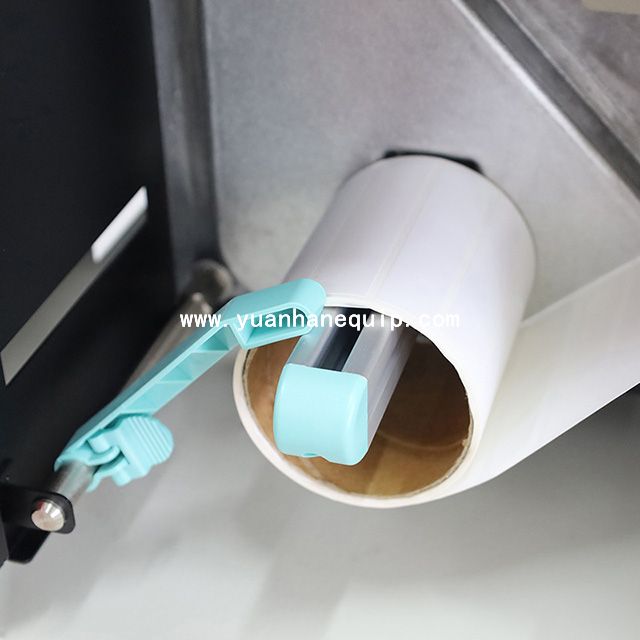

Max label roll outer diameter 240mm
Max label roll inner diameter 76mm
Dimensions about 580mm*680mm*1000mm (length*width*height)
Weight about 86kg
Power supply 220V/50HZ, 0.25KW
Air pressure 4-6bar
Relative humidity (20-90)%RH
Ambient temperature +5-+40℃
×
