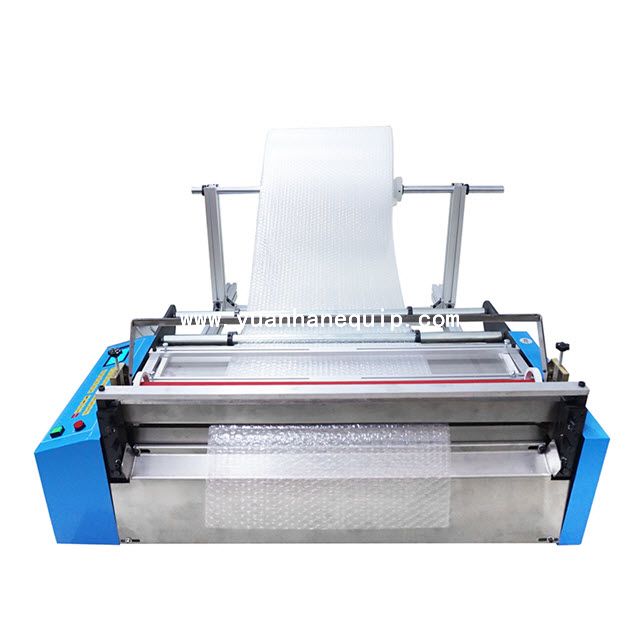

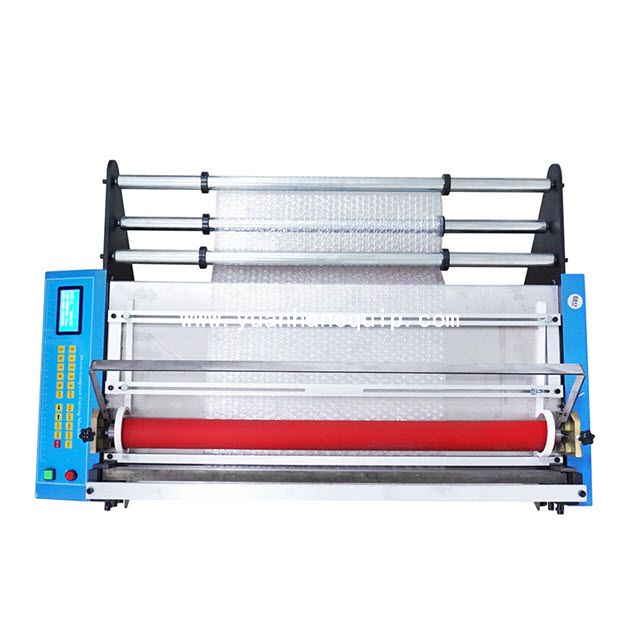

Roll to Sheet Cutting Machine for Bubble Film

This fully automatic roll to sheet cutting machine is suitable for cutting of various tubular and banded materials, such as bubble film, plastic sheet, heat shrink tubes, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.

Model:
  • ZCUT-700S
Brand:
  • Yuanhan
Share to:
Features
Specifications

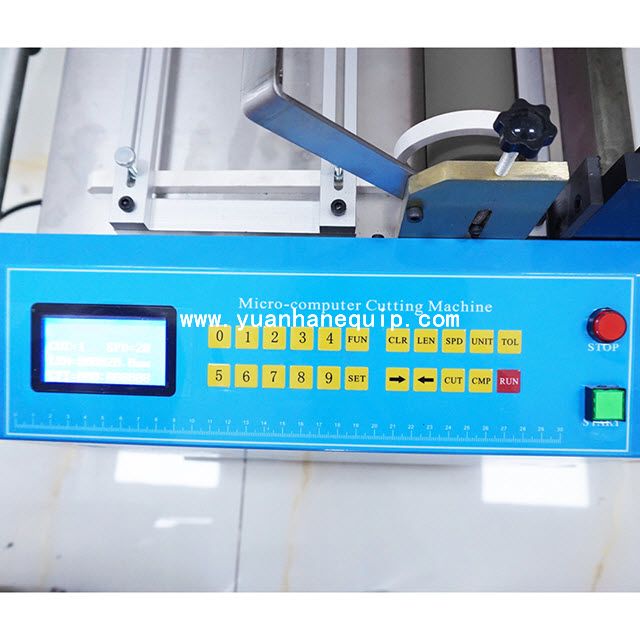

  • High-speed feeding, microcomputer program control, accuracy up to 0.1mm;

  • High efficiency and high accuracy: up to 150 times per minute;

  • Cutting type: Cold cutting with a durable cold knife;

  • Fully automatic cutting of various tubular and banded materials;

  • Suitable for cutting heat shrink tubes, fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, cables and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.

  • Automatic operation: It works automatically only by setting length and quantity;

  • Automatic stopper: It stops automatically if materials run out during operation;

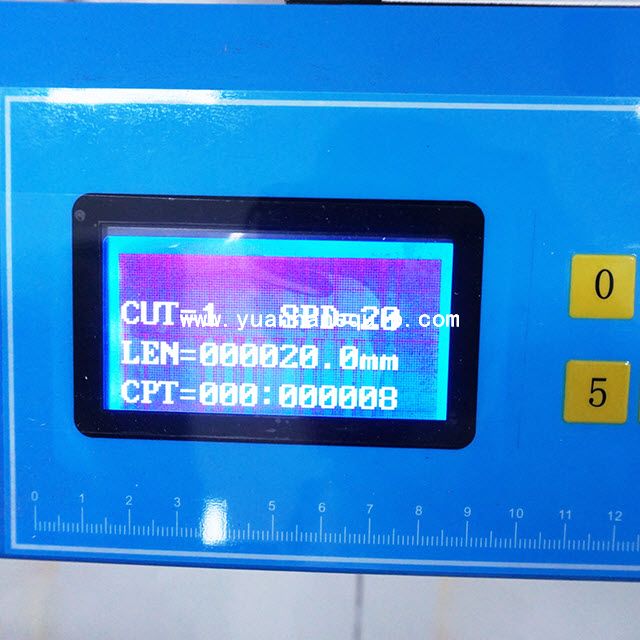

  • Memory function: the previously set length, quantity and speed will not be erased even if power off & on;

  • We supply different models to fit your requests.

Model ZCUT-400S ZCUT-500S ZCUT-600S ZCUT-700S
Cutting length (mm)  1mm-99999mm  1mm-99999mm  1mm-99999mm  1mm-99999mm
Cutting accuracy (mm) 0.1mm 0.1mm 0.1mm 0.1mm
Max cutting width (mm) 1-400mm  1-500mm  1-600mm  1-700mm
Cutting speed(p/min)  150 150 150 150
Knife max temperature (C) cold knife  cold knife  cold knife  cold knife
 Voltage/ frequency(V/Hz) 110V/220V50/60 110V/220V50/60 110V/220V50/60 110V/220V50/60
Rating Power(W)  1800W 2000W 2200W 2500W
Size(mm)  (L)430×(W)620×(H)480 (L)430×(W)810×(H)480 (L)650×(W)910×(H)480 (L)650x(W)1010x(H)480
Weight(NW) 50kg 60kg 65kg 70kg
×
