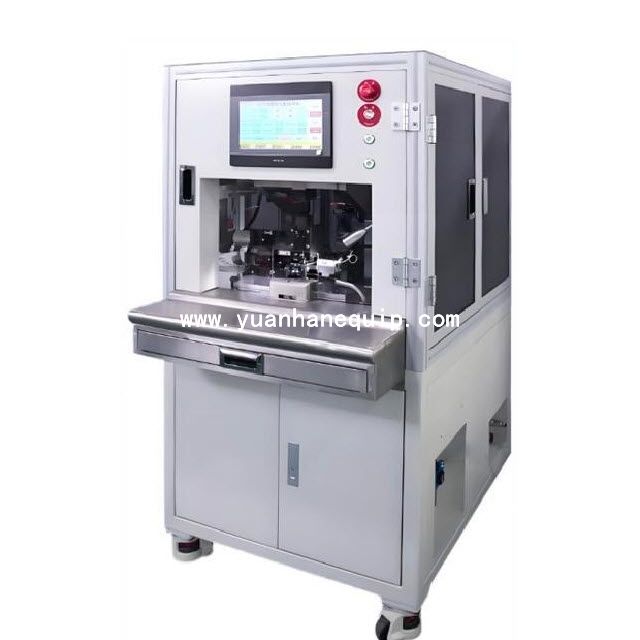

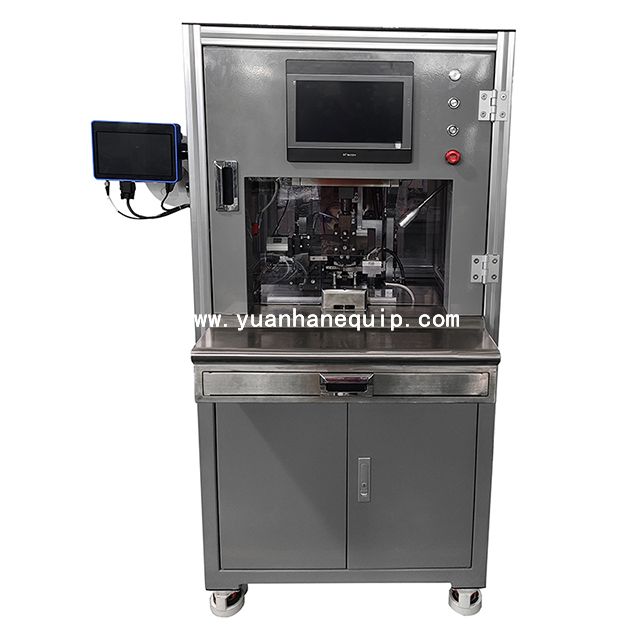

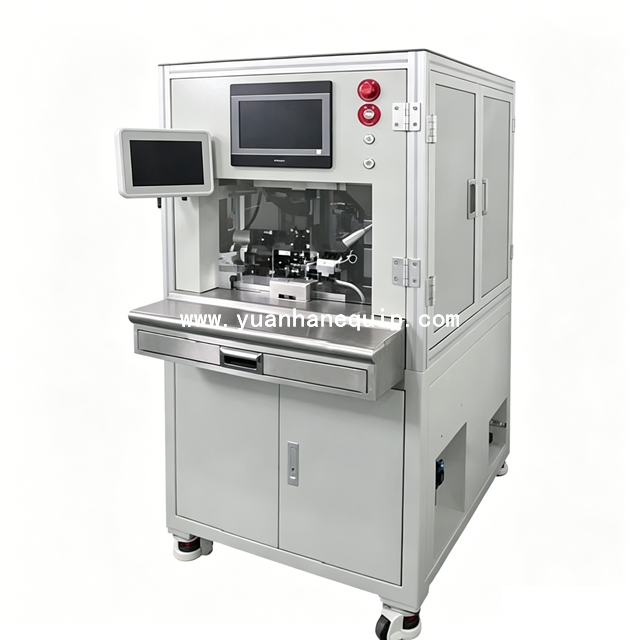

Our rubber seals inserting and crimping machine is a versatile and efficient solution for inserting and crimping rubber seals onto various products. This machine is designed to streamline the production process by automating the insertion and crimping tasks, saving time and labor costs.
|
Model:
|
|
|
Brand:
|
|
○ The stripping length is adjustable.
○ The sealing plug penetration depth is adjusted based on the glue position between the stripping edge and the sealing plug.
○ The end capping depth is also adjustable based on the crimping line position.
○ The terminal machine is driven by a high-efficiency servo motor, ensuring high-speed punching and stable pressure.
○ The stripping slide is driven by a screw, ensuring accurate stripping length.
○ The cutting mechanism is driven by a motor and screw, ensuring accurate stripping length.
○ The sealing plug feeding mechanism is simple and easy to change, meeting customer requirements for a wide range of products and varieties.
○ This machine is easy to operate, offers stable quality, and features centralized workstations.
|
Model |
Technical Parameters |
YH-FS861 |
|
Overall Dimensions |
Main body: Square tube + sheet metal |
L1100×W700×H 1460mm (excluding two - color light) |
|
Equipment Weight |
Single machine |
360Kg/unit |
|
Working Air Pressure |
0.4 - 0.8Mpa |
|
|
Working Environment |
0°C - 50°C |
|
|
Working Voltage |
220V±10V |
|
|
Total Power |
2500w |
|
|
Wire Length |
100 - 1000mm |
|
|
Wire Type |
Single wire/Double wire |
|
|
Wire Stripping Length |
1 - 10mm |
|
|
Wire Head Processing Length |
Between 2 - 10mm |
|
|
Inner Wire Diameter Size |
Between 0.8 - 3mm |
|
|
Beat |
1200 - 1800Pcs/hour |
Varies according to manual operation |
|
Yield Rate |
≈97% |
Except for product self - defects |
|
Riveting Precision |
±0.08mm (riveting position) |
Except for product self - defects |
|
Detection Precision |
±0.02mm (CCD self - inspection precision) |
Except for product self - defects |
|
Machining Material |
Conventional 45# steel + 6061 alloy |
Except for special cutters and structures |
|
Outer Frame Material |
Iron square tube + sheet metal (conventional Q235) |
Except for perspective windows |
