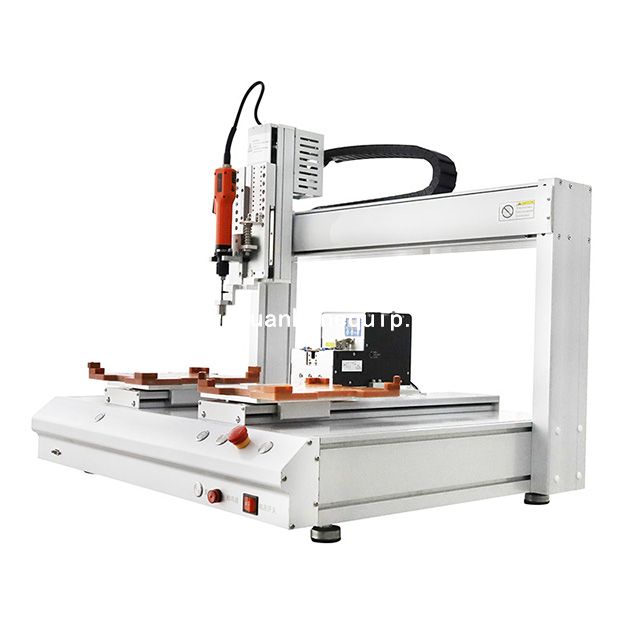

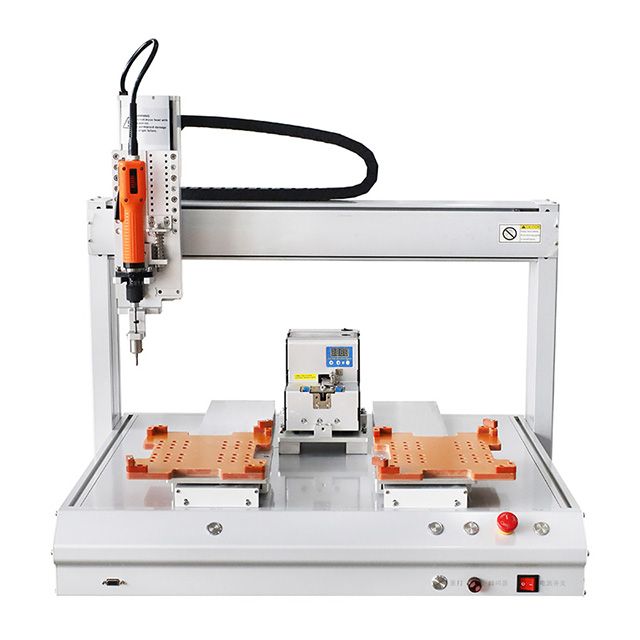

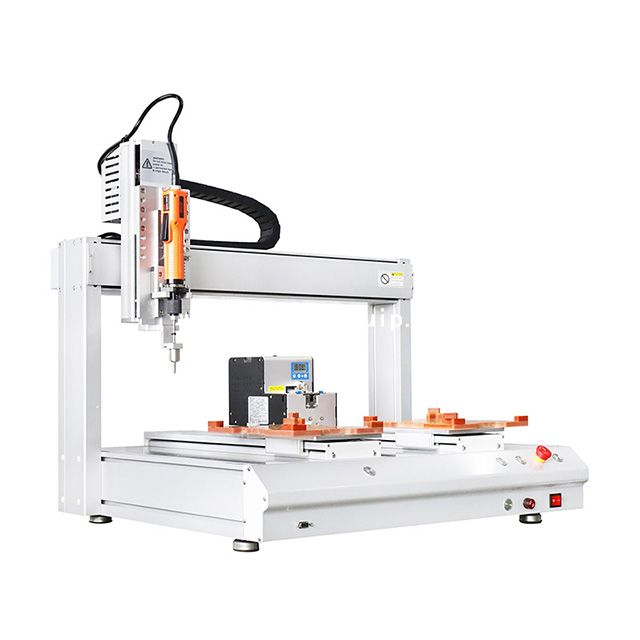

This 4-axis dual Y-axis automatic screw tightening machine uses adsorption locking structure, ideal for mass assembly of electronics, plastic and hardware products.
|
Model:
|
|
|
Brand:
|
|
○ Fitted with imported premium core components, it delivers stable operation, 0.025mm positioning accuracy and 0.02mm repeat accuracy.

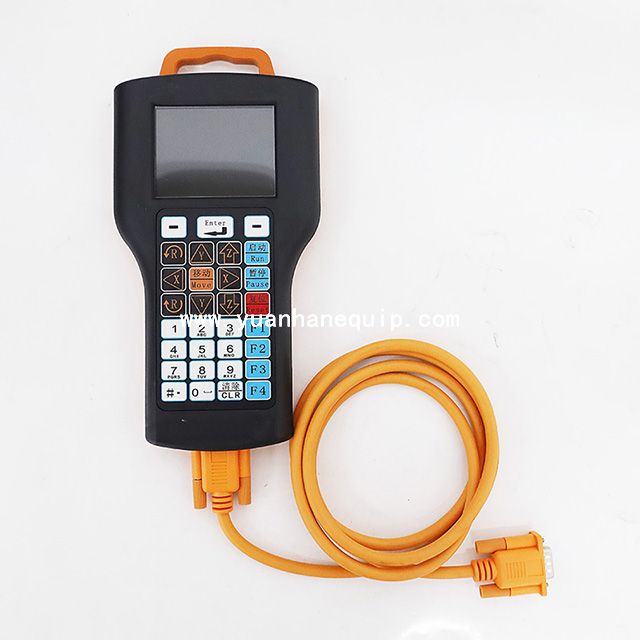

○ Equipped with a handheld teach pendant and 4G storage, it supports fast program switching for different workpieces, replacing manual work to greatly boost production efficiency.
|
Model |
YH-LSJ01 |
|
Overall Dimensions |
L800mm × W720mm × H760mm |
|
Working Stroke |
X-axis 600mm, Dual Y-axis 400mm, Z-axis 100mm |
|
Frame Structure |
Taiwan aluminum alloy & high-grade steel profile structure, processed by CNC machining center and sheet metal fabrication |
|
Drive Motors |
X, Y, Z axes adopt Leadshine closed-loop stepper motors; Japan Shinano Kenshi motors |
|
Power Supply |
Taiwan Mean Well power supply |
|
Control System |
4-axis linkage teach pendant motion control system, 4G memory, supports 999 file groups with 999 points per group |
|
Belt & Bearings |
Italy Elatech belt, Japan NSK precision bearings |
|
Photoelectric Switch |
Yijia (stainless steel button type) |
|
Connecting Wires |
High-grade shielded cables (signal wires, power wires) |
|
Control Mode |
JOG (Point-to-point) |
|
Programming System |
Full Chinese HMI, handheld teach pendant programmer |
|
External Interface |
RS-232, AC220V 50Hz |
|

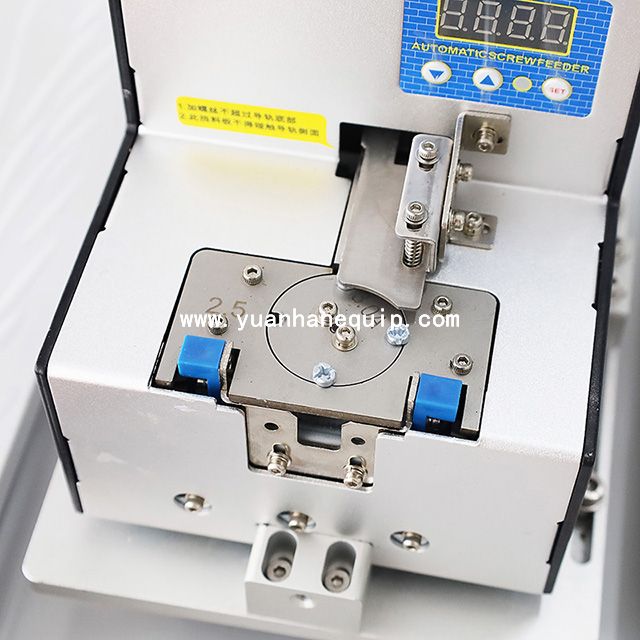

Feeding Method |
Feeder |
|
Locking Head Method |
Adsorption type |
|
Maximum Speed |
800mm/sec |
|
Positioning Accuracy |
0.025mm |
|
Repeatability Accuracy |
0.02mm |
|
Machine Weight |
Approx. 95kg |
|
Working Temperature |
5-50℃ |
|
Maximum Load |
X/Y axis 8kg, Z axis 3.5kg |
|
Standard Accessories |
Handheld teach pendant, serial port cable |
